6"-15.6" Touch Screen (12.3“)

12.3 Inch Bar Capacitive Touch Screen G+G 1920x720 ILI251 Outdoor Waterproof Industrial Vehicle Capacitive Touch Display

  • Part No.:ET123CTP01
  • Size:12.3″ inch
  • Resolution:Optional
  • Panel Interface:I2C,USB
  • Display mode:PCAP
  • Outline Dimension:313.4x135.86mm
  • Active Area:293.32x110.62mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:yes
Get a quote

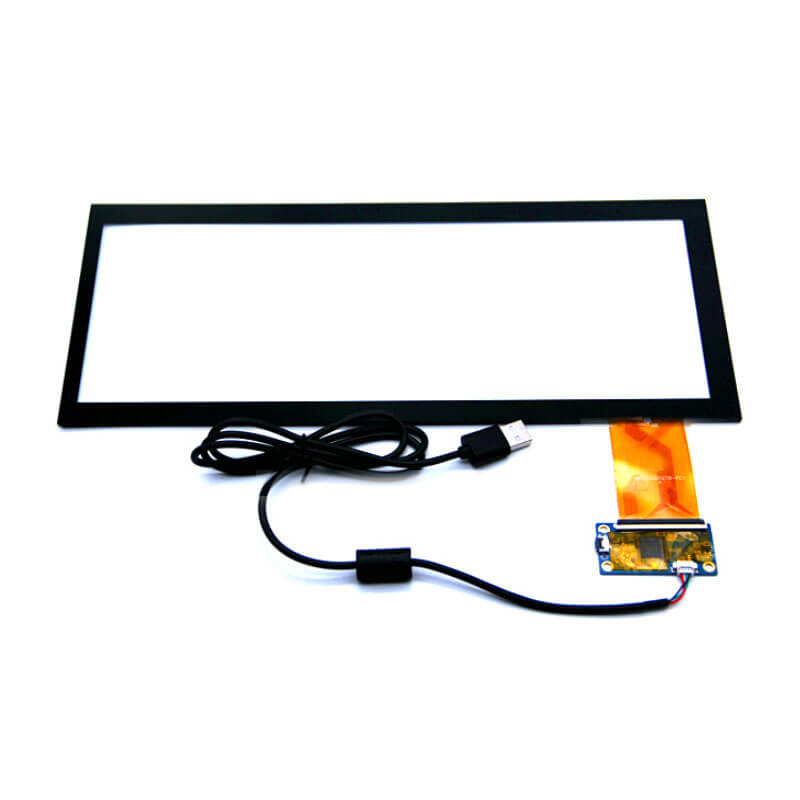

12.3 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 293.32x110.62 mm
Outline Dim.: 313.4x135.86 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

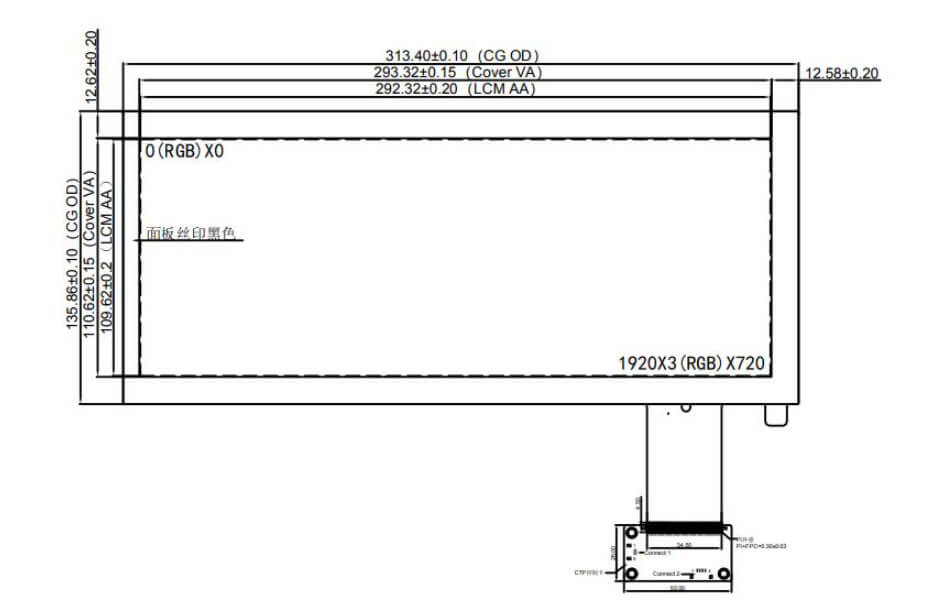

12.3 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
