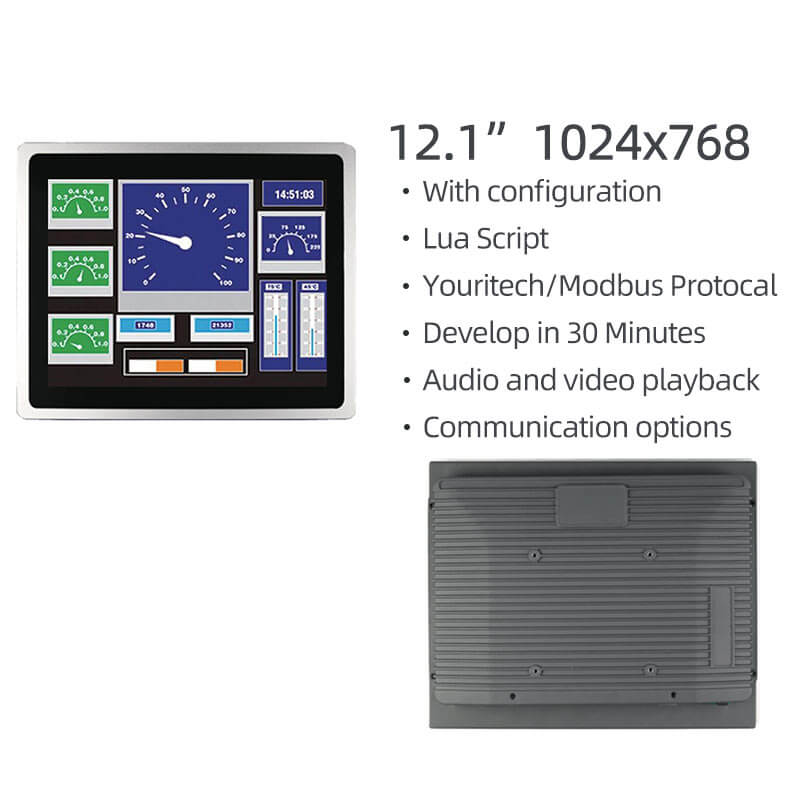

12.1 Inch Serial Port Screen 1024x768 IPS 485 Communication Serial TFT Display With Capacitive Touch For Medical

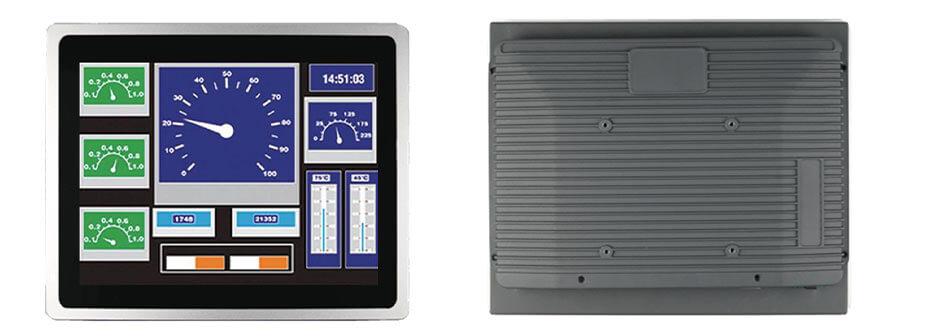

12.1 Inch Serial Port Screen Overview
12.1 Inch Serial Port Screen 1024x768 IPS 485 Communication Serial TFT Display With Capacitive Touch For Medical.
Product Model
ET121KM1076-DC(Capacitive touch)

12.1 Inch Serial Port Screen Product Parameters
Product Series: Medical Grade
Core Processor: 400M SOC Processor
Operating System: No operating system, runs immediately upon power-on.
Protocol Type: Default large color configuration instruction set, upper computer can configure to run MODBUS RTU, XGUS protocol.
Script Language: LUA script, the screen can run user-written logic, protocol and algorithm functions internally.
Size: 12.1 inches
Resolution: 1024x768
Installation Direction: Supports 0, 90, 180 and 270-degree rotation installation display.
Storage Space: 256Mbit
Font Library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font libraries, and can also display any custom computer fonts.
Image Storage: Supports JPEG, PNG (semi-transparent/full transparent) compression, supports storage of any size images. Approximately 187 full-screen images can be stored cumulatively (calculated at 140KB per image, BMP format not recommended). This value may fluctuate depending on the image compression ratio.
Color: 65K colors, 16-bit RGB
Voltage: 12V
Power Consumption:
Backlight at minimum, no speaker: 1.6W
Backlight at minimum, with speaker: 3.2W
Backlight at maximum, no speaker: 8.0W
Backlight at maximum, with speaker: 9.6W
Communication Method: RS485
Communication Baud Rate: RS485: 1200 to 115200 bps, typical baud rate: 9600 bps.
Communication Connector Specification: 2EDG3.81-4P
Local Image Download: SD card/U disk
Local/Remote Firmware Upgrade: Insert SD card or U disk for local upgrade / supports remote serial port upgrade of screen firmware from user's mainboard.
Remote Image Upgrade: Supports users to remotely upgrade screen-related image projects, font libraries, configuration files, etc. using their own mainboard serial port.
Real-time Clock (RTC): Supports clock, timer, countdown, etc.

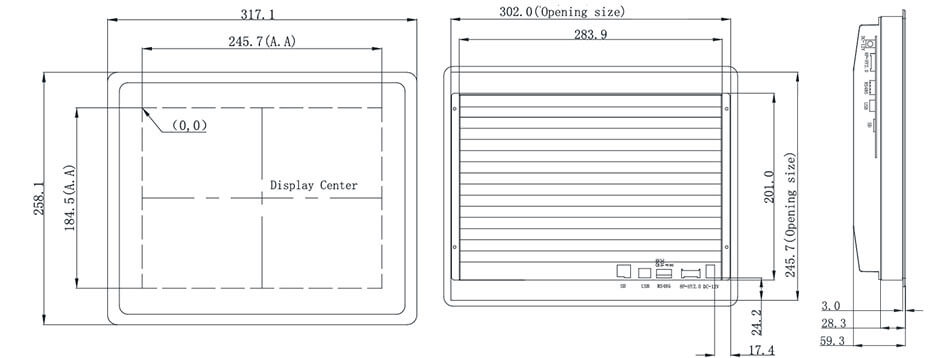

Effective Display Area of Screen: 245.7mm x 184.5mm
Product Dimensions: 317.1 x 258.1 x 59.3mm (MAX)
Companion PC Software: VisualTFT®
Operating Temperature: -20 to +70°C
Storage Temperature: -30 to +80°C
Audio Playback: MP3 audio format (speaker 8Ω 2W, mono), shares storage space with images. If the MP3 format has a sampling rate of 128kbps, it occupies 0.92MB of storage per minute.
Audio Connector Specification: PH2.0-2P
Video Playback: MP4 video format, shares storage space with images. If a video file has a resolution of 800*600, a video bitrate of 3000Kbps, an audio bitrate of 166Kbps, and a frame rate of 25Hz, it occupies 21.9MB of storage per minute.
Three-proof Coating Process: None (optional).

LCD screen
Display type: TFT LCD screen
Backlight tube:LED
Brightness(cd/m²):600
Backlight life (h):>20,000
Contrast:900:1
Viewing angle (L/R/T/B):85/85/85/85

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

Touch panel (Resistive and capacitive touch optional)
Touch Type: Capacitive Touchscreen
Capacitive Touch Modes: Single-touch and Slide Touch
Capacitive Touch Transmittance: Over 90%
Capacitive Touch Lifespan: Theoretically, unlimited touches are possible; touch lifespan is dependent on operating environment (dust and humidity).
Capacitive Cover Customization: Customizable "glass cover + capacitive touch" lamination service based on user drawing dimensions.
Touch type: Resistive touch screen.
Resistive screen touch mode: single point, sliding touch.
Resistive screen transmittance: more than 80%.
Resistive screen touch times: the same pixel, single touch times more than 1 million times.

Installation diagram

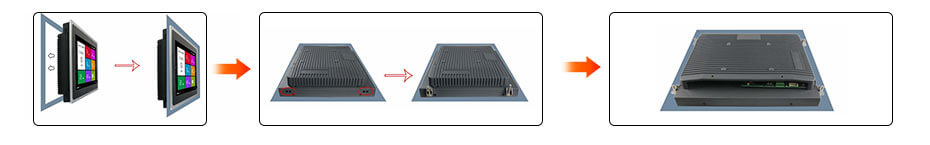

Step 1: As shown in the picture above, embed the serial port screen into the customer cabinet;
Step 2: Insert the buckle into the mounting hole marked in red as shown in the figure;
Step 3: Tighten the screws to fix the serial port screen to the customer's cabinet.

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
