COM43H4M78ULC Ortustech 4.3 Inch Transflective Display 480×800 MIPI Sunlight Readable TFT LCD Display

COM43H4M78ULC Ortustech 4.3 Inch Transflective Display 480×800 MIPI Sunlight Readable TFT LCD Display Overview

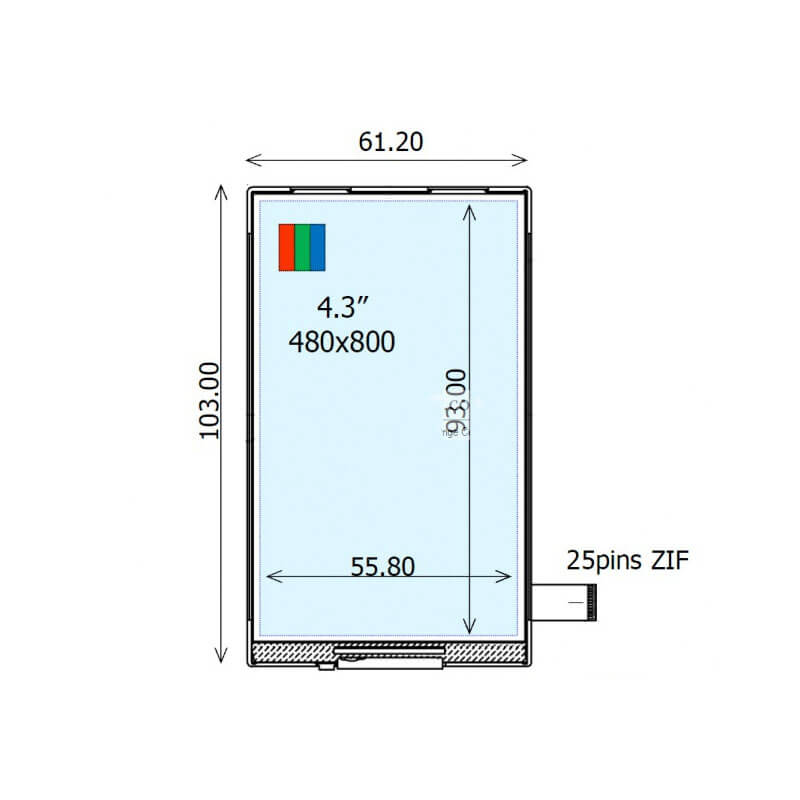

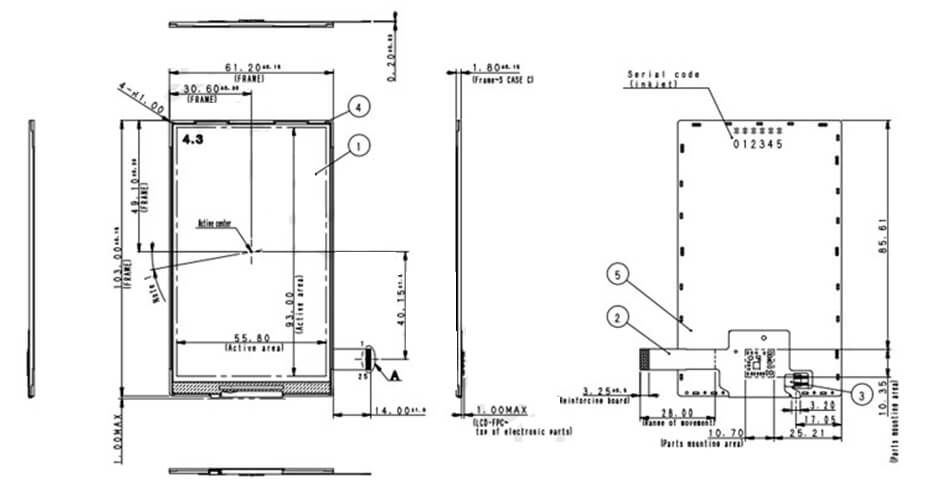

COM43H4M78ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 55.8(W)×93(H) mm, outline size of 61.2(W)×103(H)×2.95(D) mm, with surface treament of Hard coating (2H), net weight of 25.2g (Typ.). As a VA, Normally Black, Transflective LCM product, COM43H4M78ULC can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 4:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM43H4M78ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 25 pins FPC with power supply voltage of 3.3/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
