6"-15.6" Touch Screen (12.1")

12.1 Inch PCAP Touch Screen G/G Mechanism EETI IC COB Type USB/I2C Touch Display

Part No.:ET121CTP02
Size:12.1″ inch
Resolution:Optional
Panel Interface:I2C,USB
Display mode:PCAP

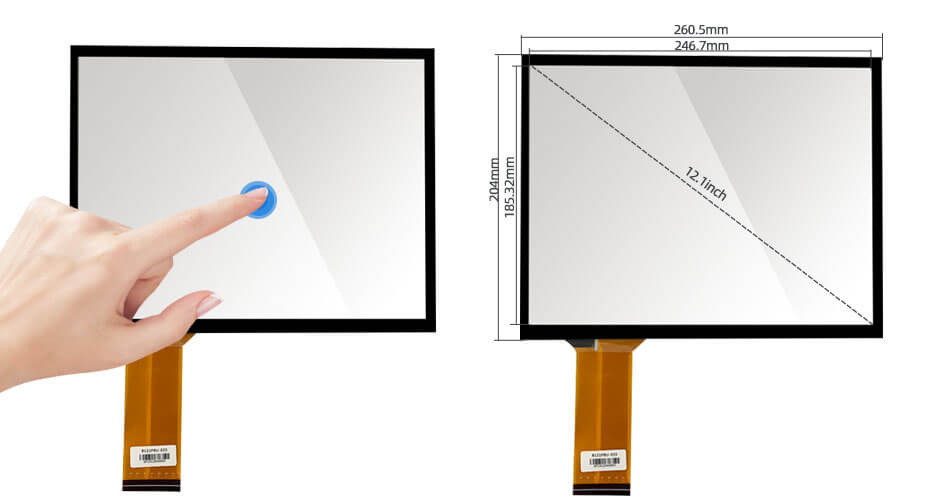

Outline Dimension:260.5x204mm
Active Area:246.76x185.32mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

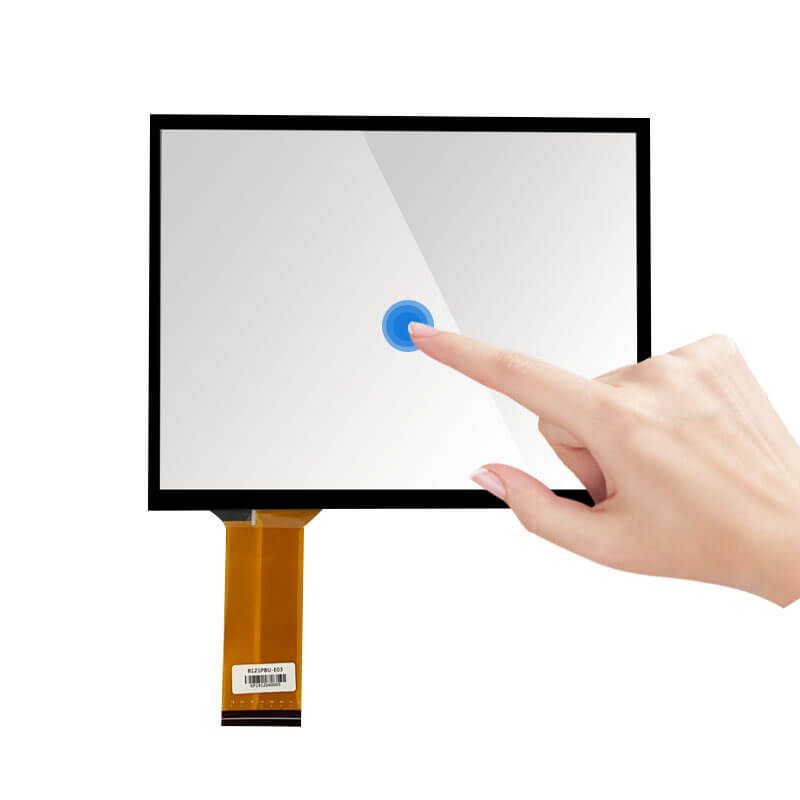

12.1 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 246.76x185.32 mm
Outline Dim.: 260.5x204 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

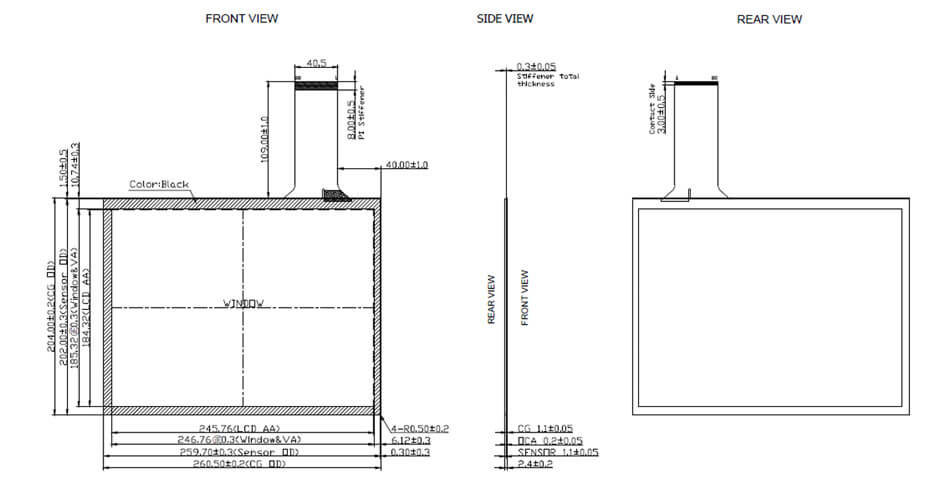

12.1 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
