7.5 Inch Square Display Overview

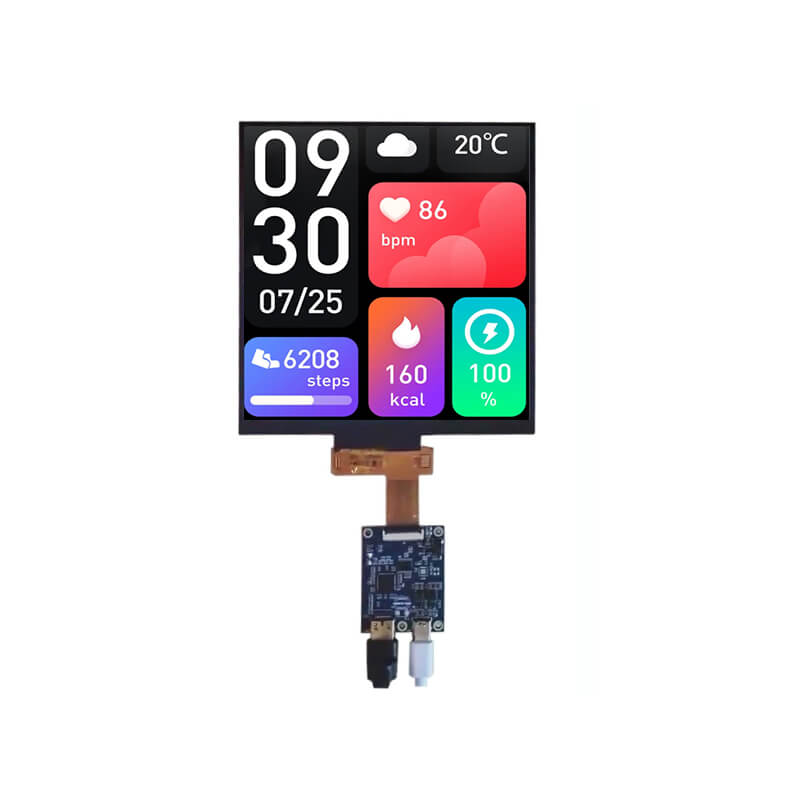

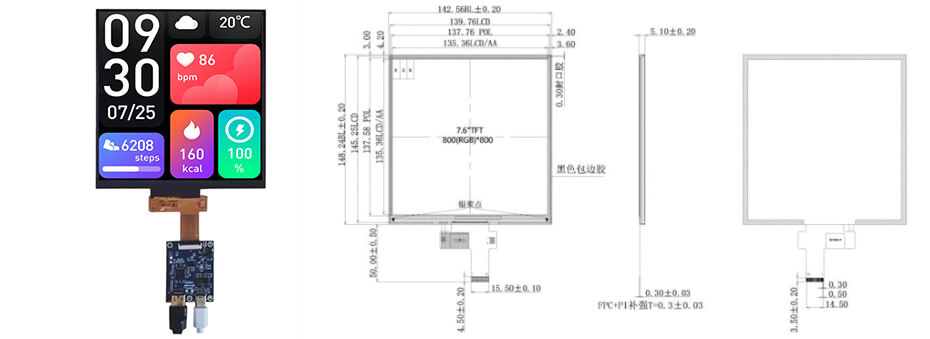

ET075SQ01-GX is a 7.5-inch square LCD display product. ET075SQ01-GX supports a display resolution of 800×800 and features a 30-pin MIPI panel interface. It operates in Normally Black display mode and has an outline size of 142.56(W)×148.24(H)×5.1(D) mm. The display provides 1000 cd/m² display brightness and features IPS technology with wide viewing angles. ET075SQ01-GX does not include a touch function and supports an operating temperature range of -20°C to 70°C. An optional HDMI driver board is available for convenient system integration.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
