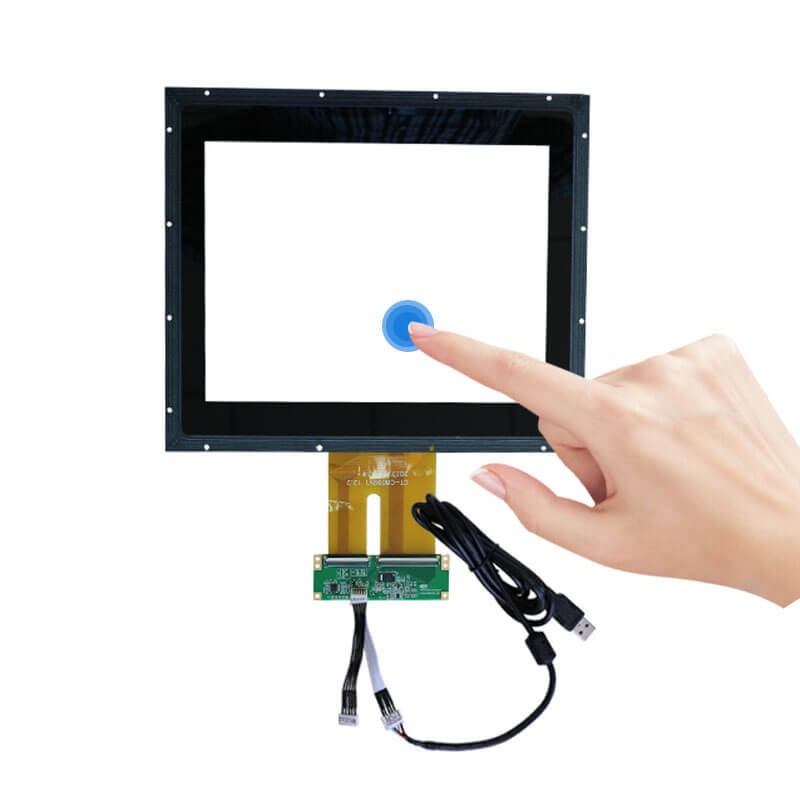

12.1 Inch Capacitive Touch Screen 4:3 P+F+F Touch Display For Industrial Control System Human-machine Interface

Part No.:ET121CTP04
Size:12.1″ inch
Resolution:Optional
Panel Interface:USB
Display mode:PCAP

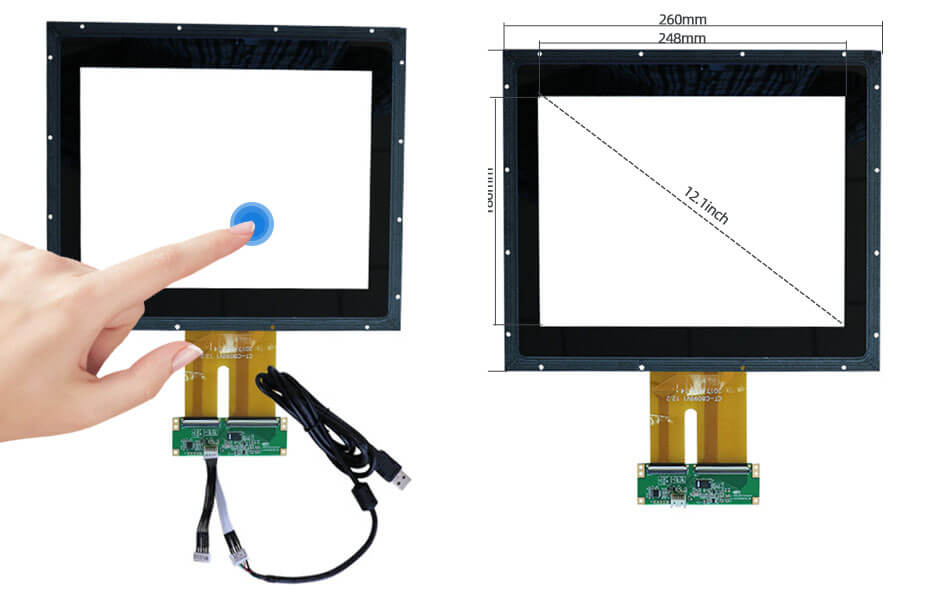

Outline Dimension:260x305mm
Active Area:248x186mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

12.1 Inch Capacitive Touch Screen
Product structure: P+F+F
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 248x186 mm
Outline Dim.: 260x305 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
