6"-15.6" Touch Screen (12.1")

12.1 Inch Capacitive Touch Screen Wide Temperature G+G 4:3 USB IIC RS232 Touch Display For Medical Industrial

Part No.:ET121CTP03
Size:12.1″ inch
Resolution:Optional
Panel Interface:I2C,USB,RS232
Display mode:PCAP

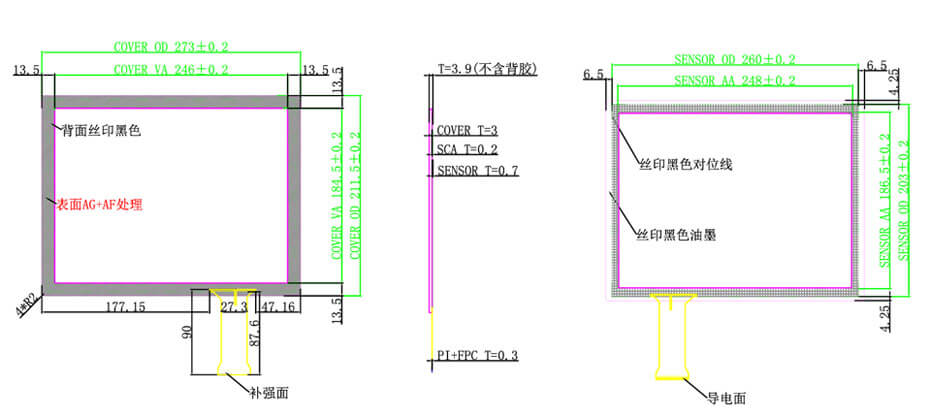

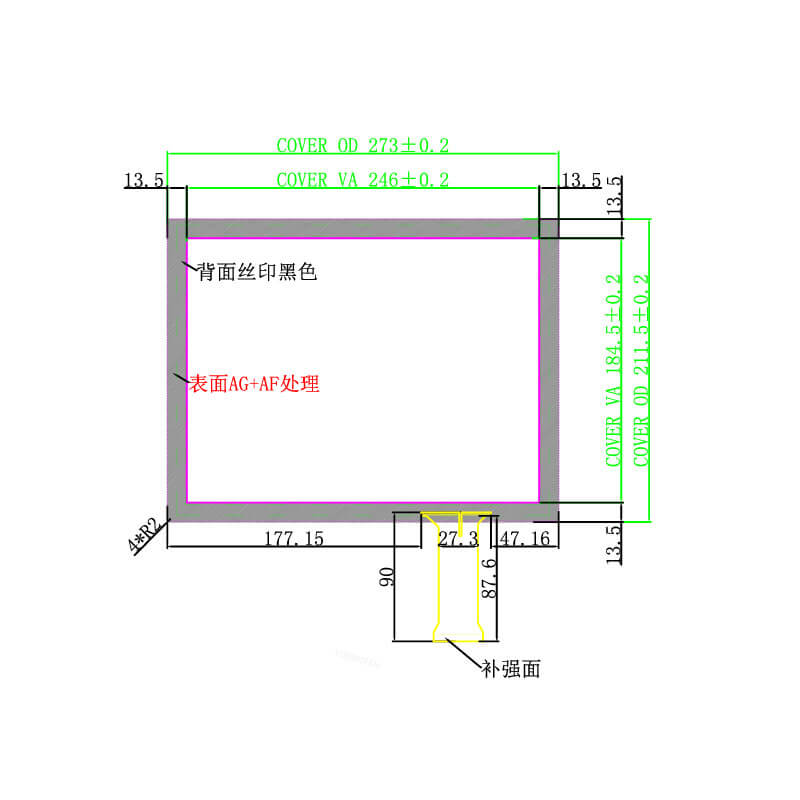

Outline Dimension:273x211.5mm
Active Area:246.00x184.50mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-30~70°C / -30~70°C
Touch:yes

12.1 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Appearance thickness: 3.9 mm
Touch Points: Multi-touch
Interface Type: I2C,USB,RS232
Display Area: 246.00x184.50 mm
Outline Dim.: 273x211.5 mm
Operation Temperature: -30 ~ 70°C
Storage Temperature: -30 ~ 70°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
