11.8 Inch TFT LCD Display 1200×160 LVDS High Brightness 750nits Wide Temperature LCD Display For Automotive

11.8 Inch Automotive Display Overview

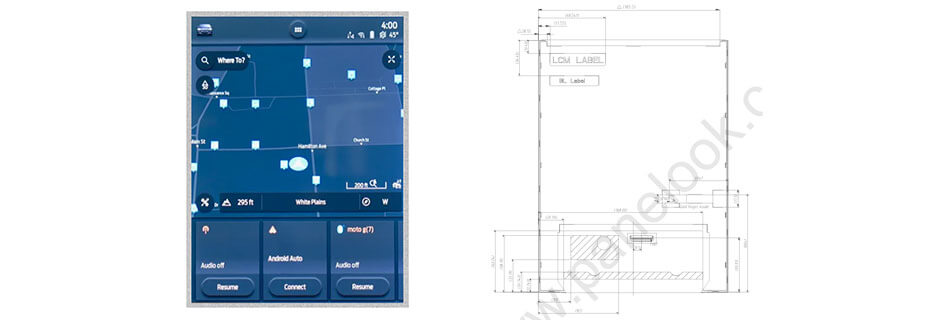

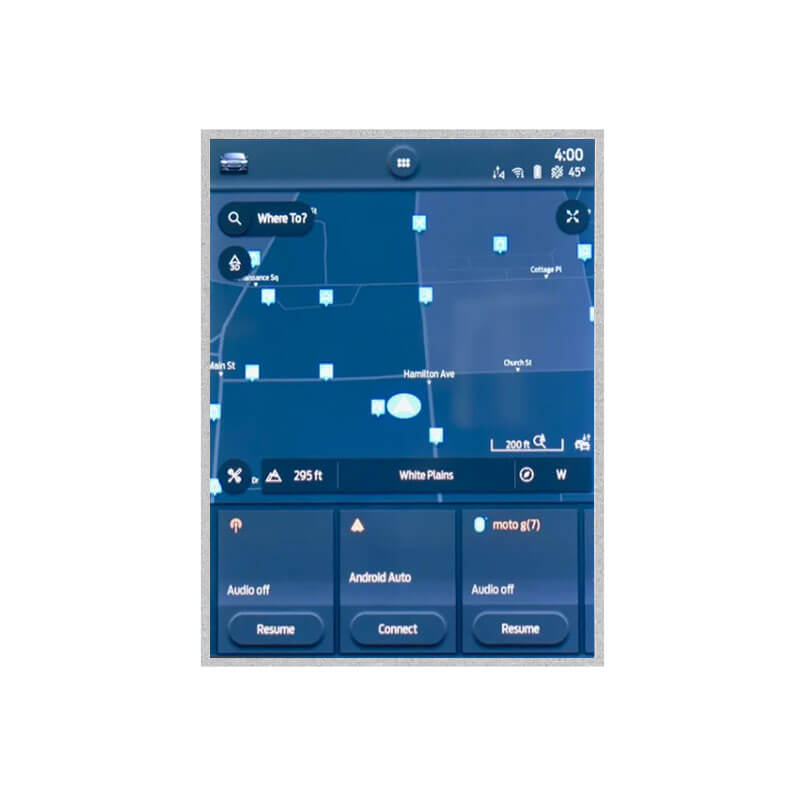

M121AW81 R1 is a 11.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.M121AW81 R1 supports display 1200(RGB)×1600 (UXGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 180(W)×240(H) mm, outline size of 194(W)×258.55(H)×10.6(D) mm, viewing area size of 184.4(W)×244.6(H) mm, with surface treament of Antiglare, Hard coating (3H), Reflection 4.5% (Max.), net weight of 560g (Max.). As a IPS, Normally Black, Transmissive LCM product, M121AW81 R1 can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).

Automotive Display Solution
