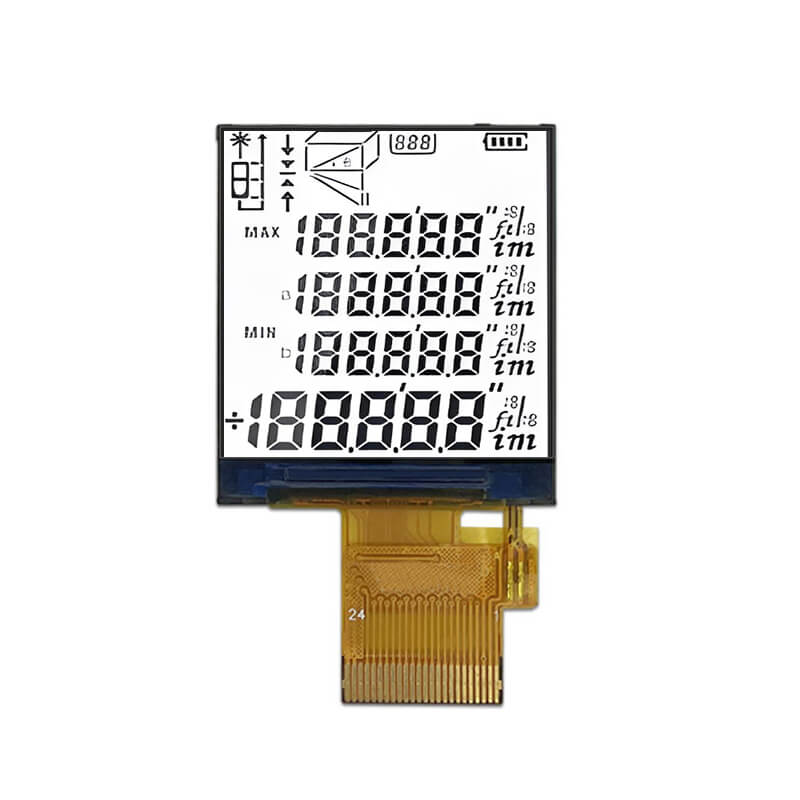

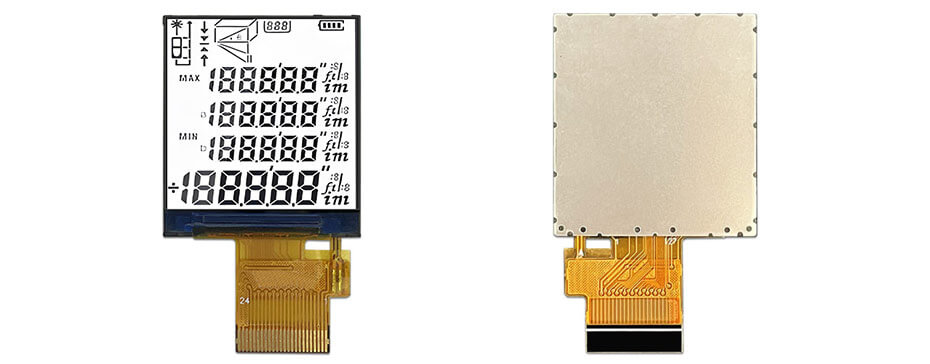

ET013SQ20-T is a 1.3-inch diagonal TFT LCD display module featuring a transmissive display mode. It supports a resolution of 240×240 pixels and an MCU 8-bit interface, making it suitable for compact electronic devices such as measuring rangefinders. It features an outline dimension of 26.2(W)×29.22(H)×1.46(D) mm and provides a display brightness of 450 cd/m². The module operates at temperatures ranging from -20°C to 70°C and can be stored at temperatures from -30°C to 80°C. ET013SQ20-T does not include a touch panel, making it a suitable display solution for compact measuring instruments and other industrial applications.
More 1.3 Inch Healthcare & Medical Display Solution For Reference

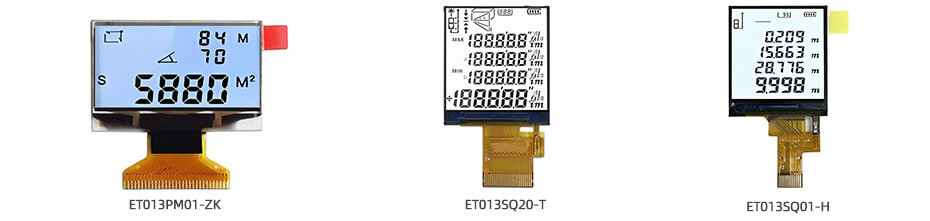

ET013PM01-ZK (OLED, 128×64, 110nits, CPU/SPI/I²C, -40~85°C, 34.5×23mm)
ET013SQ20-T (LCM, 240×240, 450nits, CPU/SPI, -20~70°C, 26.2×29.22mm)
ET013SQ01-H (LCM, 128×128, 350nits, SPI, -20~70°C, 26.16×29.22mm)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
