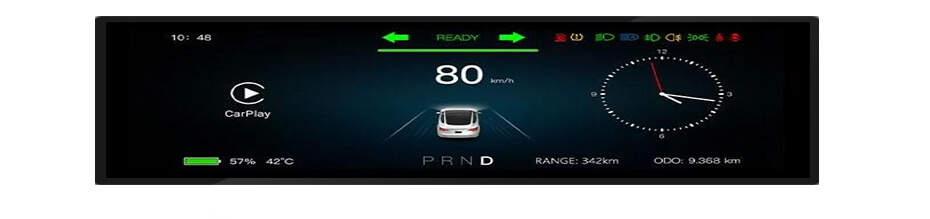

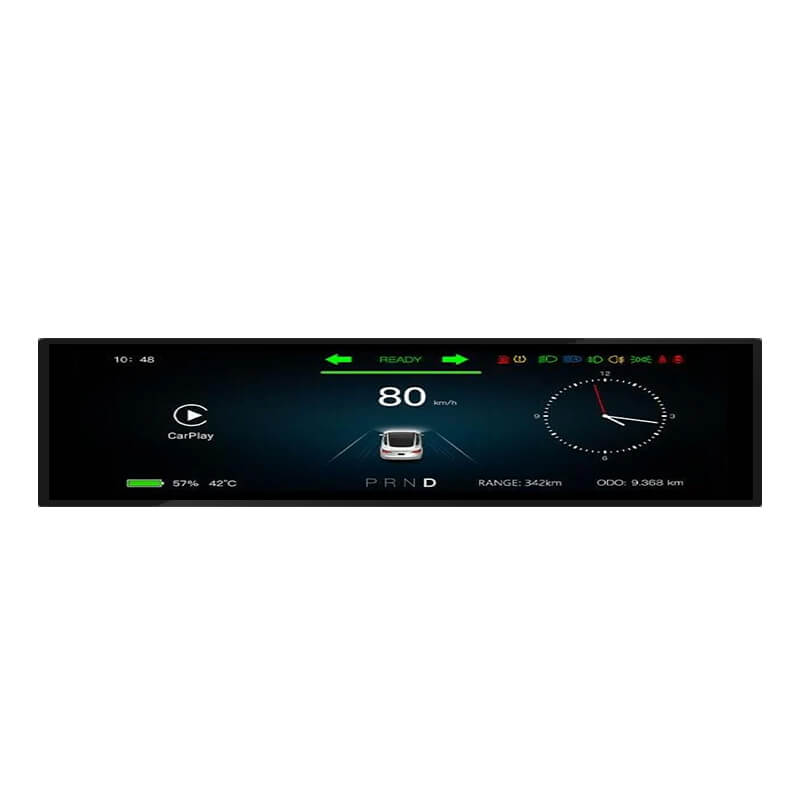

11.3 Inch 440×1920 Stretched LCD Display 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

11.3 Inch Stretched Bar Display Overview
QV101F6M-N10-MO01 is an 11.3-inch diagonal stretched LCD display designed for bar-type and secondary display applications. It supports a resolution of 440×1920, with a 40-Pin MIPI interface and Normally Black display mode. It features an outline dimension of 64.98(W)×266.44(H)×4.6(D) mm and supports a wide viewing angle of ALL directions (L/R/U/D). QV101F6M-N10-MO01 provides a display brightness of 500 cd/m² and supports an operating temperature range of -20°C to 70°C. The display can be equipped with a touch panel and an HDMI driver board, making it suitable for applications requiring touch interaction, MIPI connectivity, and stretched bar displays.

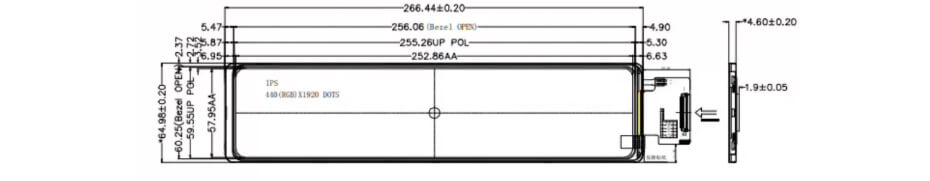

11.3 Inch Stretched Bar Display Drawing

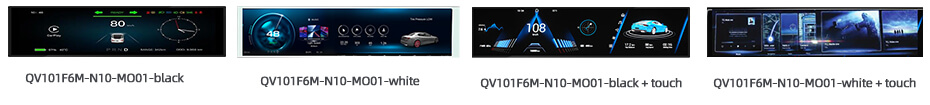

11.3 Inch Bar Displays Solution For Reference
QV101F6M-N10-MO01-black
QV101F6M-N10-MO01-white
QV101F6M-N10-MO01-black + touch
QV101F6M-N10-MO01-white + touch

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
