10.4 Inch TFT LCD Display 640×480 LVDS High Brightness Wide Temperature Display For Aerospace Display

10.4 Inch Aerospace Display Overview

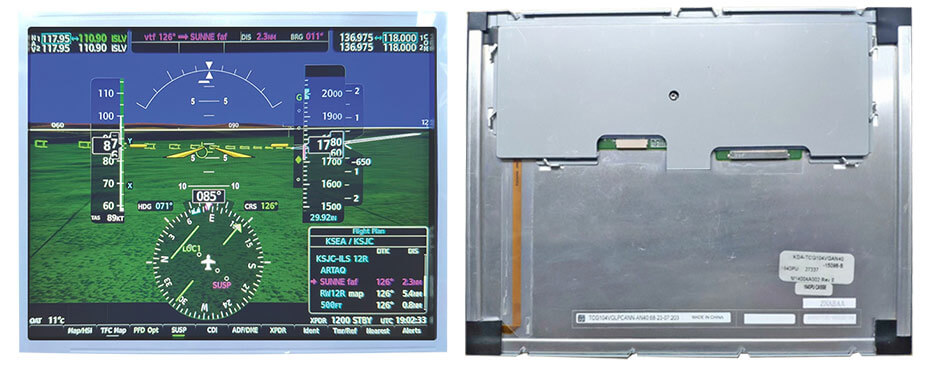

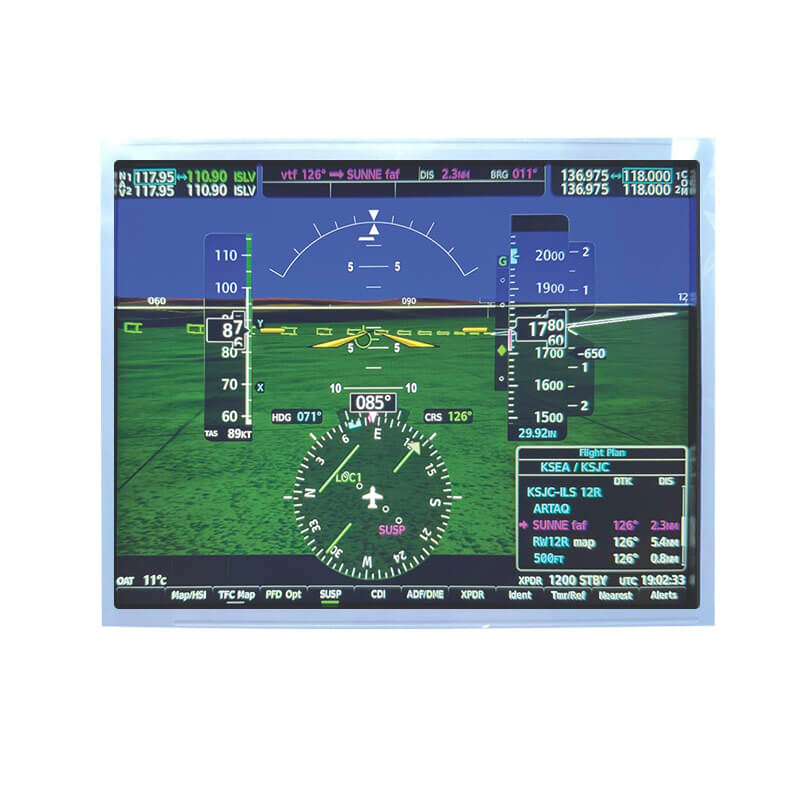

TCG104VGLPCANN-AN40 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×11(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, TCG104VGLPCANN-AN40 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/60/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TCG104VGLPCANN-AN40 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ./Max.). It's typical vertical frame rate (Fv) is 60Hz.

More 10.4 Inch Aerospace Display For Reference
G104ACJ-L01 (960×1280, LVDS, 900nits, -40~85°C, 173.4×228.7mm)
P1040XGF1MA00 (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
G104XCE-LH1 (1024×768, LVDS, 1000nits, -30~85°C, 225.5×176.3mm)
TX26D211VM0BAA (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
TCG104VGLPCANN-AN40 (640×480, LVDS, 1500nits, -30~80°C, 230×180.2mm)
P1040VGF1MA00 (640×480, TTL, 900nits, -30~80°C, 243×185.1mm)
COM104H9M25SSS (800×600, LVDS, 650nits, -30~80°C, 230×180.2mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
