10.4 Inch TFT LCD Display 1024×768 LVDS High Brightness Wide Temperature Display For Aerospace Display

10.4 Inch Aerospace Display Overview

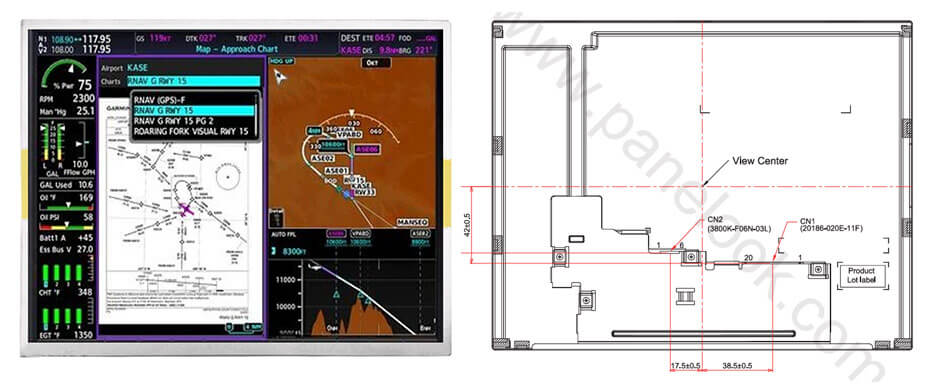

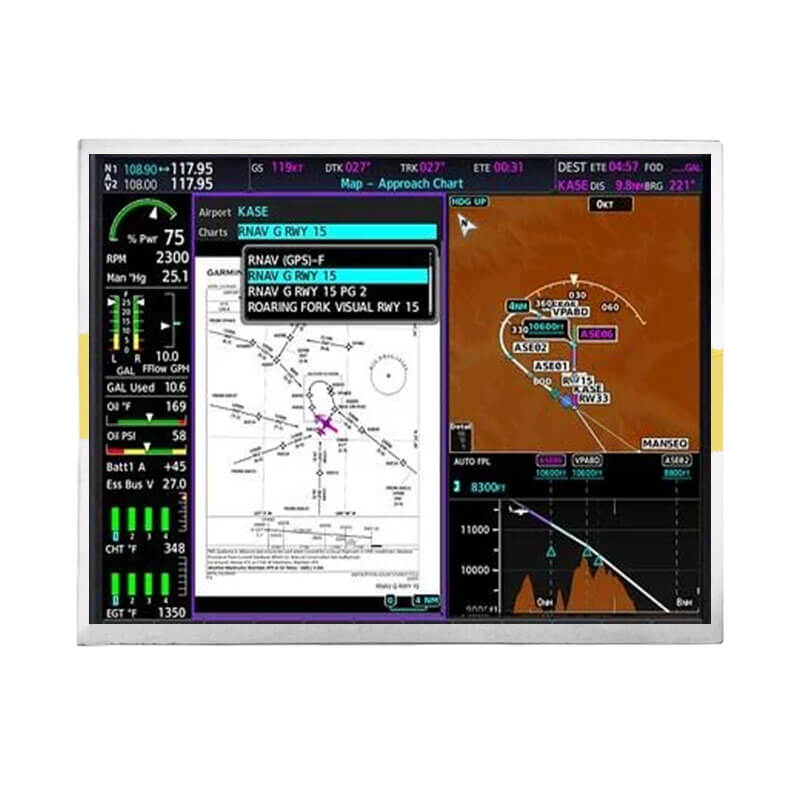

TX26D211VM0BAA supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×10(D) mm, viewing area size of 215.4(W)×161.8(H) mm, net weight of 410g (Typ.). As a IPS, Normally Black, Transmissive LCM , TX26D211VM0BAA can provides 1300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. TX26D211VM0BAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

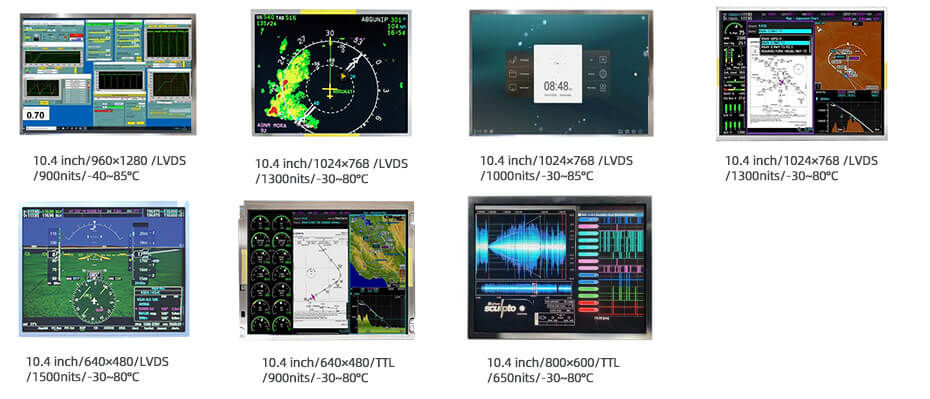

More 10.4 Inch Aerospace Display For Reference
G104ACJ-L01 (960×1280, LVDS, 900nits, -40~85°C, 173.4×228.7mm)
P1040XGF1MA00 (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
G104XCE-LH1 (1024×768, LVDS, 1000nits, -30~85°C, 225.5×176.3mm)
TX26D211VM0BAA (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
TCG104VGLPCANN-AN40 (640×480, LVDS, 1500nits, -30~80°C, 230×180.2mm)
P1040VGF1MA00 (640×480, TTL, 900nits, -30~80°C, 243×185.1mm)
COM104H9M25SSS (800×600, LVDS, 650nits, -30~80°C, 230×180.2mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
