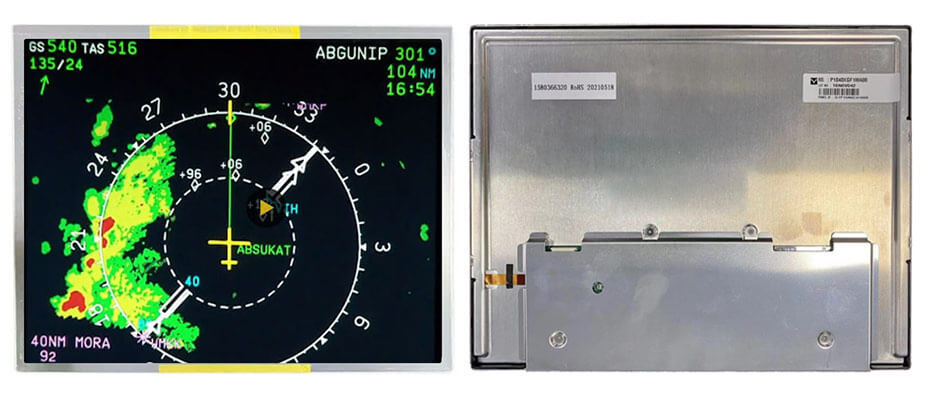

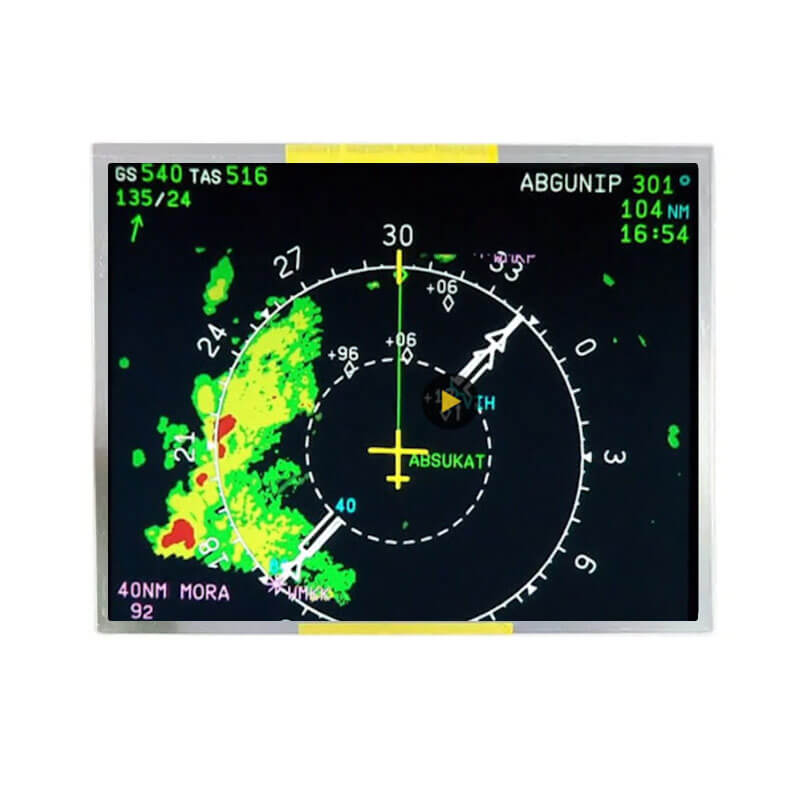

P1040XGF1MA00 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. P1040XGF1MA00 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.432(W)×157.824(H) mm, outline size of 230(W)×180.2(H)×9.8(D) mm, viewing area size of 213.432(W)×160.82(H) mm, with surface treament of Antiglare, net weight of 430g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1040XGF1MA00 can provides 1300 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. P1040XGF1MA00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 10.4 Inch Aerospace Display For Reference
G104ACJ-L01 (960×1280, LVDS, 900nits, -40~85°C, 173.4×228.7mm)
P1040XGF1MA00 (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
G104XCE-LH1 (1024×768, LVDS, 1000nits, -30~85°C, 225.5×176.3mm)
TX26D211VM0BAA (1024×768, LVDS, 1300nits, -30~80°C, 230×180.2mm)
TCG104VGLPCANN-AN40 (640×480, LVDS, 1500nits, -30~80°C, 230×180.2mm)
P1040VGF1MA00 (640×480, TTL, 900nits, -30~80°C, 243×185.1mm)
COM104H9M25SSS (800×600, LVDS, 650nits, -30~80°C, 230×180.2mm)
Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions
Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)
Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability
High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands
Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions
Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft
Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
