7 Inch TFT LCD Display 1080×1920 MIPI High Brightness 2000nits Wide Temperature Display For Marine Display.
More 7 Inch Marine Display For Reference
TX18D200VM0EAA (1920×1080, LVDS, 1200nits, -40~85°C, 169×104mm)
ET7D0023 (1080×1920, MIPI, 1000nits, -30~80°C, 101.4×174mm)

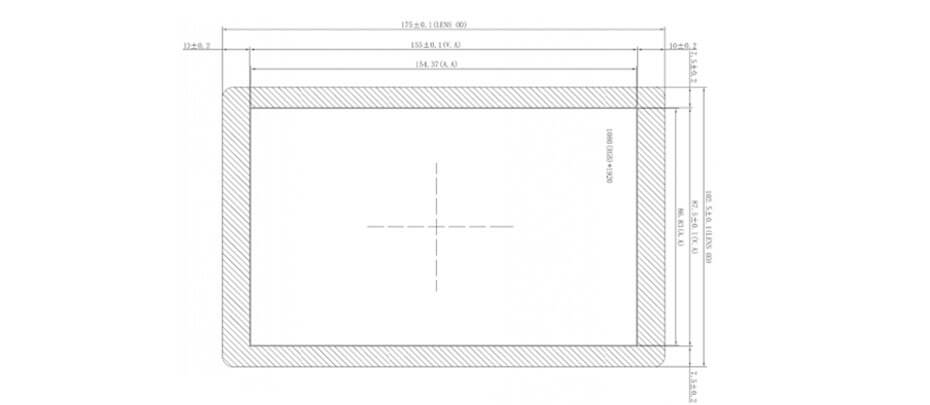

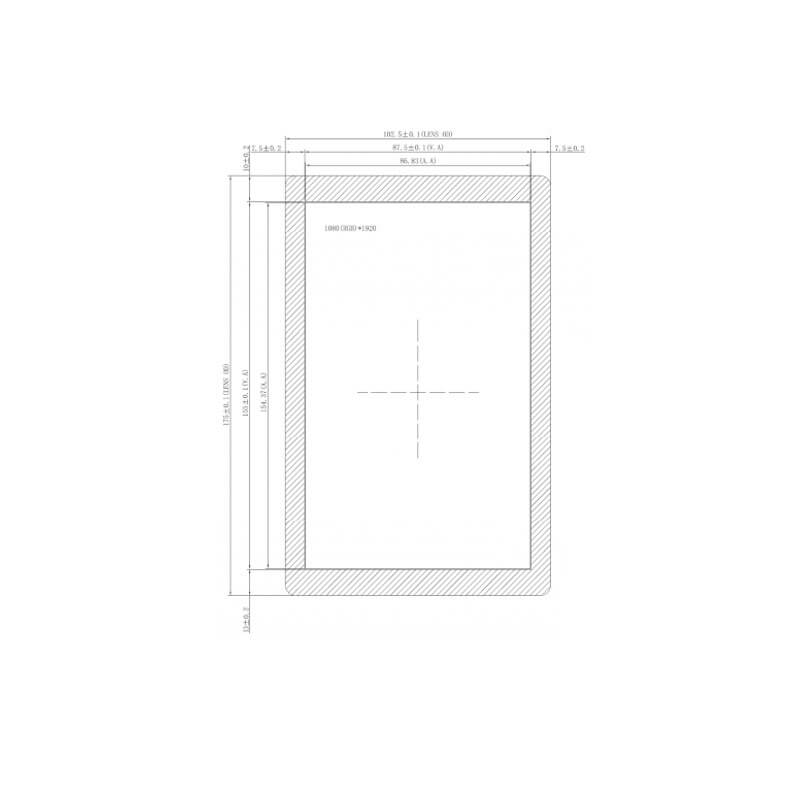

ET070WV01-RT (1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm)
TX18D212VM0BAA (1280×768, LVDS, 1500nits, -40~85°C, 164.4×105mm)
ET070WU01-TT (1200×1920, MIPI, 1300nits, -20~70°C, 105.18×163.34mm)
ET070HD05-K (1024×600, MIPI, 1700nits, -20~70°C, 165×100mm)
ET070WS10-TC (1024×600, TTL, 1000nits, -30~80°C, 164.9×100mm)
ET070WS07-KT (1024×600, LVDS, 1600nits, -30~85°C, 182×117.6mm)
ET070WX10-TT (800×1280, MIPI, 1100nits, -20~70°C, 108.1×164.2mm)
TX18D206VM0BAA (800×480, LVDS, 800nits, -40~85°C, 167.7×109.45mm)
TCG070WVLQGPNN-AN40 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
COM70H7M24ULC (800×480, LVDS, 790nits, -30~85°C, 169.8×109.7mm)
P0700WVF1MA00 (800×480, LVDS, 1500nits, -30~80°C, 169.8×109.7mm)
P0700WVF1MA10 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
COM70H7M44UTC (800×480, LVDS, 900nits, -30~80°C, 187.7×123.7mm)
G070ACE-LH1 (800×480, LVDS, 1000nits, -30~80°C, 170×110mm)
TX18D210VM0BAA (800×480, TTL, 800nits, -40~85°C, 167.7×109.5mm)
C070VAN02.9 (800×480, TTL, 1000nits, -30~85°C, 167.3×109.2mm)
ET070WV07-KT (800×480, TTL, 1140nits, -30~80°C, 190.5×105.4mm)
High Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning
Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring
Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping
Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking
Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)
Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control
Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web
Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
