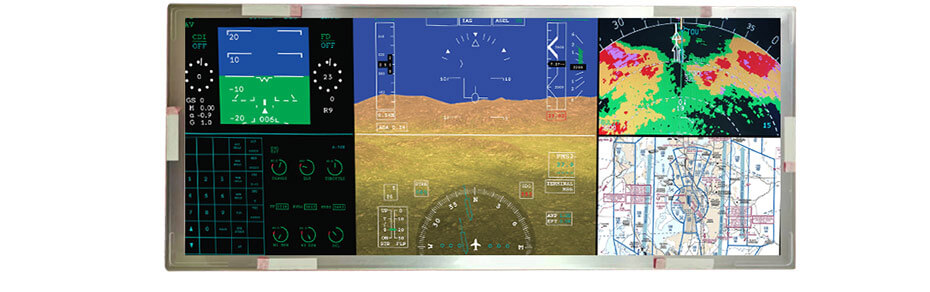

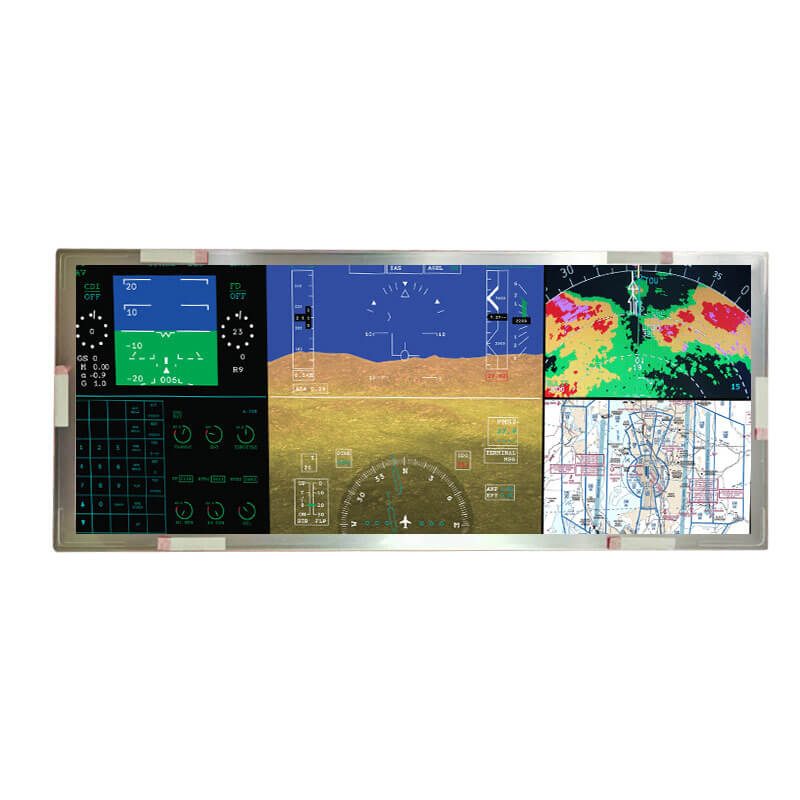

21.5 Inch TFT LCD Display 2560×1024 LVDS High Brightness Wide Temperature Display TM215XDHP01-01 For Aerospace Display

21.5 Inch TFT LCD Display 2560×1024 LVDS High Brightness Wide Temperature Display TM215XDHP01-01 For Aerospace Display Video

21.5 Inch TFT LCD Display 2560×1024 LVDS High Brightness Wide Temperature Display TM215XDHP01-01 For Aerospace Display Overview

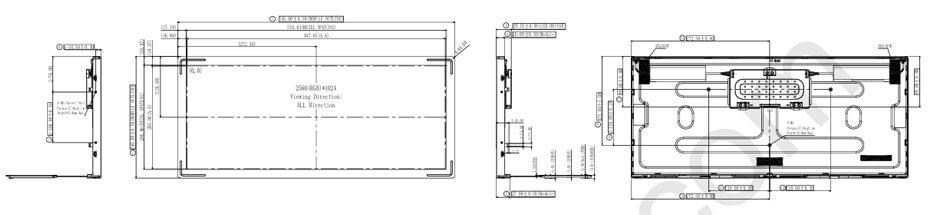

TM215XDHP01-01 supports display 2560(RGB)×1024 with aspect ratio of 5:2 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 507.648(W)×203.059(H) mm, outline size of 545(W)×240(H)×29.6(D) mm, viewing area size of 510.64(W)×206.06(H) mm, with surface treament of Antiglare, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM215XDHP01-01 can provides 900 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TM215XDHP01-01 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 80 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VDD/VCC). It's typical vertical frame rate (Fv) is 60Hz.

More 21.5 Inch Aerospace Display For Reference
G215HCJ-LH1 (1920×1080, LVDS, 1400nits, -30~80°C, 495.6×292.2mm)
TM215XDHP01-01 (2560×1024, LVDS, 900nits, -30~70°C, 545×240mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems

Youritech Aerospace Display Production and Manufacturing
