10.4 Inch Stretched Bar Display 1366x374 IPS 500nits High Brightness LVDS TFT LCD Display

10.4 Inch Stretched Bar Display Overview

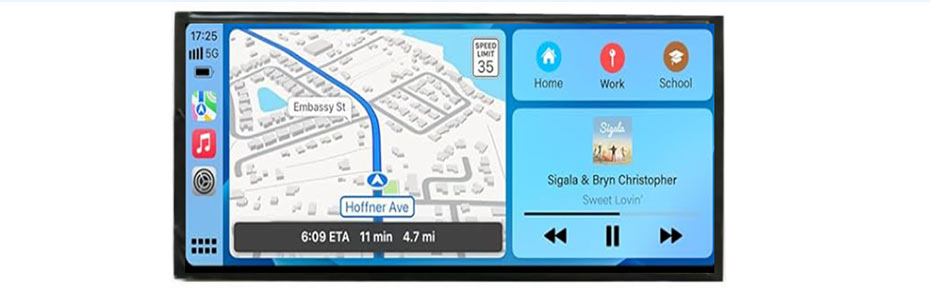

ET104BA01-YH is a 10.4-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1366 × 374 resolution, providing a wide bar-type display format optimized for information-dense and elongated user interfaces, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 256.125 (W) × 65 (H) mm and an outline dimension of 276 (W) × 85 (H) mm, enabling slim and space-efficient mechanical integration. ET104BA01-YH adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring good visibility under high ambient lighting conditions. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast performance from nearly any viewing position. The module is designed for stable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial instruments, control panels, smart appliances, and transportation or information display systems.

More 10.4 Inch Bar Displays For Reference
ET104BA01-YH (1366x374 , LVDS, IPS, 500nits, 0~50°C, 276x85mm)
ET104BA01-QV (440x1920, MIPI, IPS, 500nits, -20~70°C, 64.98x266.39mm)
ET104BA01-PV (1024x100, TTL, IPS, 1000nits, -20~70°C, 274.92x41.5mm)
