10.3 Inch Stretched Bar Display 1280x480 IPS 600nits High Brightness LVDS Wide Temperature TFT LCD Display

10.3 Inch Stretched Bar Display Overview

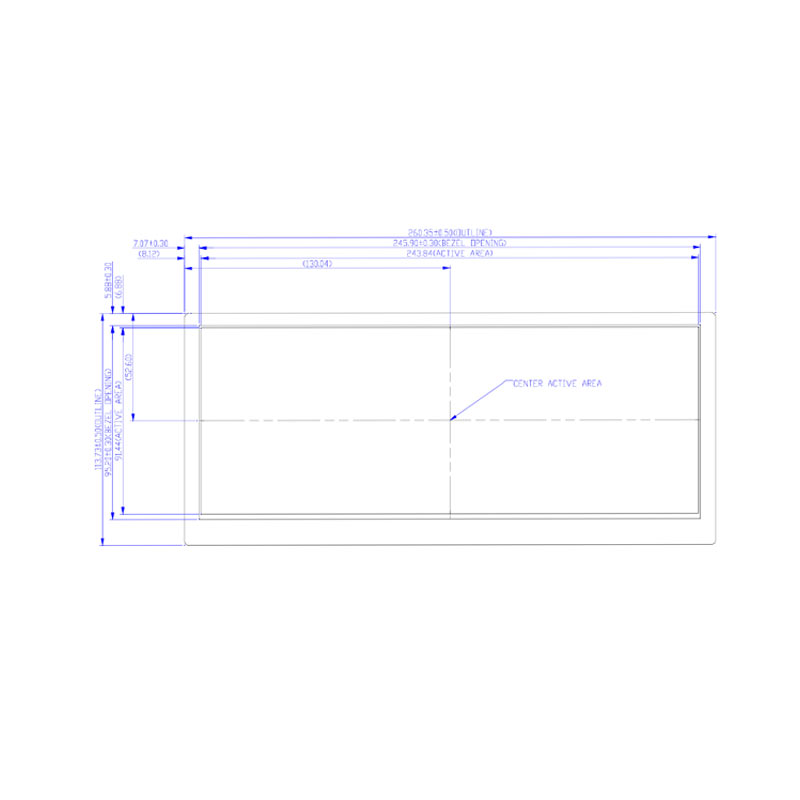

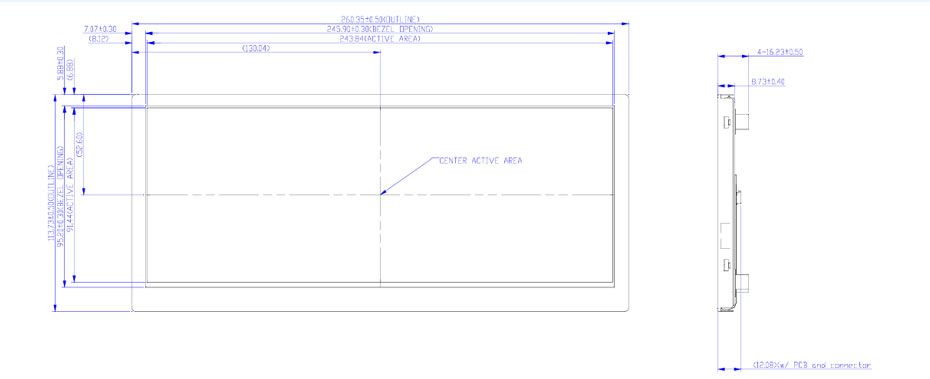

ET103BA01-DB is a 10.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1280 × 480 resolution, delivering a wide-format display well suited for clear data visualization and elongated user interfaces, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 243.84 (W) × 91.44 (H) mm and an outline dimension of 260.35 (W) × 113.73 (H) mm, enabling efficient integration into compact and space-conscious designs. ET103BA01-DB adopts an LVDS interface and provides a high brightness of 600 cd/m² (minimum), ensuring excellent readability in bright ambient and semi-outdoor environments. With wide viewing angles of 80° in all directions (L/R/U/D), it maintains consistent image quality across multiple viewing positions. The module is engineered for harsh environments, supporting a wide operating temperature range of –30 to 85°C and an extended storage temperature range of –40 to 95°C. This model does not support touch functionality and is ideal for applications such as industrial equipment, transportation displays, outdoor control panels, and other wide-temperature embedded display solutions.

More 10.3 Inch Bar Displays For Reference
ET103BA01-ZK (1920x720, LVDS, IPS, 600nits, -20~70°C, 265.2x109.85mm)
ET103BA01-YH (1024x400, LVDS, IPS, 500nits, -30~85°C, 270x115mm)
ET103BA01-DB (1280x480, LVDS, IPS, 600nits, -30~85°C, 260.35x113.73mm)
