6"-15.6" Touch Screen (10.4")

10.4 Inch Capacitive Touch Screen 4:3 G+G Multi-touch Display For AUO BOE Industrial Screen

  • Part No.:ET104CTP02
  • Size:10.4″ inch
  • Resolution:Optional
  • Panel Interface:I2C,USB,UART
  • Display mode:PCAP
  • Outline Dimension:228.2x180.1mm
  • Active Area:212.03x159.42mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-20~70°C / -40~80°C
  • Touch:yes
Get a quote


10.4 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB,UART

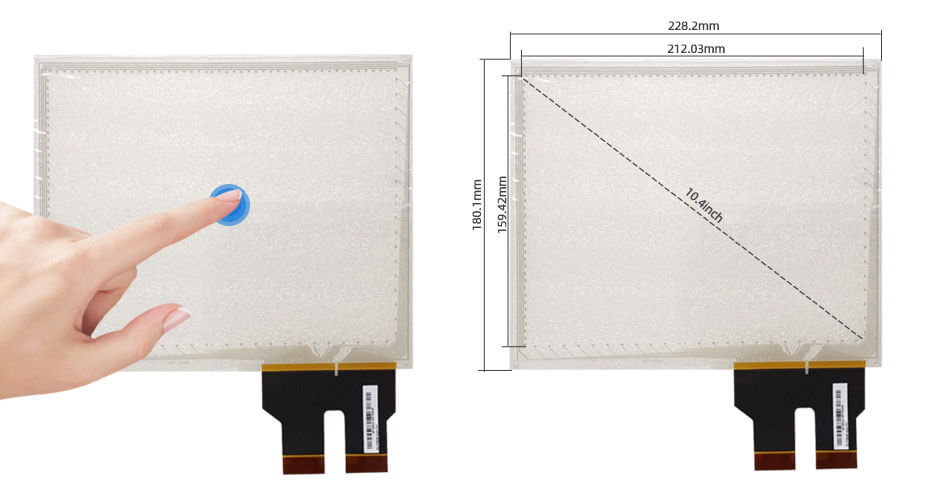

Display Area: 212.03x159.42 mm
Outline Dim.: 228.2x180.1 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -40 ~ 80°C

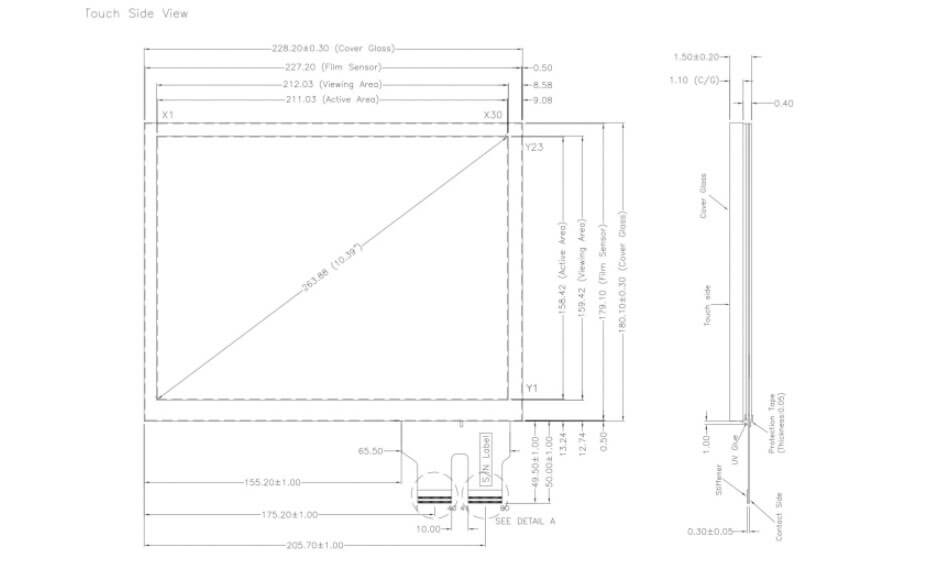

10.4 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
