6"-15.6" Touch Screen (10.4")

10.4 Inch Capacitive Touch Screen 4:3 USB Dustproof Explosion-proof Glare-proof Touch Display

  • Part No.:ET104CTP03
  • Size:10.4″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:PCAP
  • Outline Dimension:236.2x178.4mm
  • Active Area:213.2x160.4mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-20~60°C / -30~70°C
  • Touch:yes
Get a quote

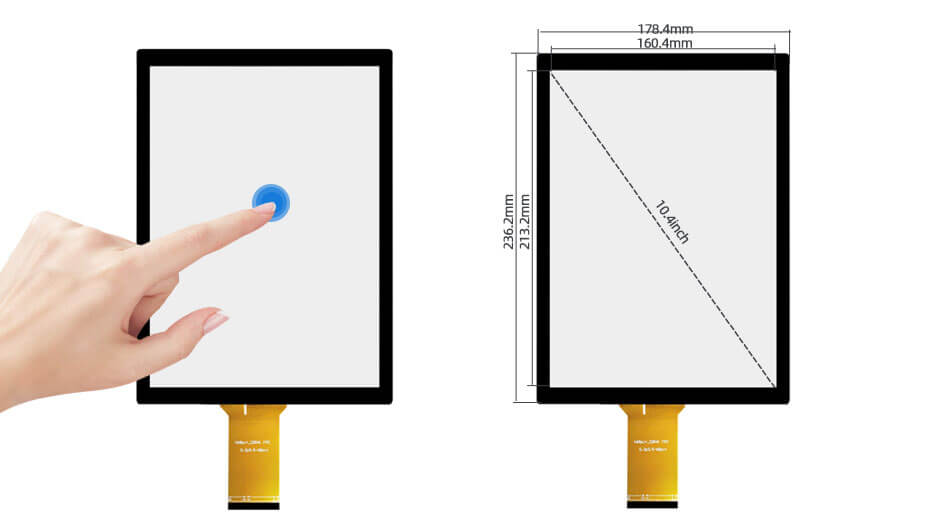

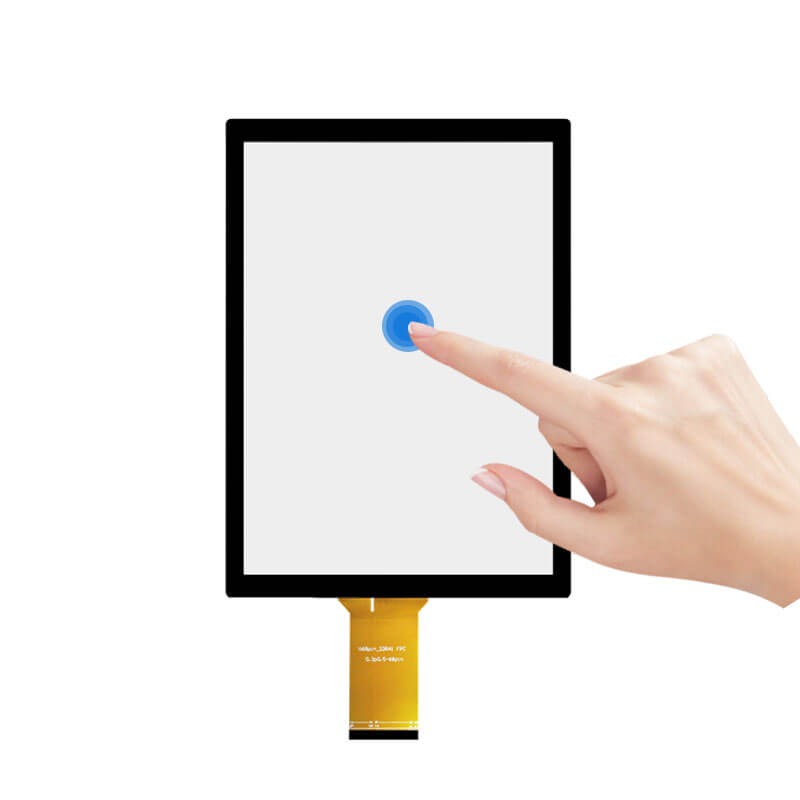

10.4 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 213.2x160.4 mm
Outline Dim.: 236.2x178.4 mm
Operation Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70°C

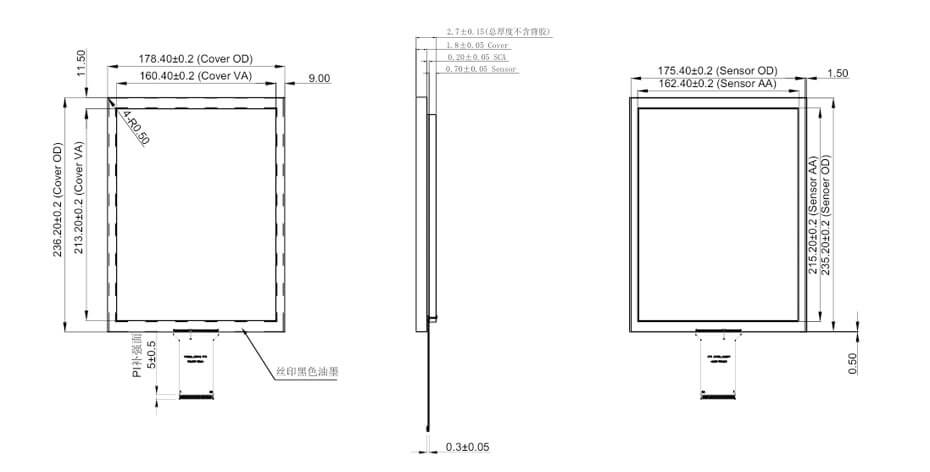

10.4 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
