10.3 Inch Serial Screen 1920x720 Ethernet RS232 Automotive Grade Serial TFT Display With Capacitive Touch

10.3 Inch Serial Port Screen Overview

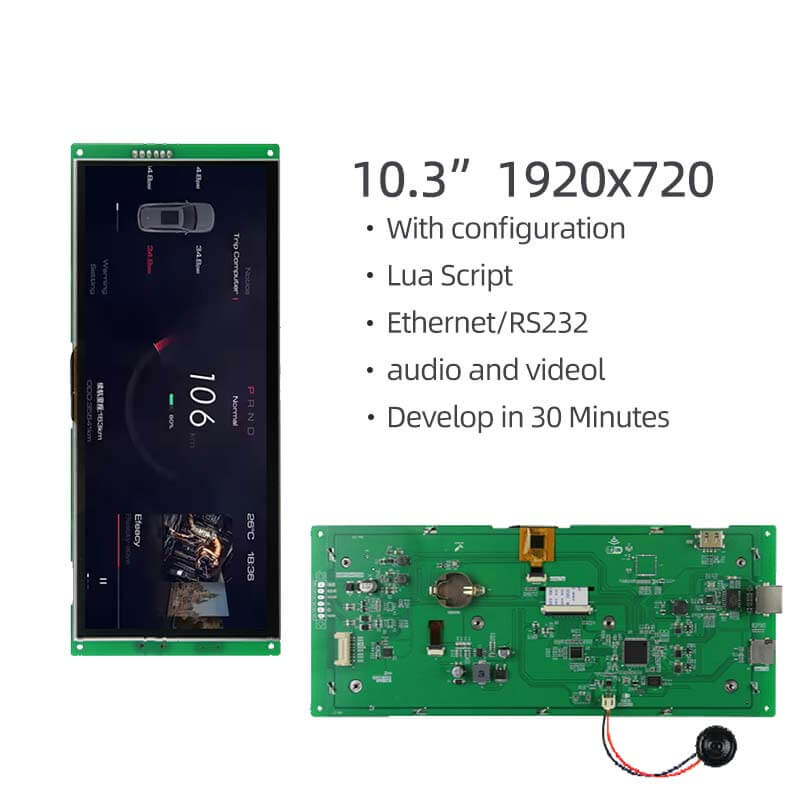

10.3 Inch Serial Screen 1920x720 Ethernet RS232 Automotive Grade Serial TFT Display With Capacitive Touch.
Product Model

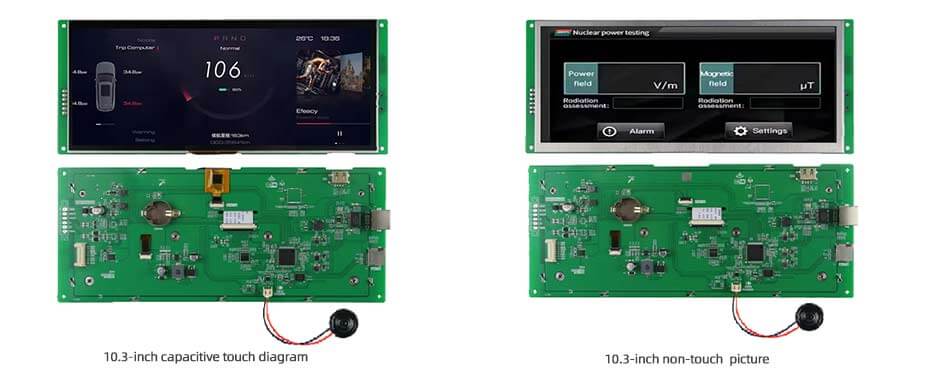

ET103BA1972-DCC(Capacitive touch)
ET103BA1972-DCN(No touch)

10.3 Inch Serial Port Screen Product Parameters
Product Series: Automotive Grade IoT Type
Core processor: 800MHz 32-bit dual-core processor
Operating system: embedded real-time operating system
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU and XGUS protocols.
Size: 10.3 inches
Resolution:1920x720
Installation direction: Supports 0, 90, 180 and 270 degree rotation installation display.
Storage space: 1Gbit
Font library: Built-in vector fonts, edge anti-aliasing processing, including any size dot matrix ASCII, GBK, GB2312, UNICODE font library, any computer font display can be customized.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, supports image storage of any size, and supports image rotation, enlargement, reduction and other functions. A total of approximately 272 full-screen pictures can be stored (calculated based on size 480KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage: 12-40V (error ±0.2V)
Power consumption
Darkest without speaker: 3.0W
The darkest speaker: 6.8W
Brightest without speakers: 12.3W
The brightest speaker: 16.9W
Communication method: RS232/TTL (factory default 232 level).
Communication baud rate: RS232: 1200~921600bps, typical baud rate: 115200 bps
Communication connector specifications:HY2.0-8P
Image download: U disk/SD card/UART (the U disk must be in FAT32 format and has never been used as a computer system boot disk).
Real-time clock (RTC): supports countdown, timer, year, month, day and other time display.

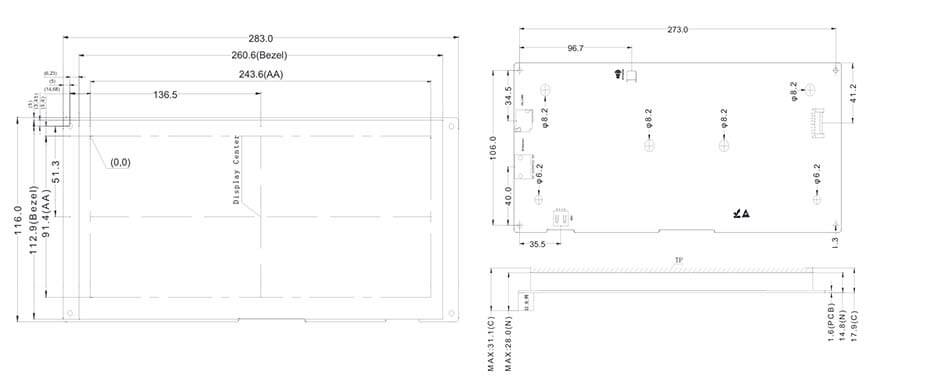

Effective display area of ​​the screen: 243.6mm×91.4mm
Product size: 283.0mm×116.0mm×31.1mm
Supporting host computer software: VisualTFT®
AV input: not supported
Sound playback: MP3 audio format (speaker 4Ω 2W, mono), shares storage space with pictures. If the sampling rate is 128kbps, it will occupy 0.95MB/minute of storage.
Audio connector specifications: PH2.0-2P
Video playback: MP4 video format, sharing storage space with pictures. If a video file has a resolution of 800*480, a video bitrate of 2400Kbps, an audio bitrate of 166Kbps, and a frame rate of 25Hz, it will occupy 17.8MB/minute of storage.
Ethernet interface: supports Ethernet protocol
CAN interface: not supported
WIFI: not supported

Reliability parameters
Working temperature: -40～+85℃
Storage temperature: -40～+85℃
Vibration test: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certification: ROHS, CE certification (EMI level: EN55022 ClassB standard)

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

10.3 Inch Serial Port Screen
Backlight: LED
Brightness (cd/m²): 1000
Backlight Lifespan (hours): >20,000
Contrast Ratio: 1400:1
Viewing Angles (L/R/T): 85/85/85/85

Touch panel
Touch Type: Capacitive Touchscreen
Capacitive Touch Modes: Single-touch and Slide Touch
Capacitive Touch Transmittance: Over 90%
Capacitive Touch Lifespan: Theoretically, unlimited touches are possible; touch lifespan is dependent on operating environment (dust and humidity).

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
