0.48"-5" LCD Display (0.95”)

0.95 Inch High Brightness Display 1000nits Sunlight Readable IPS 128x128 SPI TFT LCD Display

Part No.:ET095QF01-H
Size:0.95″ inch
Resolution:128x128
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:25.24x27.14mm
Active Area:23.04x23.04mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

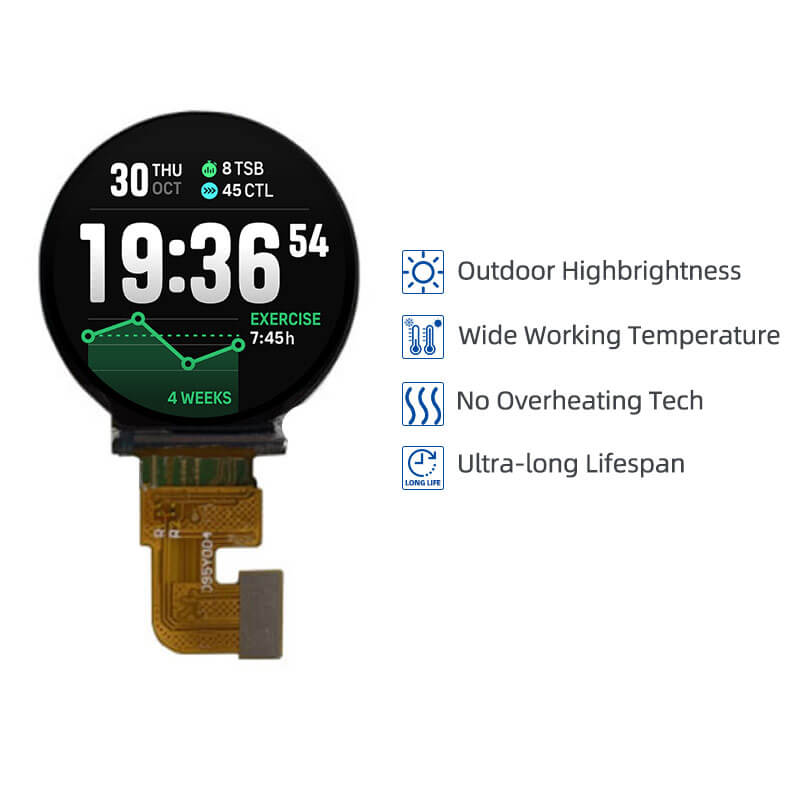

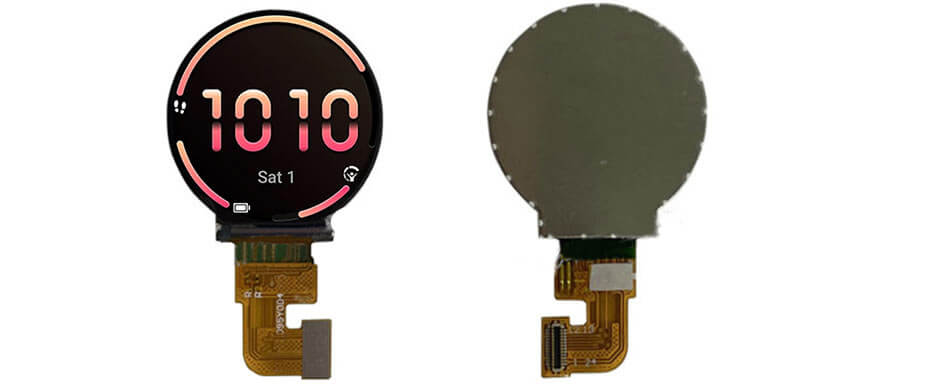

0.95 Inch High Brightness LCD Display Overview
0.95 Inch High Brightness Display 1000nits Sunlight Readable IPS 128x128 SPI TFT LCD Display.

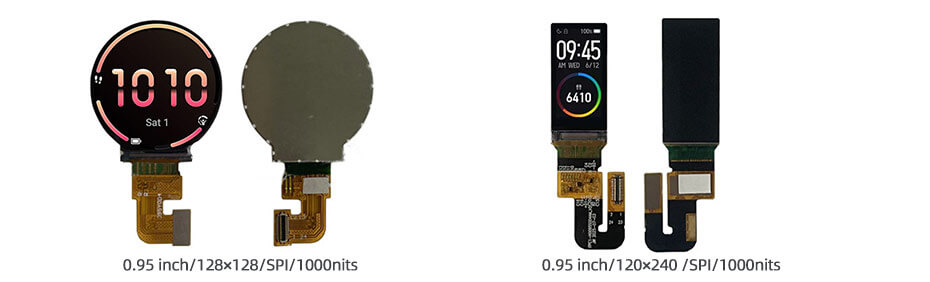

More 0.95 Inch High Brightness LCD Display For Reference
ET095QF01-H (LCD, 128x128, SPI, 1000nits, -20~70°C, 25.24x27.14mm)
ET095AM01-HT (AMOLED, 120x240, SPI, 1000nits, -20~70°C, 12.8x27.35mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
