10.2"-17.3" LCD Display (10.3")

10.3 Inch 7680x4320 Monochrome LCD Display 8k MIPI IPS LCD Module For 3D Printer

Part No.:ET103FUH01-D
Size:10.3″ inch
Resolution:7680x4320
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:232.096x138.402mm
Active Area:228.096x128.304mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:/
Operation / Storage Temp:-20~60°C / -40~80°C
Touch:no

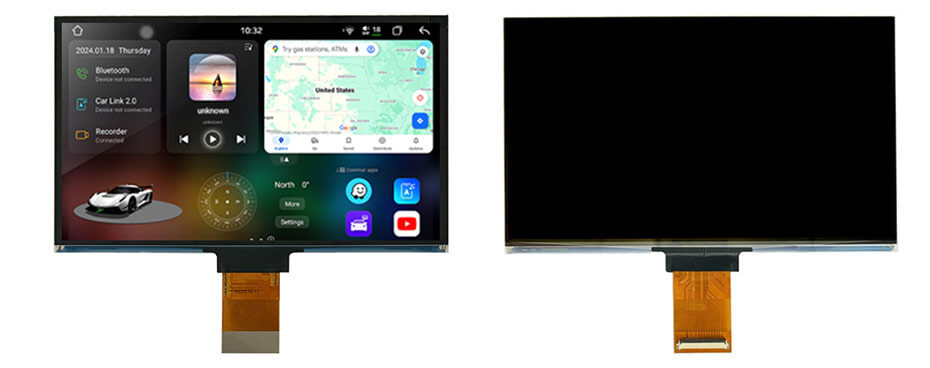

10.3 Inch 7680x4320 Display Overview
10.3 Inch 7680x4320 Monochrome LCD Display 8k MIPI IPS LCD Module For 3D Printer.

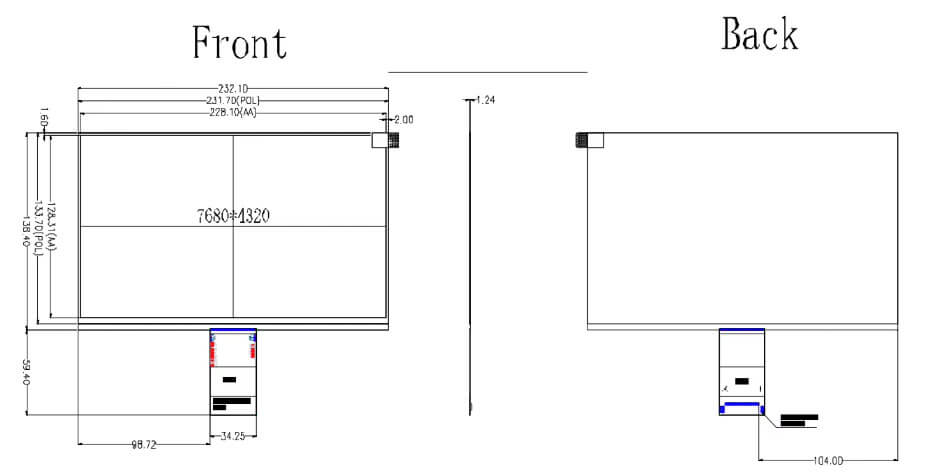

10.3 Inch 7680x4320 Display Drawing

4k &8K Display Applications

Production and Manufacturing
