11.6 Inch 3840x2160 LCD Display eDP 550nits High Brightness IPS LCD Module For 3D Printer

11.6 Inch 7680x4320 Display Overview

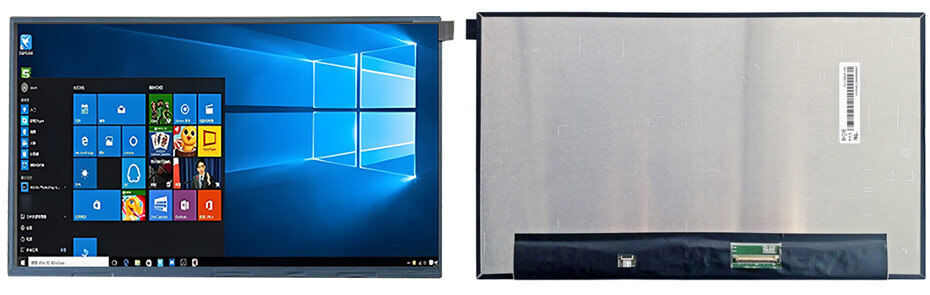

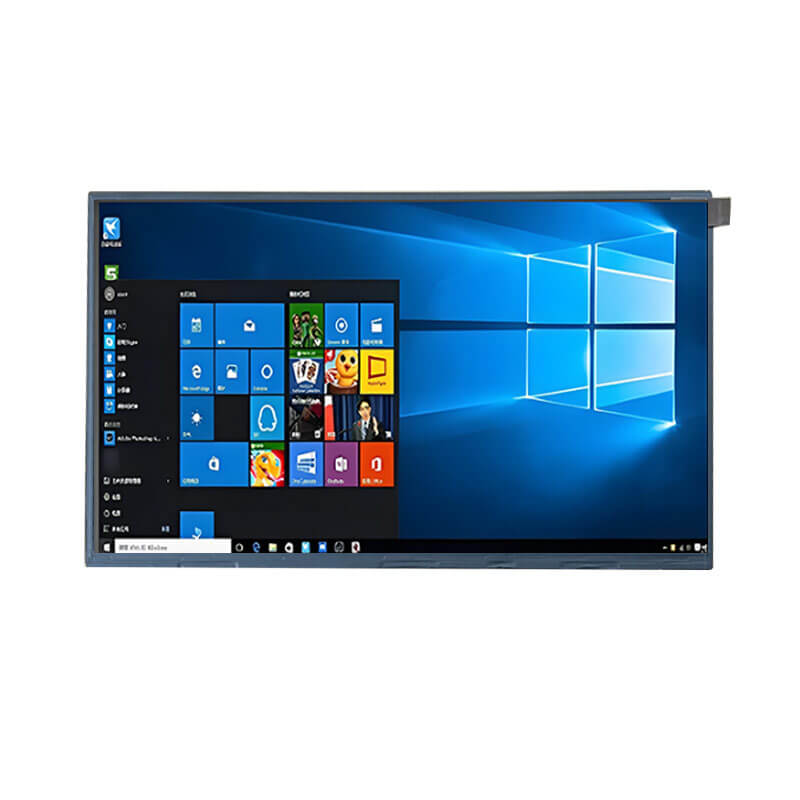

NV116QUM-N31 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 379 PPI. It features active area of 256.896(W)×144.504(H) mm, outline size of 265.9(W)×158.2(H)×4.8(D) mm, with surface treament of Hard coating (3H), net weight of 206g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV116QUM-N31 can provides 550 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 9K hours, With LED Driver. NV116QUM-N31 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

4k &8K Display Applications

Production and Manufacturing
