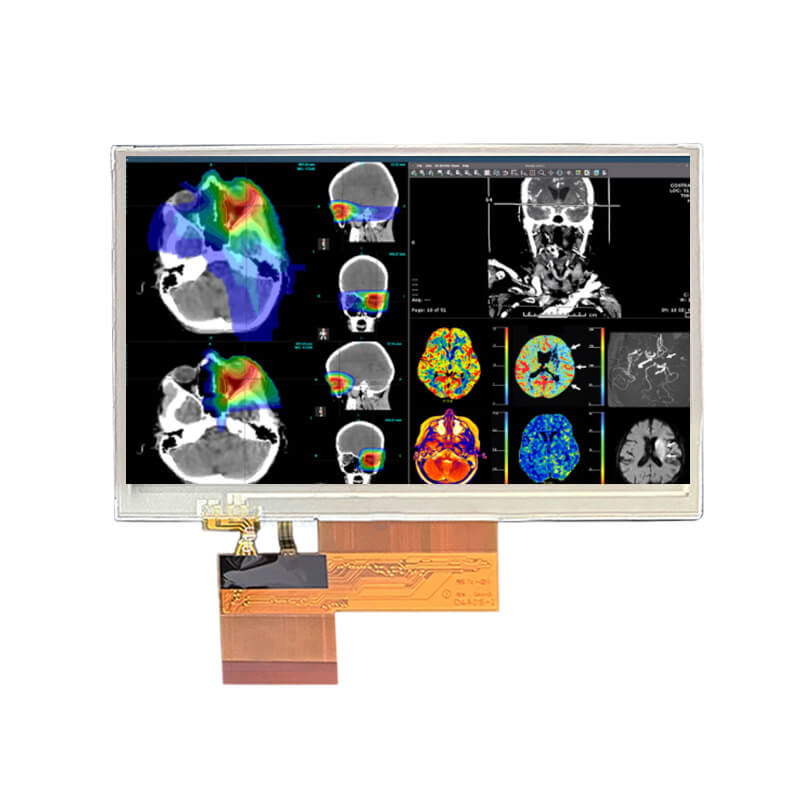

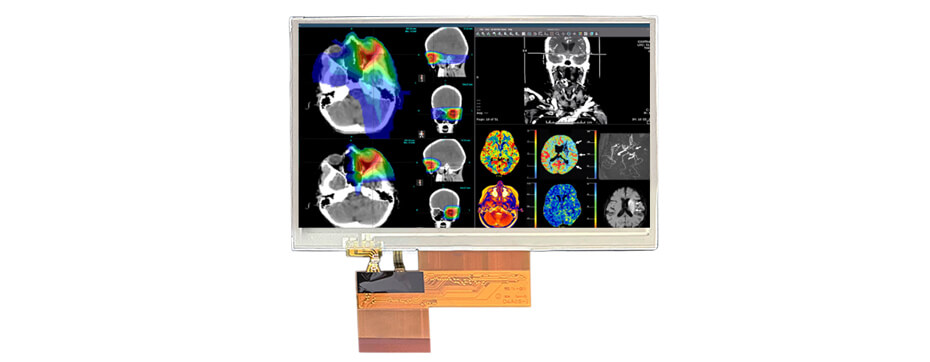

COM43T4M05GTC Ortustech 4.3 Inch Blanview Display 480×272 TFT LCD Display With 4-wire Resistive Touch

COM43T4M05GTC Ortustech 4.3 Inch Blanview Display 480×272 TFT LCD Display With 4-wire Resistive Touch Overview

COM43T4M05GTC is a 4.3 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch. COM43T4M05GTC supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, with surface treament of Hard coating (3H). As a TN, Normally White, Transmissive LCM product, COM43T4M05GTC can provides 400:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
