1.8 Inch AMOLED Display Overview

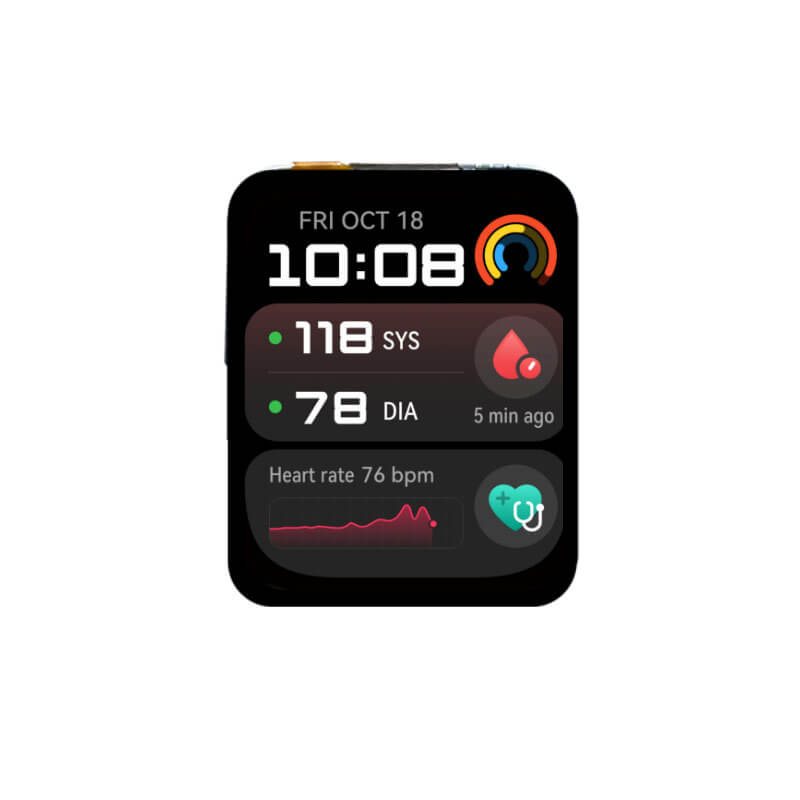

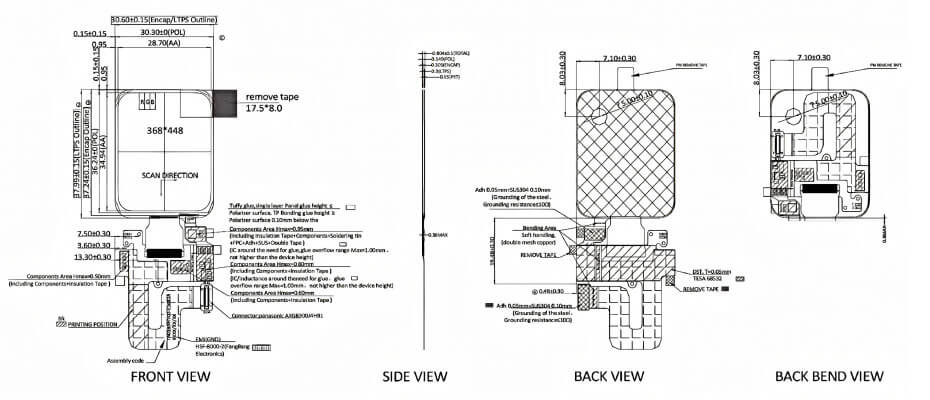

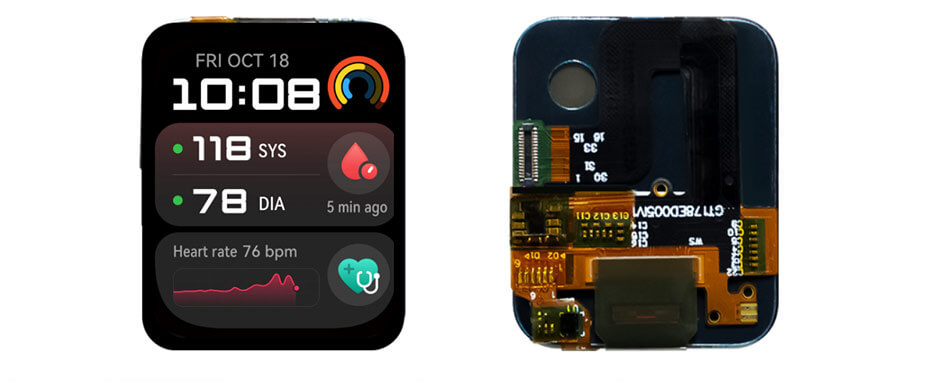

ET018AM01-GT is a 1.8 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET018AM01-GT supports a resolution of 368×448 with an approximate 4:5 aspect ratio (W:H). It features an active area of 28.7(W) × 34.94(H) mm and an outline dimension of 30.6(W) × 37.99(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). With integrated On-Cell touch functionality, ET018AM01-GT is suitable for interactive applications requiring compact, high-quality display performance.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
