2 Inch AMOLED Display Overview

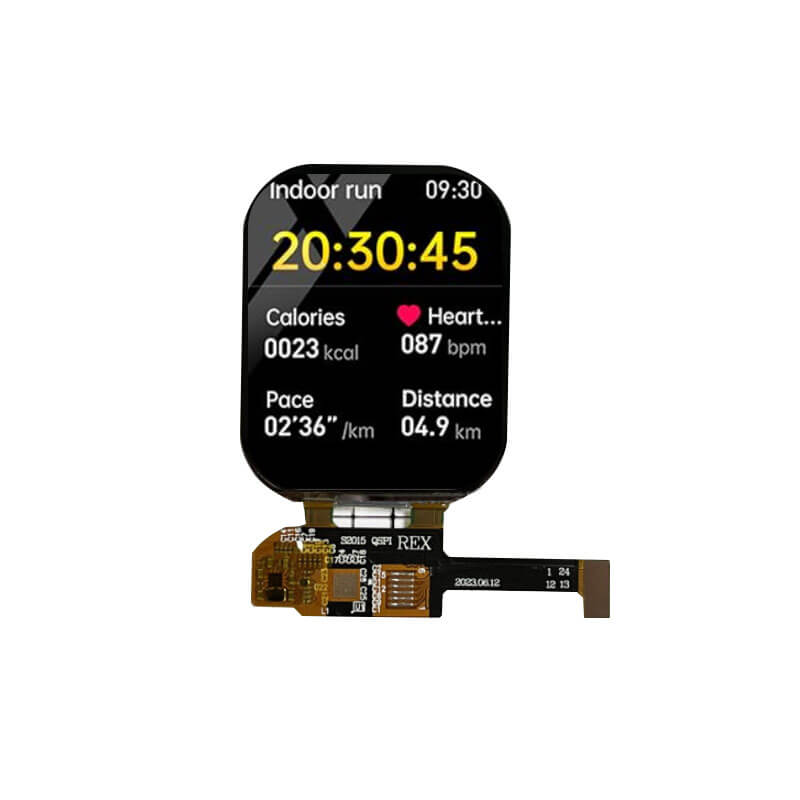

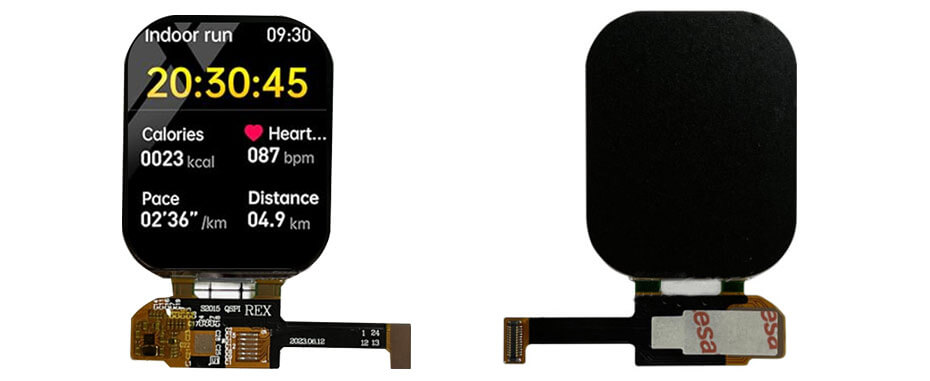

ET020AM01-H is a 2 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET020AM01-H supports a resolution of 240×296 with an approximate 5:6 aspect ratio (W:H) and offers wide viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 32.04(W) × 39.52(H) mm and an outline dimension of 33.74(W) × 42.98(H) mm, and adopts an SPI interface for signal transmission. The display provides a high brightness of 500 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). Designed without a touch function, ET020AM01-H is suitable for compact, high-brightness, high-resolution display applications.
More 2 Inch AMOLED Displays For Reference
ET020AM01-H (240×296, SPI, IPS, 500nits, -20~70°C, 33.74×42.98mm)
ET020AM02-HT (368×448, MIPI, IPS, 800nits, -20~70°C, 34.64×42.89mm, On-Cell)
ET020AM03-HT (410×502, MIPI, IPS, 800nits, -20~70°C, 33.07×41.05mm, On-Cell)
AMOLED Displays Technology
