1.77 Inch High Brightness Display 1000nits 128x160 CPU TFT LCD Display For Handheld PDA

1.77 Inch High Brightness LCD Display Overview

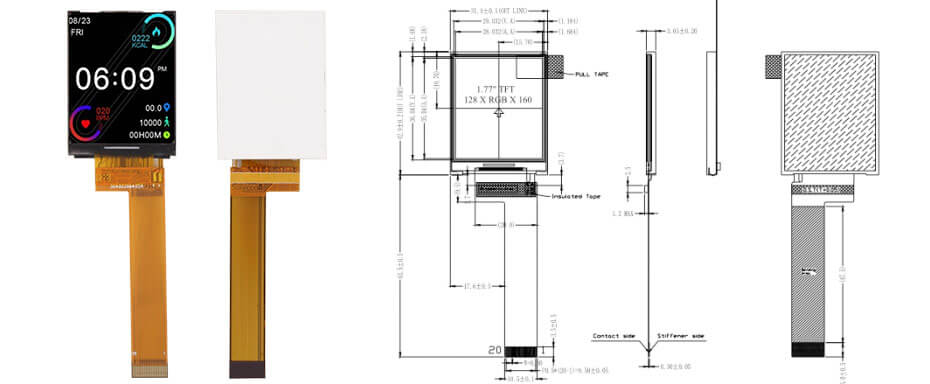

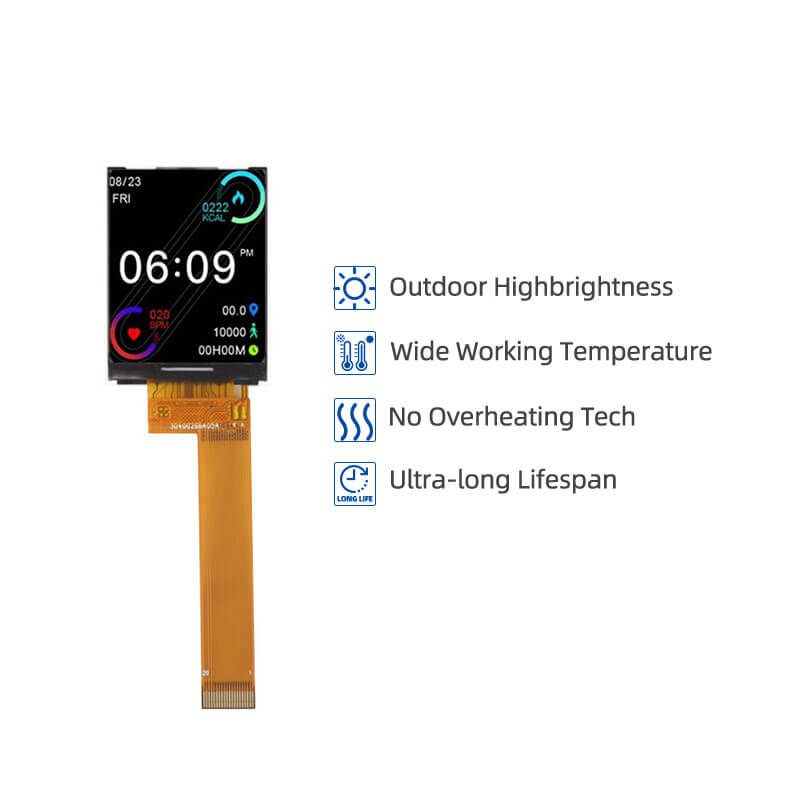

ET018QE01-PV is a 1.77-inch diagonal high-brightness transmissive TFT LCD display designed for handheld PDAs. It supports a resolution of 128×160 with a CPU interface. The display features an active area of 28.032(W)×35.04(H) mm and an outline dimension of 31.4×42.9 mm. ET018QE01-PV provides a typical brightness of 1000 cd/m², offers viewing angles of 45°/45°/40°/20° (L/R/U/D), operates within –20 °C to 70 °C (storage –30 °C to 80 °C), and does not include touch functionality.

More 1.77 Inch High Brightness LCD Display For Reference
ET018QE01-PV (128x160, CPU, 1000nits, -20~70°C, 31.4x42.9mm)

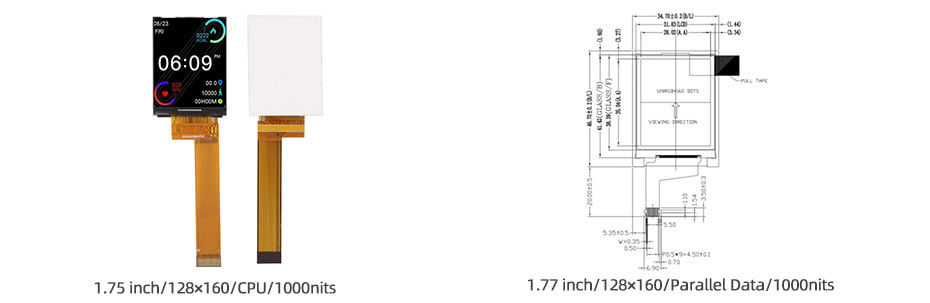

ET018QE02-SD (128x160, Parallel Data, 1000nits, -20~70°C, 34.7x46.7mm)
