1.75 Inch High Brightness LCD Display Overview

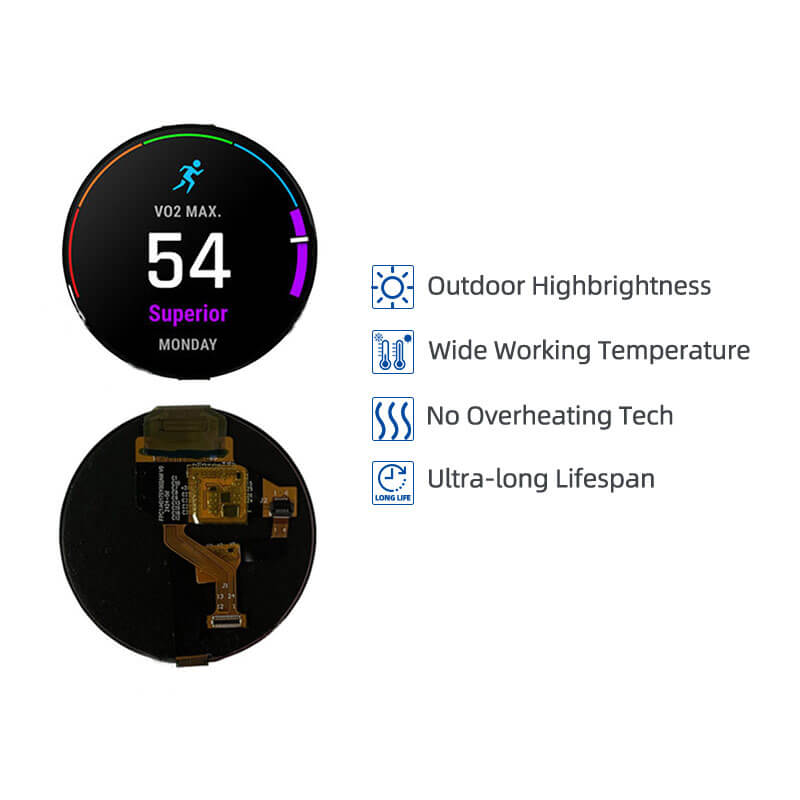

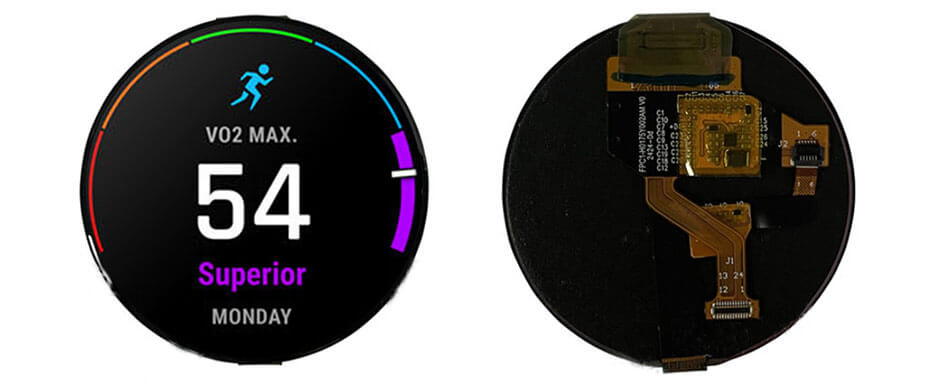

ET018AM01-HT is a 1.75-inch diagonal high-brightness AM-OLED round display, supporting a resolution of 466×466 with a MIPI interface. The display features an active area of 43.76(W)×43.76(H) mm and an outline dimension of 47.4×47.4 mm. ET018AM01-HT provides a typical brightness of 700 cd/m², supports capacitive touch functionality, operates within –20 °C to 70 °C (storage –30 °C to 80 °C), and offers wide viewing angles of 85° in all directions.
Outdoor Highbrightness LCD Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
