1.6 Inch High Brightness Display 700nits 228x460 MIPI/CPU/SPI OLED Display With On-Cell Touch

Part No.:ET016AM01-HT
Size:1.6″ inch
Resolution:228x460
Panel Interface:MIPI/CPU/SPI
Display mode:AM-OLED
Outline Dimension:19.48x38.48mm
Active Area:17.78x35.88mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

1.6 Inch High Brightness LCD Display Overview

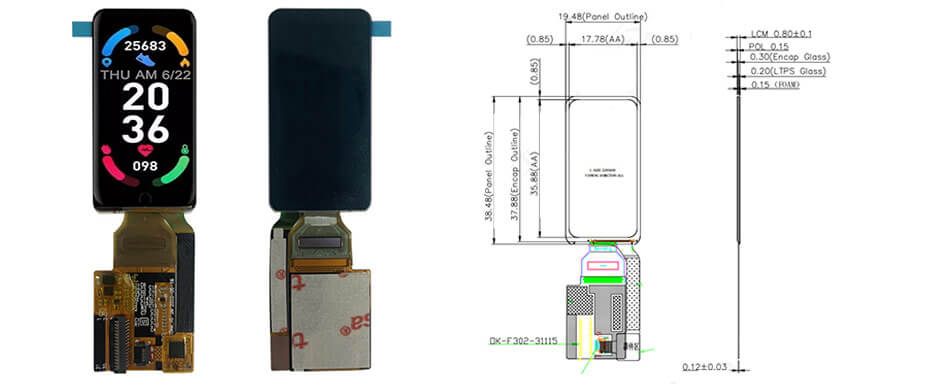

ET016AM01-HT is a 1.6-inch diagonal high-brightness AM-OLED display, supporting a resolution of 228×460 with MIPI/CPU/SPI interface options. The display features an active area of 17.78(W)×35.88(H) mm and an outline dimension of 19.48×38.48 mm. ET016AM01-HT provides a typical brightness of 700 cd/m², supports on-cell touch functionality, operates within –20 °C to 70 °C (storage –30 °C to 80 °C), and offers wide viewing angles.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
