0.48"-5" LCD Display (1.7")

1.7 Inch Transflective Display IPS 300x344 SPI/DSPI/QSPI Sunlight Readable LCD Display For Handheld PDA

  • Part No.:HSD017GPW3-90000A-PX
  • Size:1.7″ inch
  • Resolution:300x344
  • Panel Interface:SPI/DSPI/QSPI
  • Display mode:Transflective

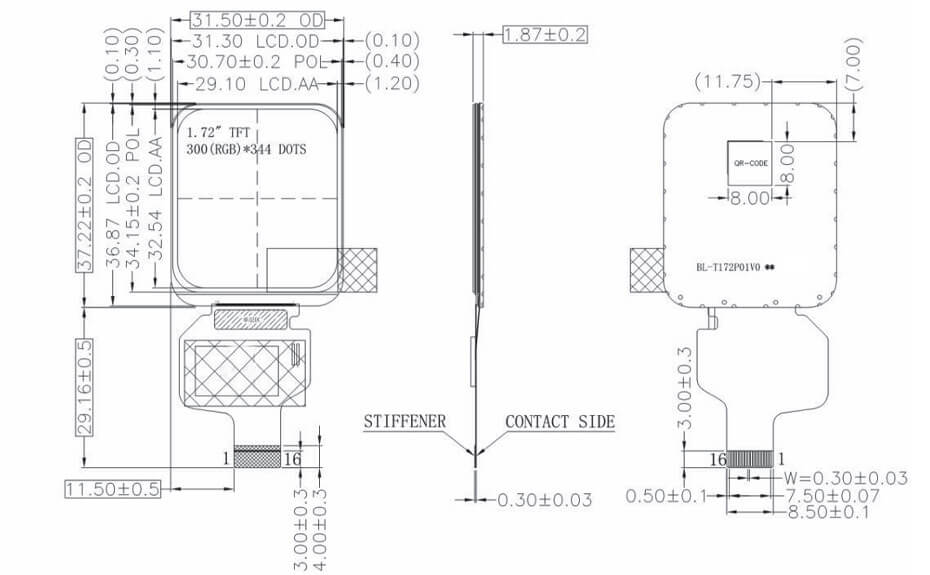

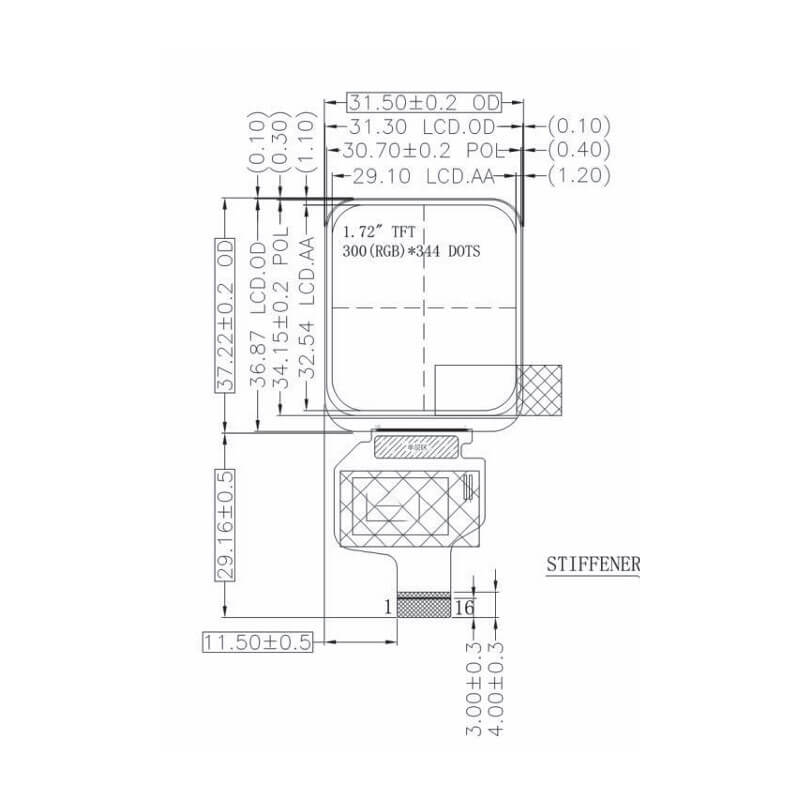

  • Outline Dimension:31.5x37.22mm
  • Active Area:29.1x32.54mm
  • Viewing Angle L/R/U/D:60/60/30/30
  • Brightness(cd/m2):20cd/m²
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no


1.7
Inch Transflective LCD Display Overview
1.7 Inch Transflective Display IPS 300x344 SPI/DSPI/QSPI Sunlight Readable LCD Display For Handheld PDA.


Production and Manufacturing

X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
