0.48"-5" LCD Display (1.54")

1.54 Inch TFT LCD Display 240×240 CPU High Brightness 1000nits LCD Display For Cycling Computer Bike Display

Part No.:ET015QV02-T
Size:1.54″ inch
Resolution:240x240
Panel Interface:CPU
Display mode:Transmissive
Outline Dimension:31.92x35.11mm
Active Area:27.72x27.72mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1000nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.54 Inch Cycling Computer Bike Display Overview

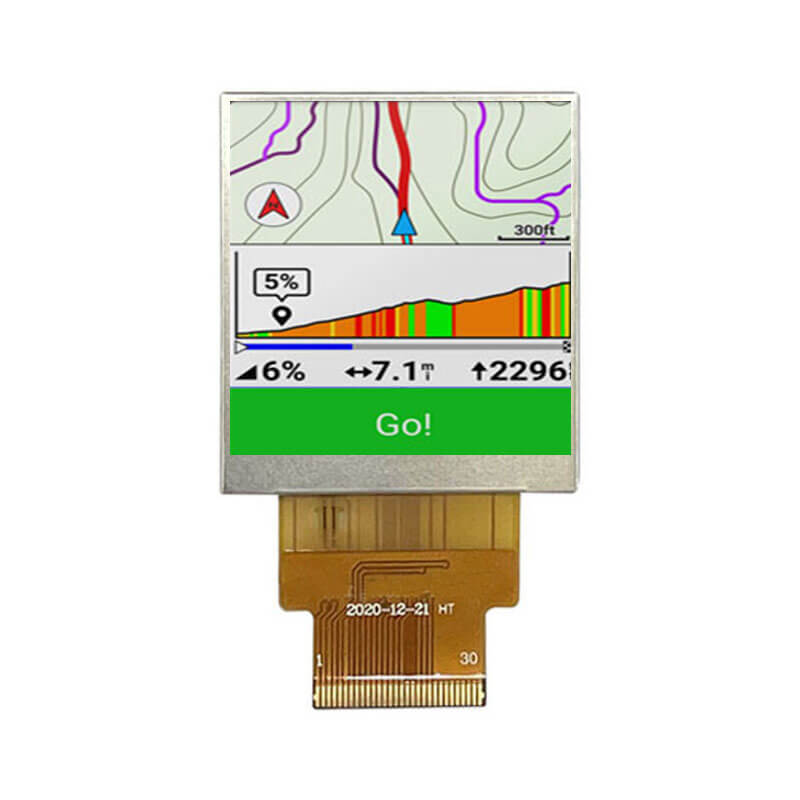

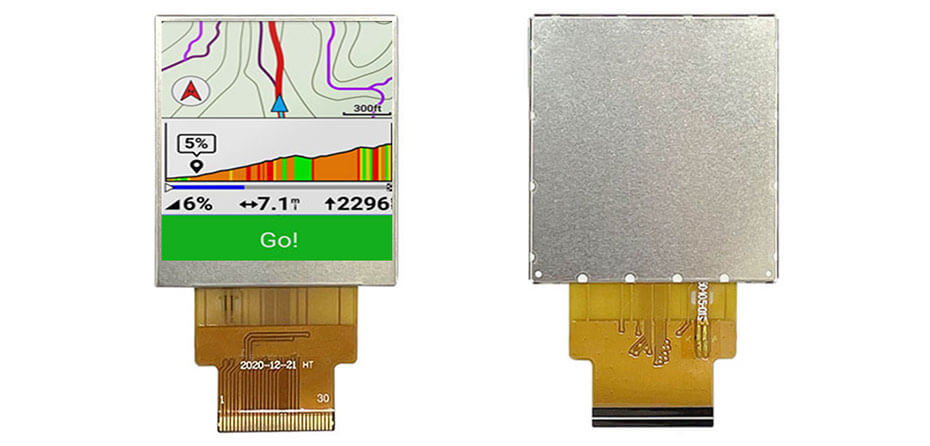

ET015QV02-T is a 1.54 inch diagonal TFT LCD display module, featuring a transmissive display mode. It supports a resolution of 240×240 with a 1:1 aspect ratio (W:H), delivering clear and balanced visual performance. The panel adopts a CPU interface for stable data transmission. It offers an active area of 27.72(W) × 27.72(H) mm and an outline dimension of 31.92(W) × 35.11(H) mm. With a high brightness of up to 1000 cd/m², it ensures excellent readability even under strong ambient light, making it suitable for outdoor applications such as cycling computers and bike displays. The display provides wide viewing angles of 80 degrees in all directions (L/R/U/D), ensuring consistent image quality. It operates reliably within a temperature range of -20°C to 70°C and can be stored between -30°C and 80°C. This model does not include a touch panel.
1.54 Inch TFT LCD Display 240×240 CPU High Brightness 1000nits LCD Display For Cycling Computer Bike Display
