6.2 Inch TFT LCD Display 360×960 High Brightness 500nits MIPI LCD Display For Automotive

6.2 Inch Automotive Display Overview

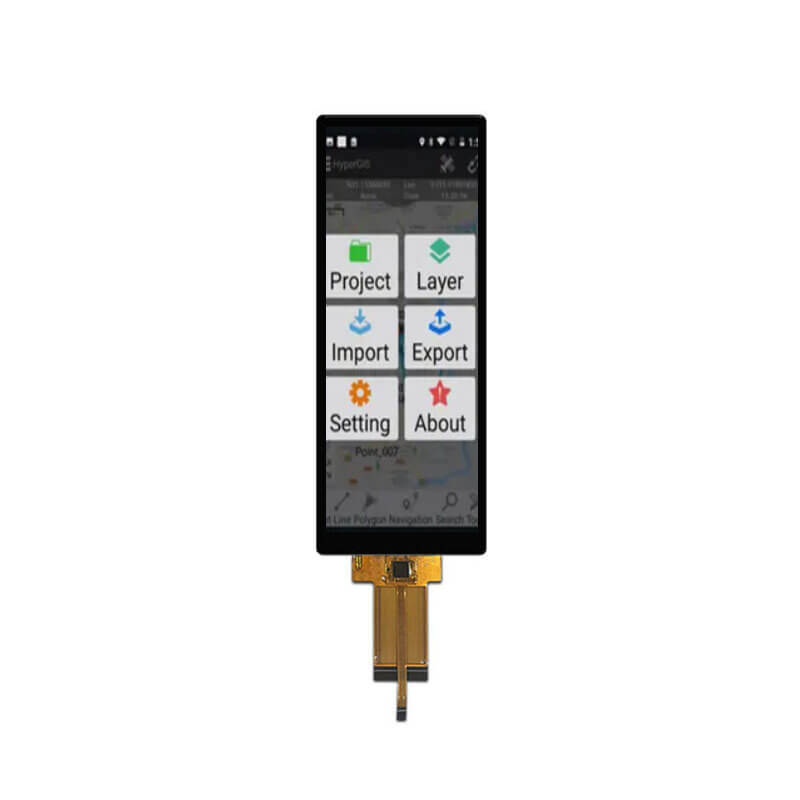

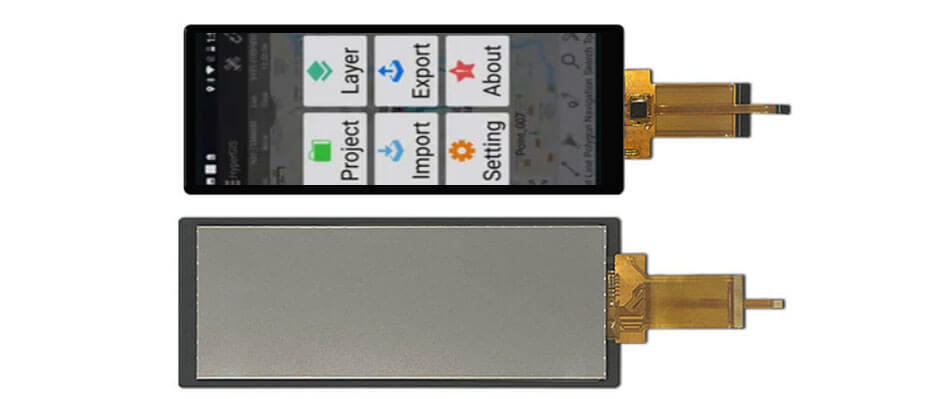

ET062NH02-TT is a 6.2-inch TFT LCD display screen product designed for automotive applications, it supports display resolution 360×960 with a portrait aspect ratio, and uses a MIPI interface. It features a transmissive display mode with IPS wide viewing angle (L/R/U/D), delivering consistent image quality from all directions. The ET062NH02-TT has an active area of 55.3(W)×147.46(H) mm and an outline dimension of 68(W)×165(H)×3.93(D) mm. It provides a typical brightness of 500 cd/m², making it suitable for medium to high ambient light environments. This model supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, ensuring reliable performance in automotive environments. Touch functionality is not included.

More 6.2 Inch Automotive Display For Reference
HSD062IDW1-A02 (800×480, TTL, IPS, 400nits, -20~70°C, 155.2×88.2mm)
ET062NH02-T (360×960, TTL, IPS, 800nits, -20~70°C, 58.1×154.9mm)
ET062NH02-TT (360×960, MIPI, IPS, 500nits, -20~70°C, 68×165mm)
ET062WS01-T (1024×600, TTL, IPS, 750nits, -30~80°C, 144.27×88.1mm)

Automotive Display Solution
