1.5 Inch Square Display Overview

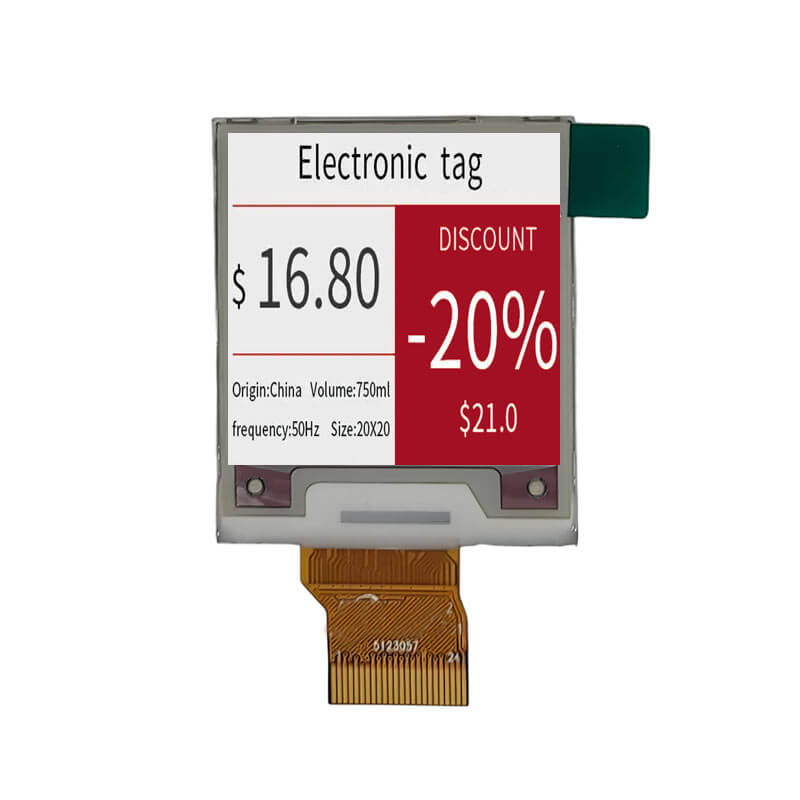

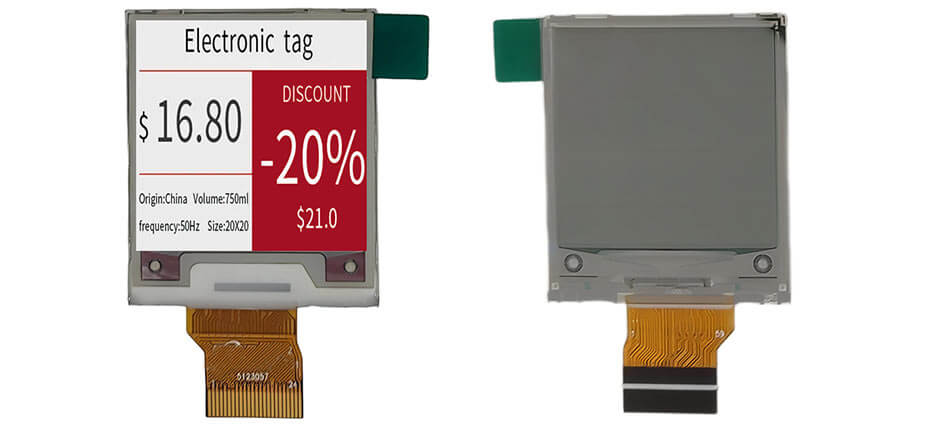

ET015SQEP01-A is a 1.5-inch diagonal square electronic paper (E-Ink) display featuring a 200×200 resolution and supporting an SPI interface. Based on electrophoretic display technology, it is a reflective, bi-stable screen that does not require a backlight and consumes power only during image updates. The display features an active area of 27(W)×27(H) mm and an outline size of 31.8(W)×37.32(H) mm. ET015SQEP01-A is designed for low-power applications and supports operation from 0 °C to 40 °C, with a storage temperature range of –25 °C to 60 °C. This model does not include touch functionality.

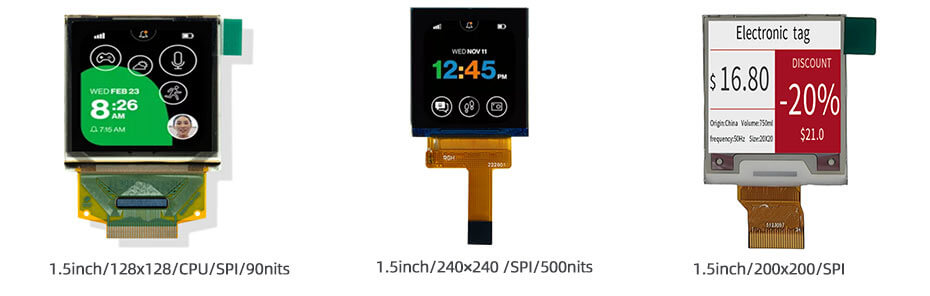

More 1.5 Inch Square Display For Reference
ET015SQ01-TV (OLED, 128x128, CPU/SPI, 90nits, -30~80°C, 33.8x34mm)
ET015SQ01-R (LCD, 240x240,SPI, 500nits, -20~70°C, 31.52x33.72mm)
ET015SQEP01-A (EPD,200x200, SPI, IPS, 0~40°C, 31.8x37.32mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
