7.1"-10.1" LCD Display (8.8")

8.8 Inch Square Display IPS 768x768 LVDS 1000nits High Brightness TFT LCD Display

Part No.:ET088SQ01-AP
Size:8.8″ inch
Resolution:768x768
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:179.4x179.6mm
Active Area:158.4x158.4mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

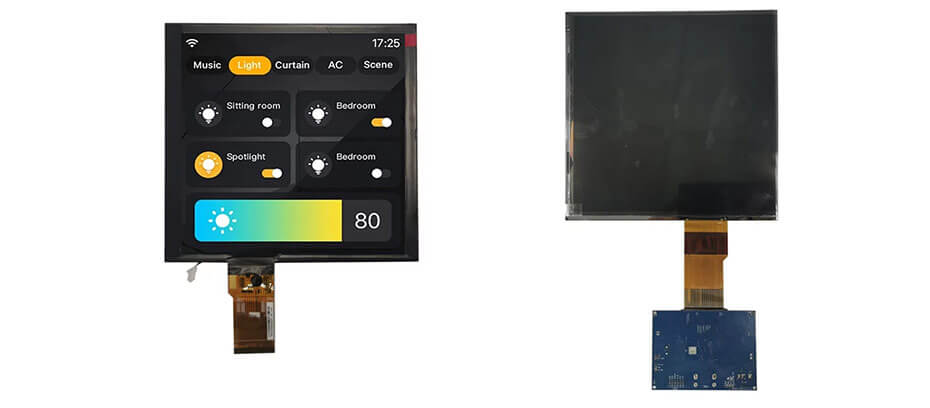

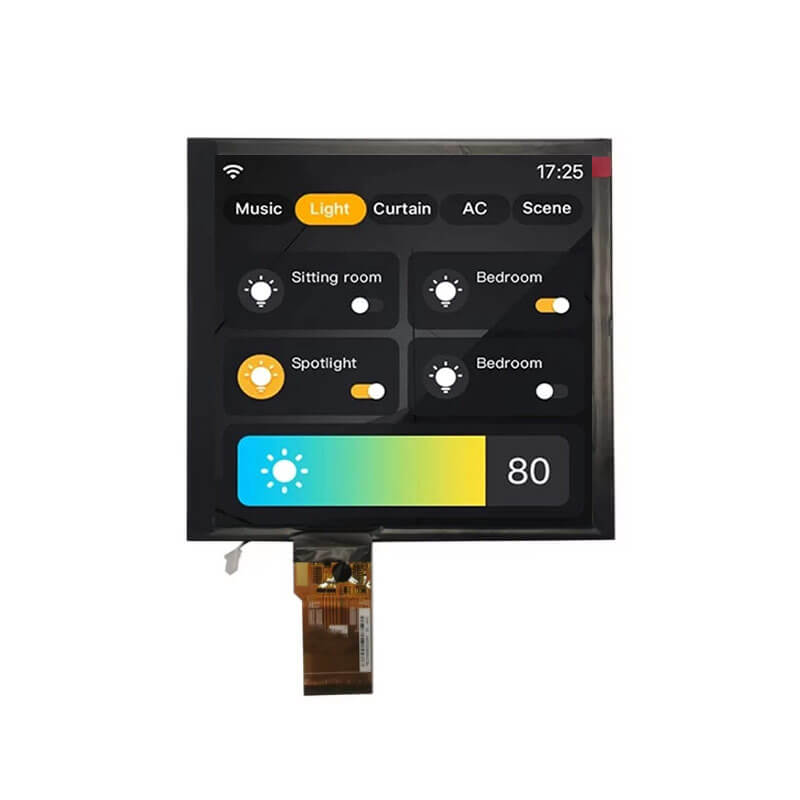

8.8 Inch Square Display Overview
ET088SQ01-AP is an 8.8-inch diagonal square IPS TFT LCD display with a resolution of 768×768, featuring an LVDS interface. The display operates in transmissive mode and has an active area of 158.4(W)×158.4(H) mm, with an outline dimension of 179.4(W)×179.6(H) mm. ET088SQ01-AP provides high brightness of 1000 cd/m², viewing angles of 85° in all directions (L/R/U/D), and supports operation from –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
