1.5 Inch Square Display 128x128 CPU/SPI Monochrome OLED Wide Temperature Micro Display

Part No.:ET015SQ01-TV
Size:1.5″ inch
Resolution:128x128
Panel Interface:CPU/SPI
Display mode:OLED
Outline Dimension:33.8x34mm
Active Area:26.855x26.864mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:90(Typ.)
Operation / Storage Temp:-30~70°C / -40~80°C
Touch:no

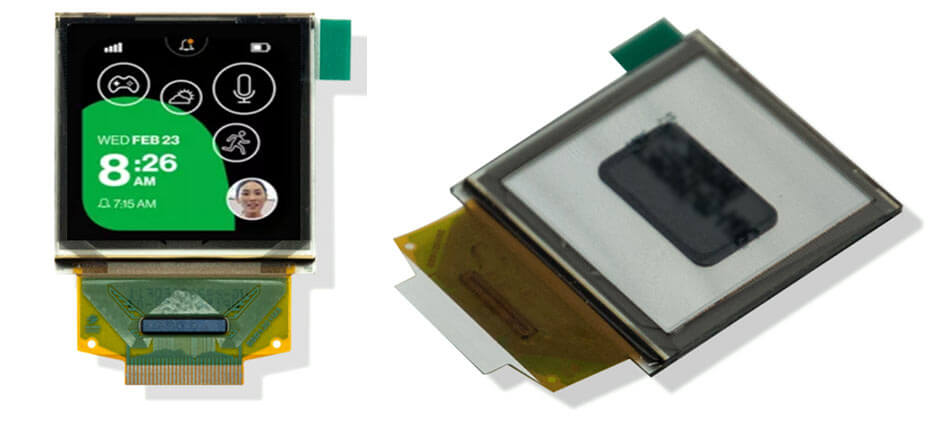

1.5 Inch Square Display Overview
ET015SQ01-TV is a 1.5-inch diagonal square monochrome OLED micro display, featuring a 128×128 resolution and supporting CPU/SPI interfaces. As a self-emitting OLED display, it operates without a backlight and provides wide viewing angles of 80° in all directions (L/R/U/D). The display features an active area of 26.855(W)×26.864(H) mm and an outline size of 33.8(W)×34(H) mm. ET015SQ01-TV delivers a typical brightness of 90 cd/m² and is designed for wide-temperature operation from –30 °C to 70 °C, with storage capability from –40 °C to 80 °C. This model does not include touch functionality.

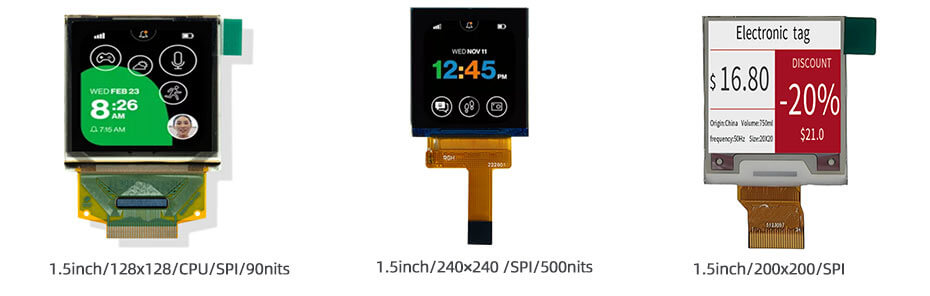

More 1.5 Inch Square Display For Reference
ET015SQ01-TV (OLED, 128x128, CPU/SPI, 90nits, -30~80°C, 33.8x34mm)
ET015SQ01-R (LCD, 240x240,SPI, 500nits, -20~70°C, 31.52x33.72mm)
ET015SQEP01-A (EPD,200x200, SPI, IPS, 0~40°C, 31.8x37.32mm)
