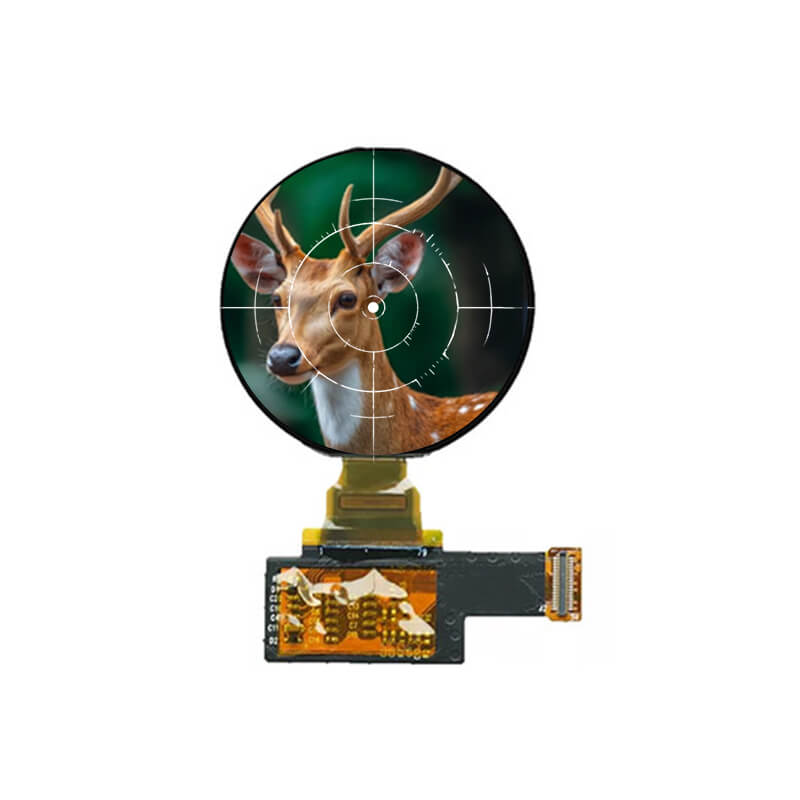

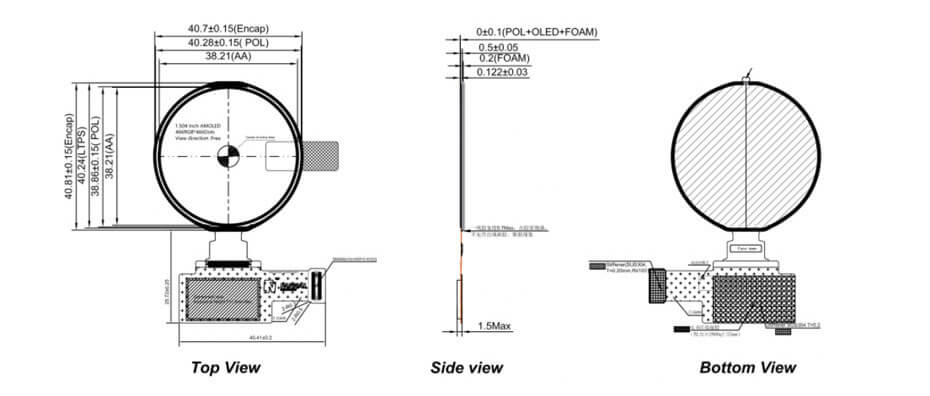

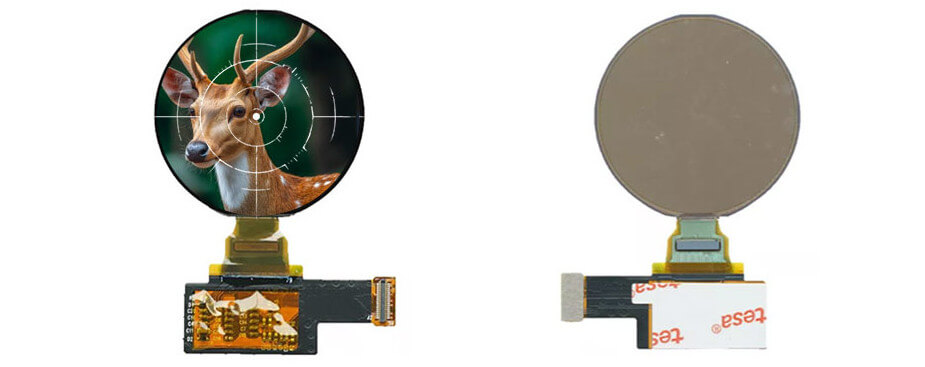

ET015AM01-F is a 1.5-inch diagonal AMOLED display module, featuring a self-emitting structure for vivid image quality. It supports a 466×466 resolution with a 1:1 square aspect ratio and an ultra-high pixel density, delivering sharp and detailed visuals. The module offers a typical brightness of 600 cd/m² and an 80°/80°/80°/80° wide viewing angle, ensuring consistent image quality across various viewing directions. Its active area measures 38.207(W)×38.207(H) mm, while the overall outline dimensions are 40.71(W)×40.81(H) mm. The panel utilizes a MIPI interface for high-speed data transmission and includes an integrated projected capacitive touch panel for intuitive user interaction. Designed for reliable performance in diverse environments, the ET015AM01-F operates within a temperature range of -20°C to +70°C and can be stored between -40°C and +80°C, making it an ideal display solution for measuring rangefinder applications.

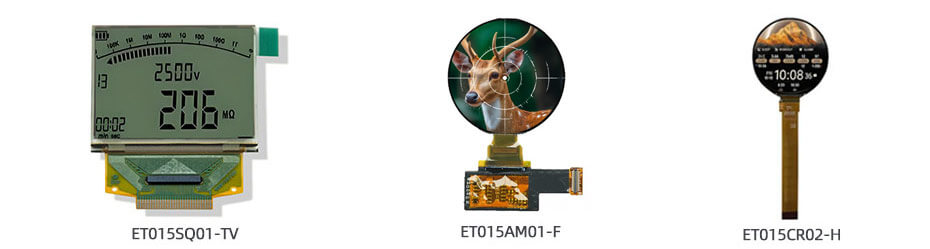

More 1.5 Inch Measuring Rangefinder Display Solution For Reference
ET015SQ01-TV (OLED, 128×128, CPU/SPI, 90nits, -30~70°C, 33.8×34mm)
ET015AM01-F (OLED, 466×466, MIPI, 600nits, -20~70°C, 40.71×40.81mm)
ET015CR02-H (LCM, 360×360, SPI, 400nits, -20~70°C, 40.47×41.96mm)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
