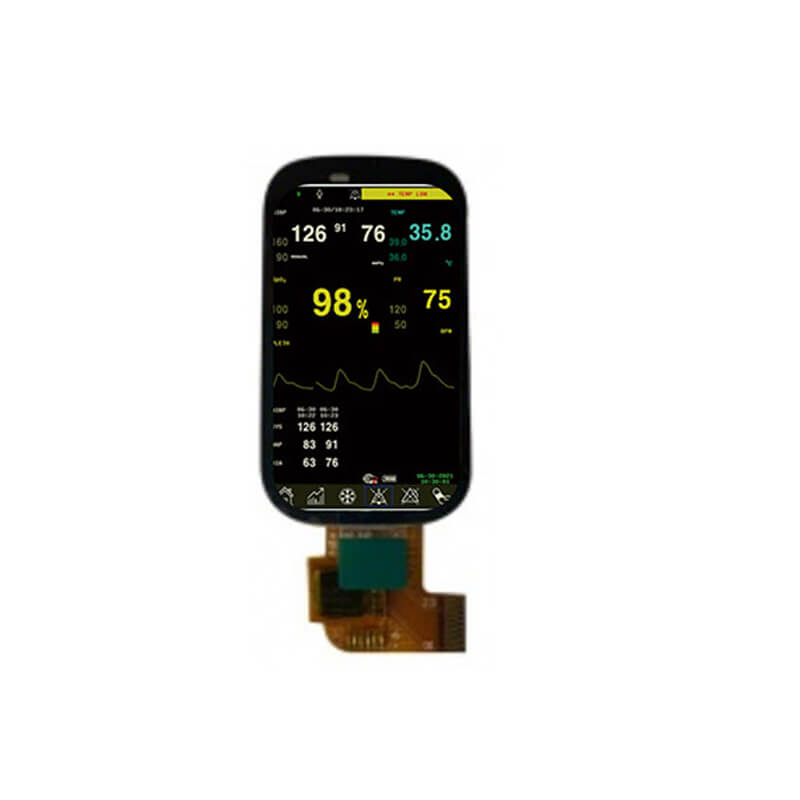

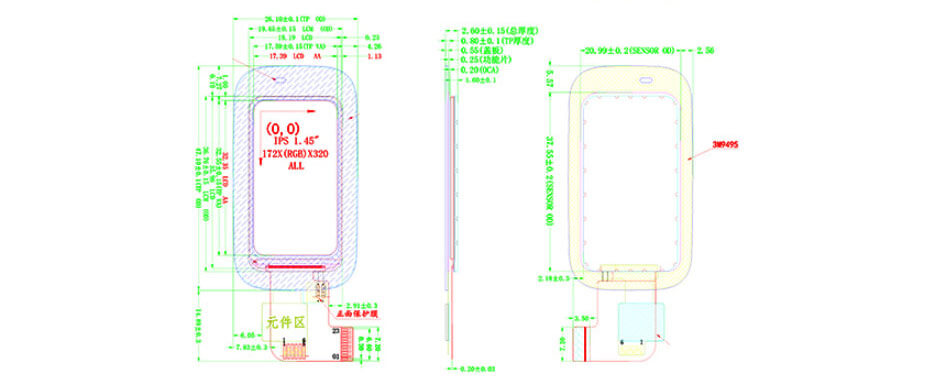

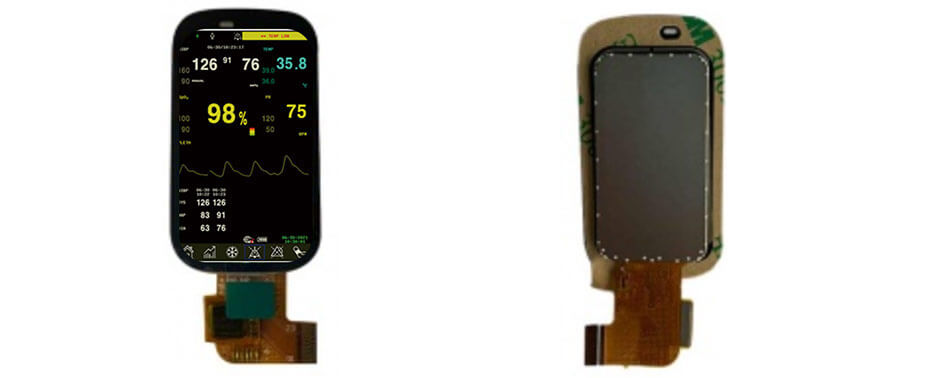

ET015QV01-R is a 1.45 inch diagonal TFT LCD display designed for healthcare and medical display solutions. ET015QV01-R supports a resolution of 172×320 pixels with a CPU interface and a transmissive display mode. It features an active area of 17.39(W)×32.35(H) mm and an outline dimension of 26.1(W)×47.1(H) mm. The display provides a brightness of 470 cd/m² (Typ.) and a wide viewing angle of L/R/U/D 85°/85°/85°/85°. ET015QV01-R supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C. The display integrates a touch panel, making it suitable for compact healthcare equipment, medical instruments, handheld medical devices, portable medical equipment, and other interactive embedded medical display applications.
More 1.45 Inch Healthcare & Medical Display Solution For Reference
ET015QV01-TS (LCM, 172×320, Serial RGB, -20~70°C, 19.39×36.28mm)
ET015QV01-R (LCM, 172×320, CPU, -20~70°C, 26.1×47.1mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
