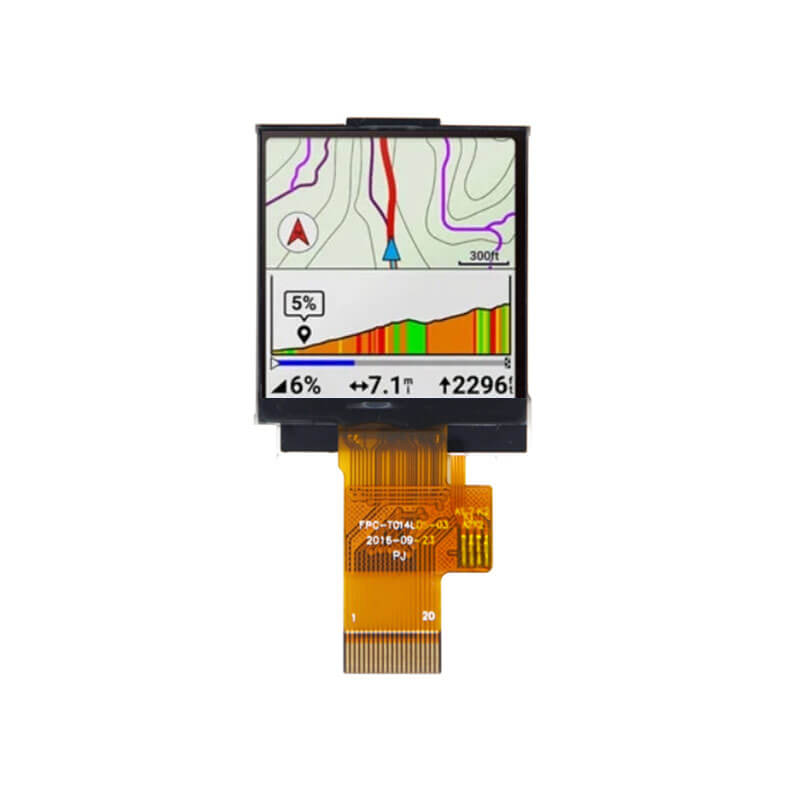

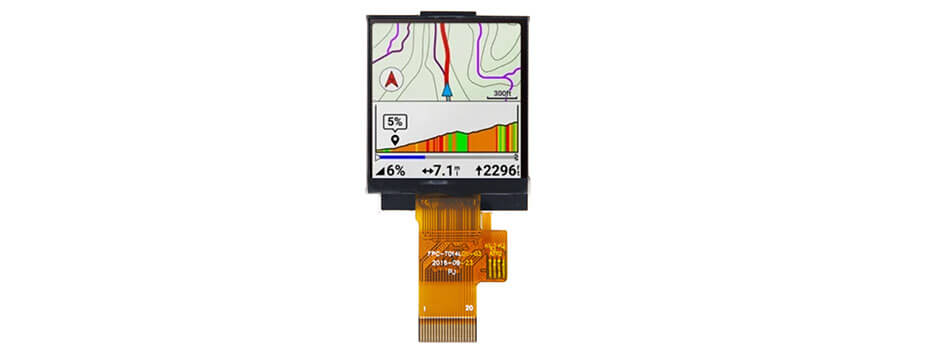

1.4 Inch Wide Temperature TFT LCD Display 128×128 SPI -30°C to 85°C Square Display

1.4 Inch Wide Temperature LCD Display Overview
ET014WT01-XH is a 1.4 inch diagonal TFT-LCD display screen product. ET014WT01-XH supports a display resolution of 128×128 with a square aspect ratio, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 25.25(W) × 25.25(H) mm and an outline dimension of 30.9(W) × 36.5(H) mm. The module adopts a transmissive display mode and supports an SPI interface for communication. ET014WT01-XH provides a minimum display brightness of 150 cd/m² and offers a viewing angle of 55/55/55/45 (L/R/U/D). Designed for wide temperature applications, it supports an operating temperature range of -30°C to 85°C and a storage temperature range of -30°C to 85°C. This display module does not include a touch panel.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
