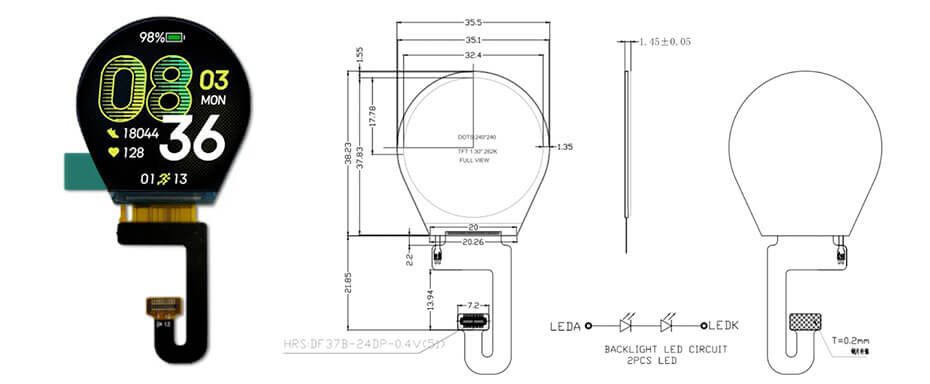

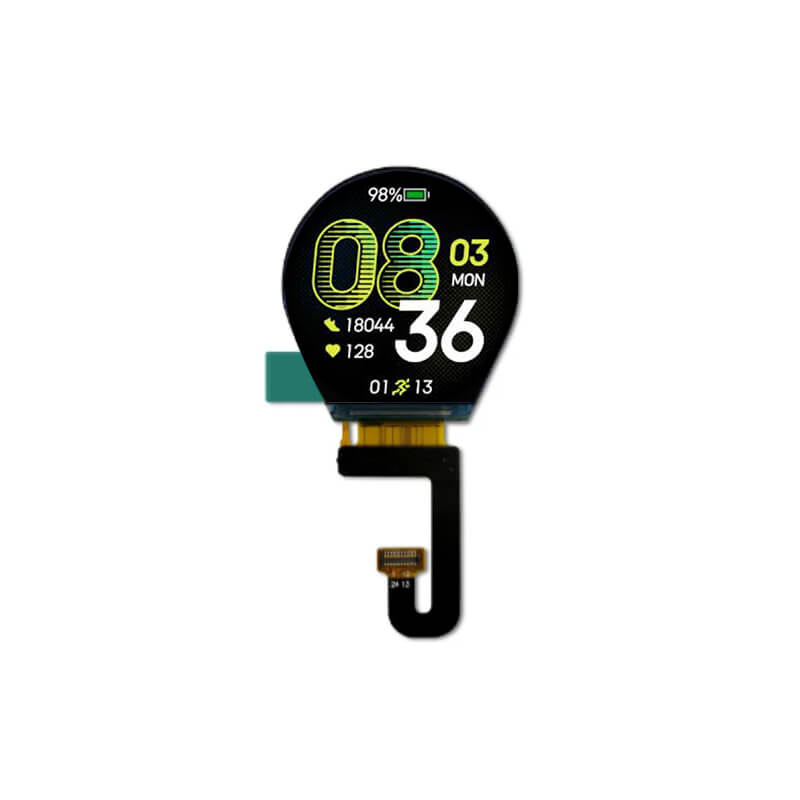

ET013CR01-TS is a 1.3-inch diagonal TFT LCD display module designed for healthcare and medical display solutions. ET013CR01-TS supports a resolution of 240×240 pixels with a CPU interface and features a transmissive display mode. It provides an active area of 32.4(W)×32.4(H) mm and an outline dimension of 35.5(W)×38.23(H) mm, with wide viewing angles of 80° in the left, right, up, and down directions. The display delivers a typical brightness of 300 cd/m² for clear and reliable image presentation. ET013CR01-TS operates within a temperature range of -10°C to 60°C and supports storage temperatures from -20°C to 70°C. With a non-touch design, this compact TFT LCD module is suitable for medical instruments, healthcare equipment, portable diagnostic devices, and other embedded display applications.
More 1.3 Inch Healthcare & Medical Display Solution For Reference
ET013CR01-TS (OLED, 64×128, SPI/I²C, -40~70°C, 14×28mm)
ET013CR10-T(LCM, 80×160, SPI, -20~70°C, 14.04×27.95mm)
ET013PM01-TV (OLED, 128×64, CPU/SPI/I²C, -40~85°C, 34.5×23mm)
ET013SQ20-T (LCM, 240×240, CPU/SPI, -20~70°C, 26.2×29.22mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
