0.48"-5" LCD Display (1.22")

1.22 Inch Circular Display 240x204 SPI Round LCD Display For Wearable

Part No.:ET012FQV05-GT
Size:1.22″ inch
Resolution:240x204
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:38.84x38.84mm
Active Area:26.316x30.958mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-10~60°C / -20~60°C
Touch:no

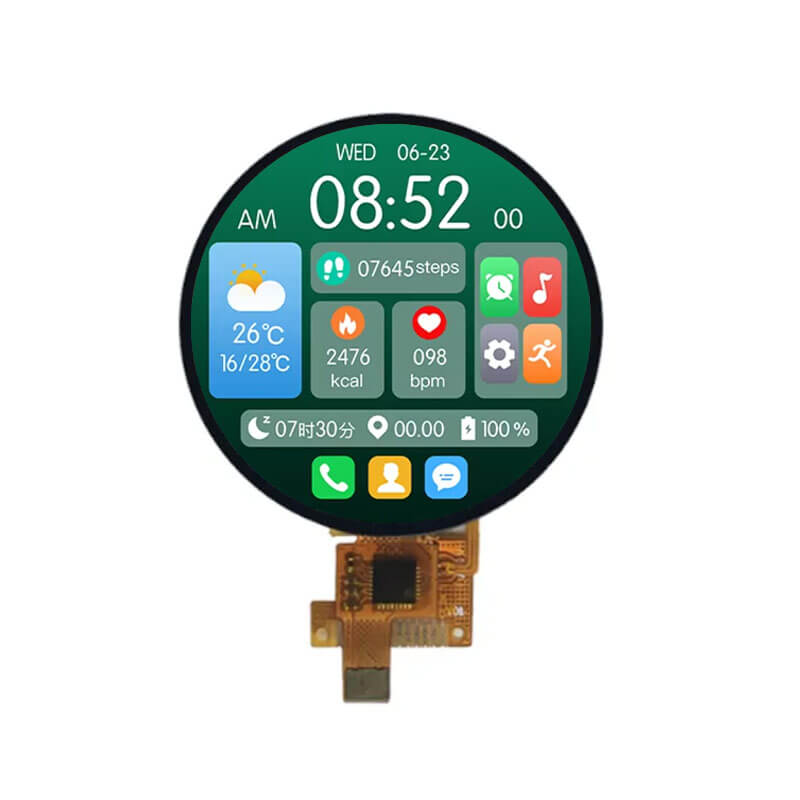

1.22 Inch Circular LCD Display Overview
ET012FQV05-GT is a 1.22-inch circular transmissive LCD display for wearable applications. It features a 240 × 204 resolution with an SPI interface, delivering 300 cd/m² typical brightness within a 26.316 × 30.958 mm active area. The display offers 80° viewing angles in all directions, a 38.84 × 38.84 mm outline, operates from –10 to 60 °C, supports storage from –20 to 60 °C, and is supplied without touch functionality.
