0.48"-5" LCD Display (1.2")

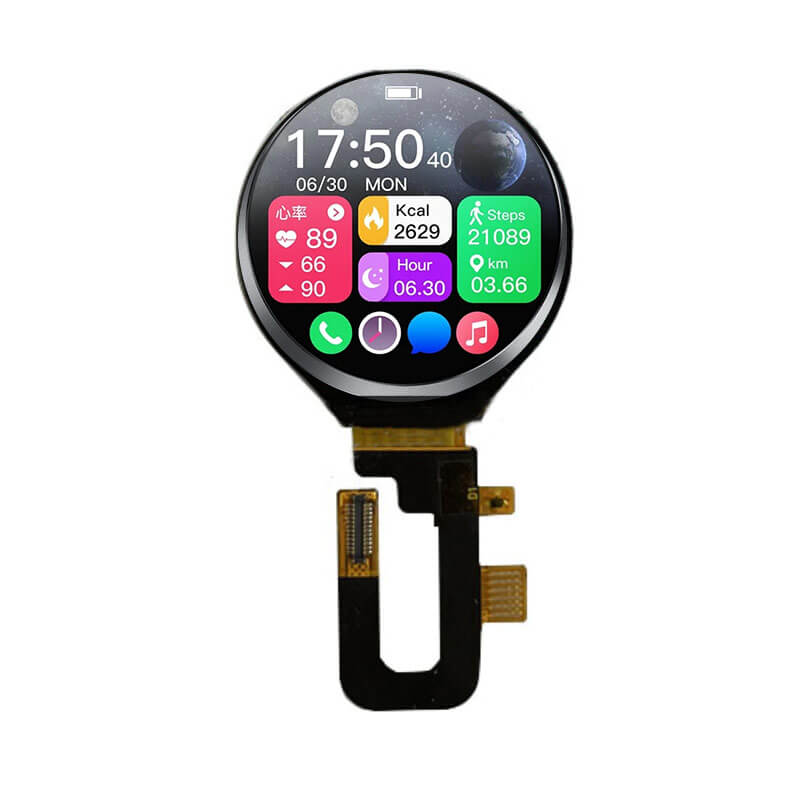

1.2 Inch Circular Display 240x240 CPU Round LCD Display For Wearable

Part No.:ET012CR01-H
Size:1.2″ inch
Resolution:240x240
Panel Interface:CPU
Display mode:Transmissive
Outline Dimension:32.56x34.31mm
Active Area:30.24x30.24mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.2 Inch Circular LCD Display Overview
ET012CR01-H is a 1.2-inch circular transmissive LCD display designed for wearable devices. It features a 240 × 240 resolution with a CPU interface, providing 400 cd/m² typical brightness within a 30.24 × 30.24 mm active area. The display offers wide 85° viewing angles, a compact 32.56 × 34.31 mm outline, operates from –20 to 70 °C, supports storage from –30 to 80 °C, and is supplied without touch functionality.
