0.48"-5" LCD Display (1.28”)

1.28 Inch Circular Display 240x240 SPI IPS 550nits High Brightness Round LCD Display For Wearable

Part No.:ET013CR10-T
Size:1.28″ inch
Resolution:240x240
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:35.6x38.1mm
Active Area:32.4x32.4mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:550(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

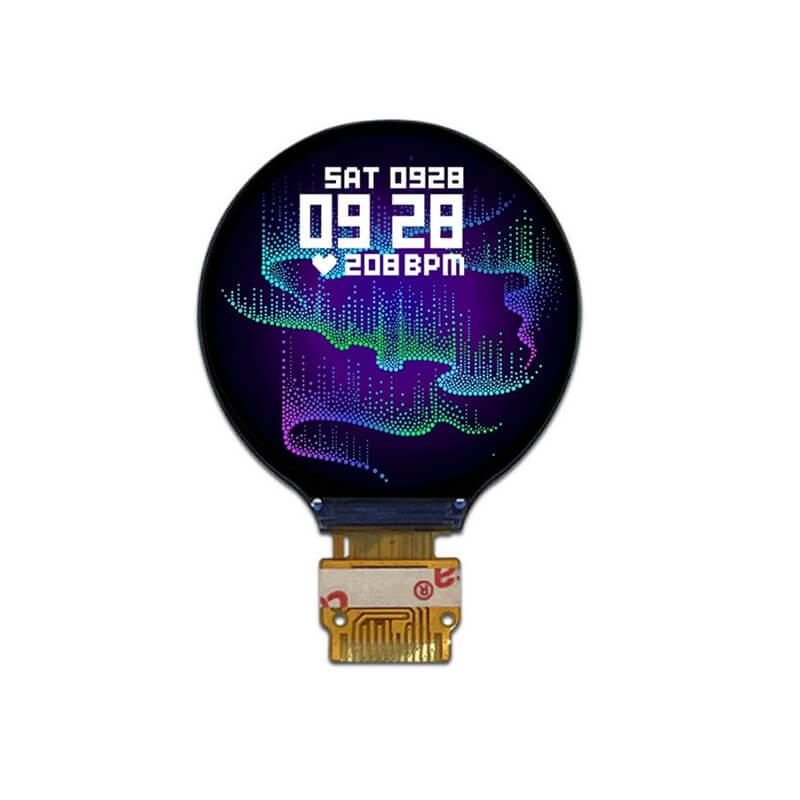

1.28 Inch Circular LCD Display Overview
ET013CR10-T is a 1.28 inch diagonal circular TFT-LCD display product, featuring IPS technology and transmissive display mode. ET013CR10-T supports 240×240 resolution with a 1:1 aspect ratio, delivering clear and vivid image performance for wearable applications. It adopts an SPI interface for efficient data transmission. The display features an active area of 32.4(W) × 32.4(H) mm and an outline dimension of 35.6(W) × 38.1(H) mm. ET013CR10-T can provide 550 cd/m² typical brightness, wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring excellent visibility from multiple directions. It operates reliably under temperatures ranging from -20°C to 70°C, with storage temperatures from -30°C to 80°C. This model is designed without touch functionality, making it an ideal round LCD display solution for wearable devices.

More 1.28 Inch Circular LCD Display For Reference
ET013CR10-T (240x240, SPI, 550nits, -20~70°C, 35.6x38.1mm)
ET013CR11-TT (240x240, SPI, 500nits, -20~70°C, 44x44mm, CTP)
