1.12 Inch Wide Temperature OLED Display 128×128 CPU RGB SPI -40°C to 70°C PMOLED Display

1.12 Inch Wide Temperature PMOLED Display Overview

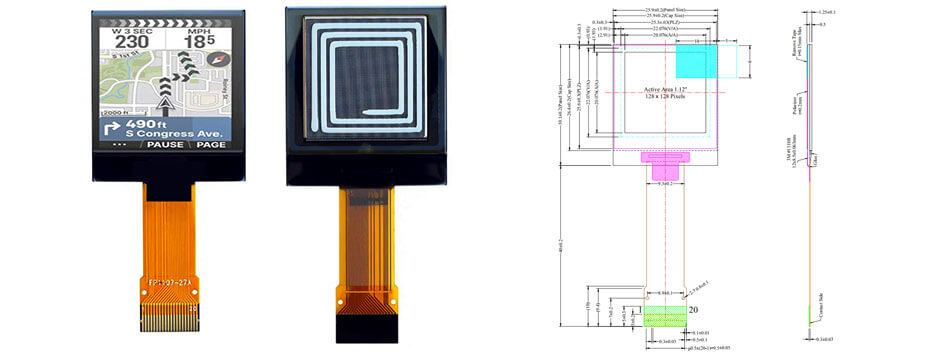

ET011WT01-J is a 1.12 inch diagonal PM-OLED display screen product, self-emitting. ET011WT01-J supports a display resolution of 128×128, whose pixels are arranged in a passive matrix structure. It features an active area of 20.076(W) × 20.076(H) mm and an outline dimension of 25.9(W) × 41.2(H) mm. The module supports multiple interfaces including CPU, RGB, and SPI, providing flexible integration for different embedded systems. It delivers a typical display brightness of 200 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from various directions. Designed for wide temperature environments, ET011WT01-J supports an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
