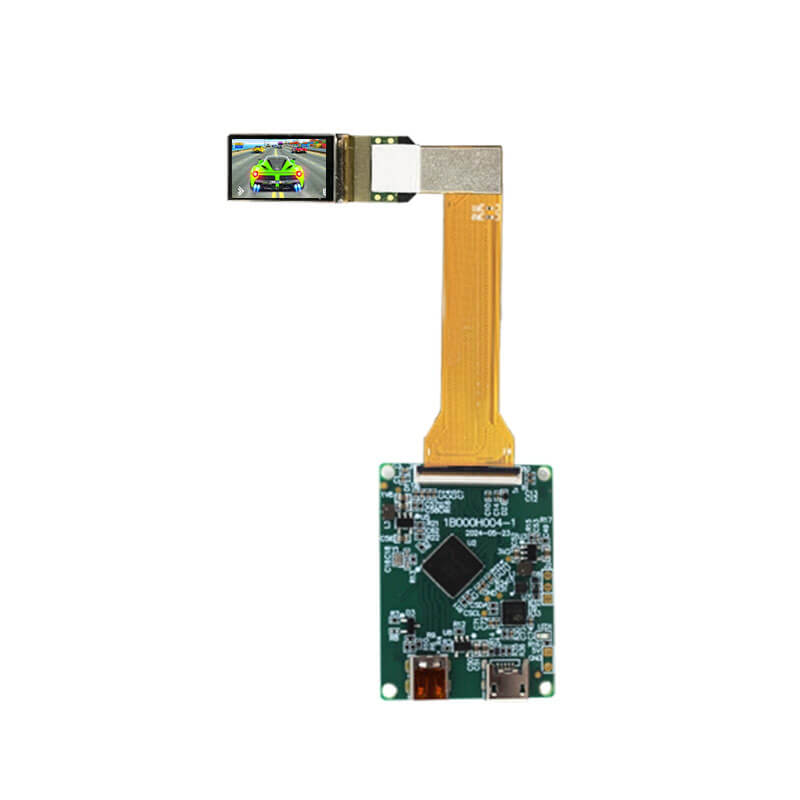

0.49 Inch Micro OLED Display 1920×1080 MIPI High Brightness 1800nits OLED Display With HDMI Driver Board For EVF AR Red Dot Sight Display Solutions Overview

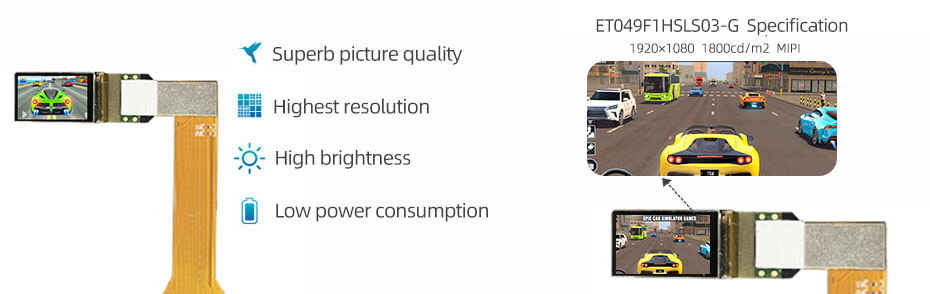

ET049F1HSLS03-G is a 0.49-inch diagonal Si-OLED display screen product featuring self-emissive technology for high contrast and vivid image performance. It supports 1920 × 1080 (FHD) resolution with a 16:9 aspect ratio (W), delivering sharp and detailed visual output for near-eye display applications. With an active area of 10.78(W) × 6.07(H) mm, this micro OLED display adopts a MIPI interface and can be equipped with an HDMI driver board for easy integration. It provides 1800 cd/m² high brightness, ensuring excellent visibility in bright ambient environments. Designed for stable operation, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C. The ET049F1HSLS03-G is widely suitable for EVF, AR smart glasses, red dot sights, thermal imaging systems, and other compact display solutions.

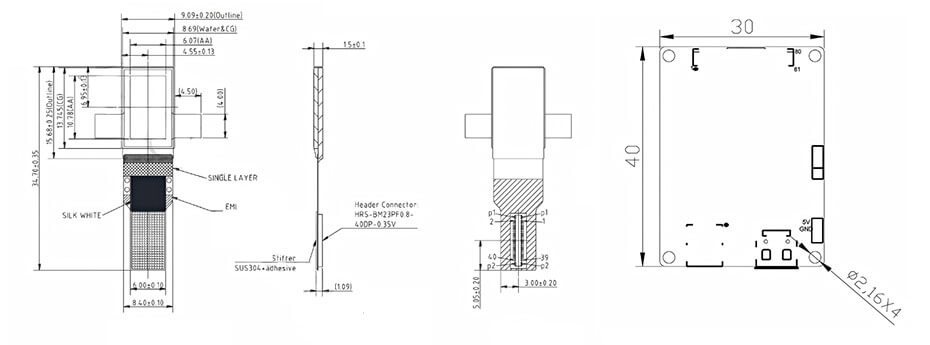

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
