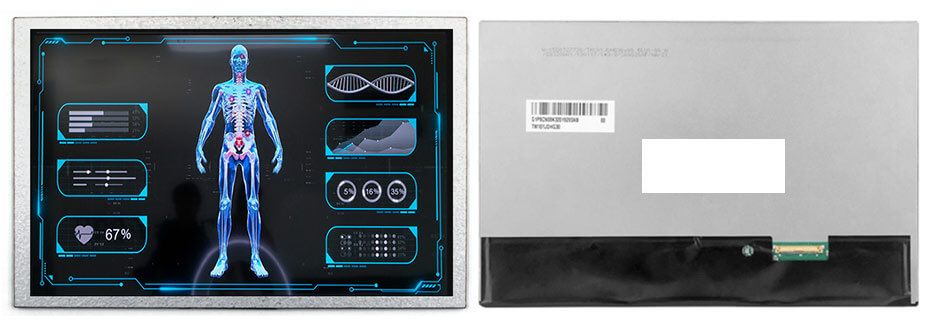

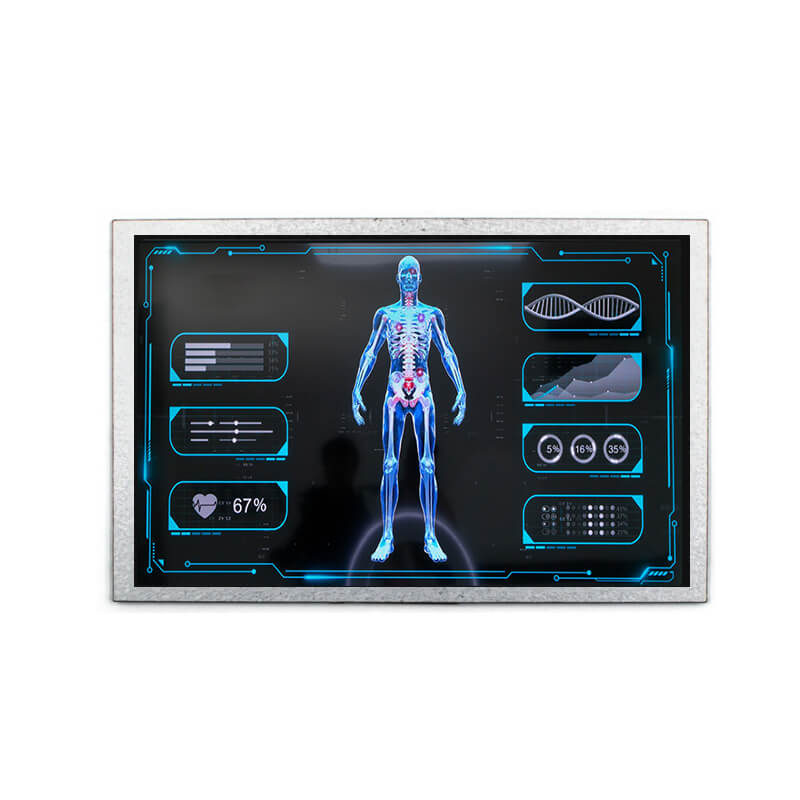

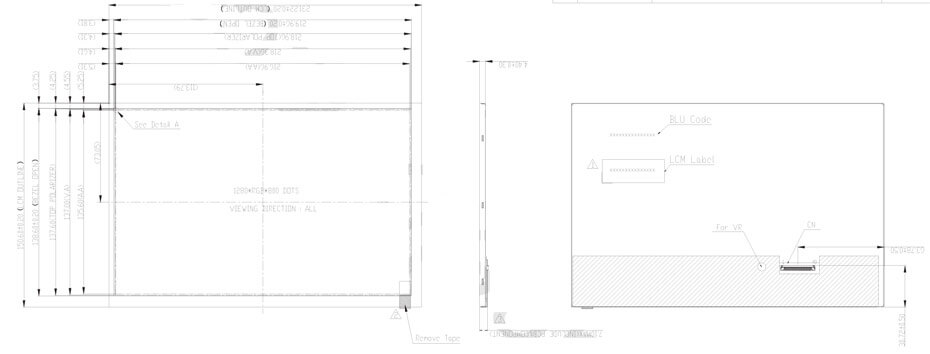

TM101JDHG30-00 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231.22(W)×150.6(H)×7.1(D) mm, viewing area size of 219.96(W)×138.6(H) mm, with surface treament of Hard coating, net weight of 280g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM101JDHG30-00 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM101JDHG30-00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 10.1 Inch Healthcare & Medical Display Solution For Reference

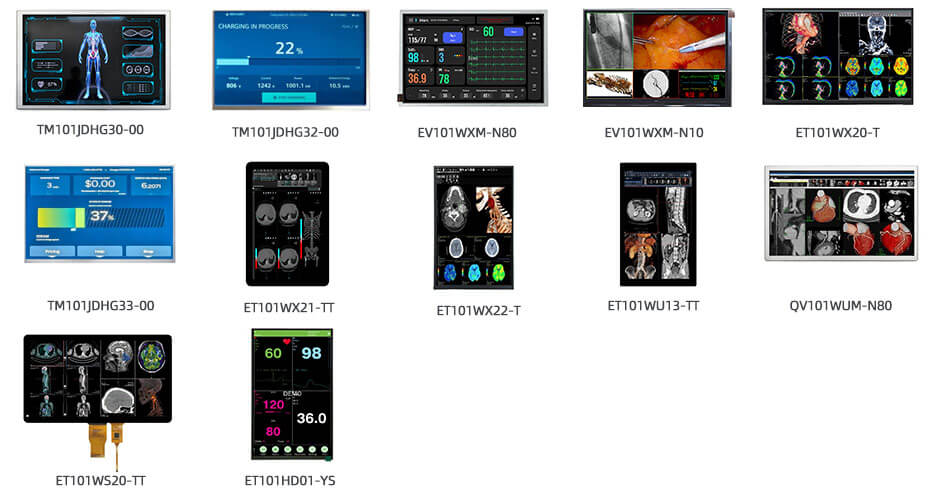

TM101JDHG30-00 (LCM, 1280×800, LVDS, -20~70°C, 231.22×150.6mm)
TM101JDHG32-00 (LCM, 1280×800, LVDS, -20~70°C, 229.8×149mm)
EV101WXM-N80 (LCM, 1280×800, LVDS, -20~70°C, 233.2×152.9mm)
EV101WXM-N10 (LCM, 1280×800, LVDS, -20~70°C, 228.6×149.2mm)
ET101WX20-T (LCM, 1280×800, LVDS, -30~80°C, 229.1×148.9mm)
TM101JDHG33-00 (LCM, 1280×800, LVDS, -30~80°C, 229.8×149mm)
ET101WX21-TT (LCM, 800×1280, MIPI, -20~70°C, 166.5×249.7mm)
ET101WX22-T (LCM, 800×1280, MIPI, -20~70°C, 143×228.6mm)
ET101WU13-TT (LCM, 1200×1920, MIPI, -10~60°C, 155.9×250mm)
QV101WUM-N80 (LCM, 1920×1200, LVDS, -20~70°C, 229.45×149.22mm)
ET101WS20-TT (LCM, 1024×600, TTL, -20~70°C, 252×150mm)
ET101WSM-N90 (LCM, 1024×600, LVDS, 0~60°C, 235.3×143mm)
ET101HD01-YS (LCM, 720×1280, MIPI, -20~70°C, 142.9×234.9mm)
