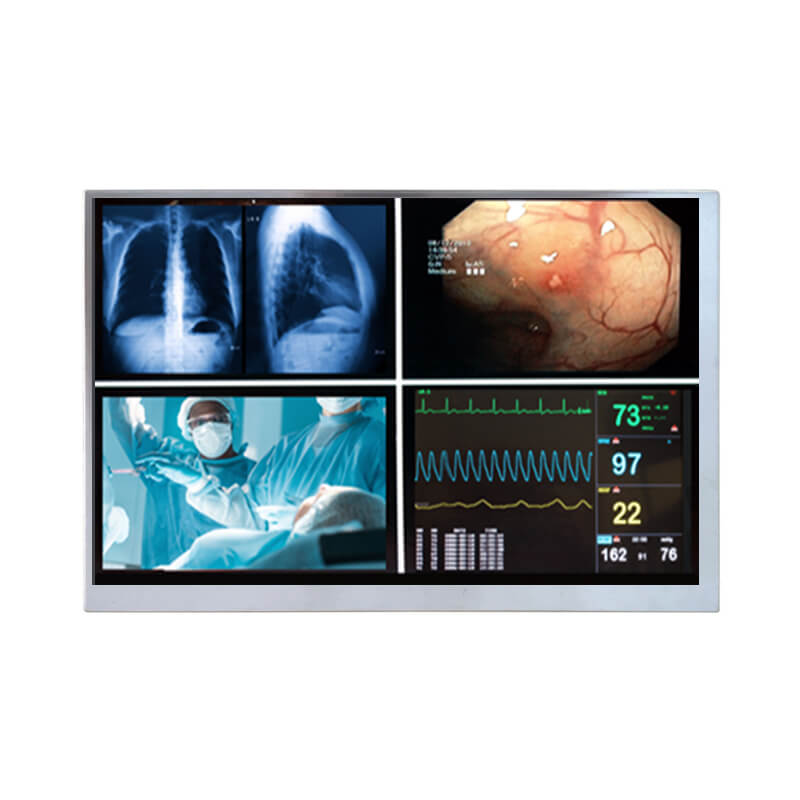

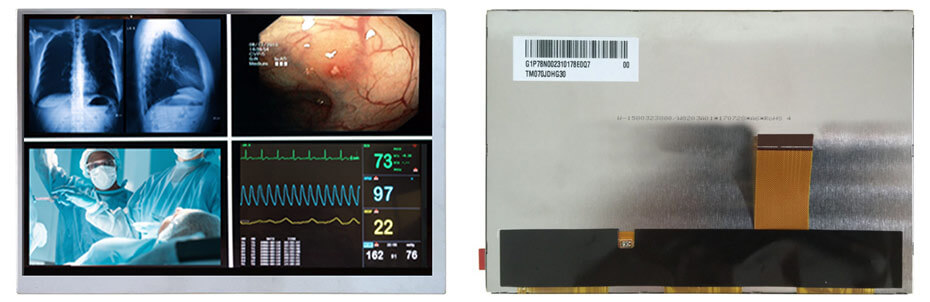

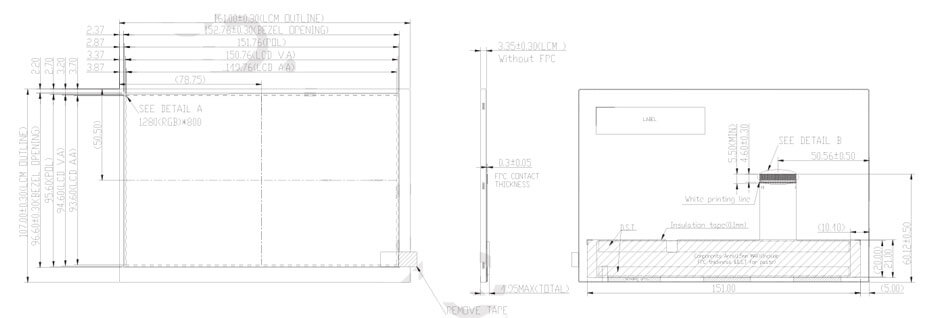

TM070JDHG30-00 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 161(W)×107(H)×4.95(D) mm, viewing area size of 152.76(W)×96.6(H) mm, with surface treament of Hard coating (3H), net weight of 120g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM070JDHG30-00 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM070JDHG30-00 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

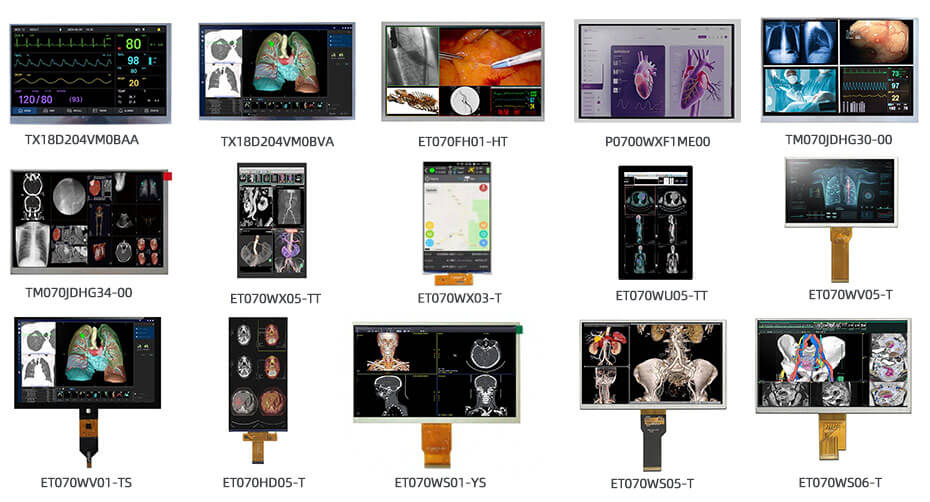

More 7 Inch Healthcare & Medical Display Solution For Reference
TX18D204VM0BAA (LCM, 1920×1080, LVDS, -20~70°C, 169×103mm)
TX18D204VM0BVA (LCM, 1920×1080, LVDS, -20~70°C, 178.8×115mm)
ET070FH01-HT (LCM, 1920×1080, MIPI, -20~70°C, 164.19×97.87mm)
P0700WXF1ME00 (LCM, 1280×800, LVDS, -20~70°C, 161×107mm)
TM070JDHG30-00 (LCM, 1280×800, LVDS, -20~70°C, 161×107mm)
TM070JDHG34-00 (LCM, 1280×800, LVDS, -20~70°C, 161×107mm)
ET070WX05-TT (LCM, 800×1280, MIPI, -20~70°C, 106.04×175.28mm)
ET070WX03-T (LCM, 800×1280, MIPI, -20~70°C, 99.65×160.85mm)
ET070WU05-TT (LCM, 1200×1920, MIPI, -20~70°C, 115×176.7mm)
ET070WV05-T (LCM, 800×480, TTL, -20~70°C, 164.9×100mm)
ET070WV01-TS (LCM, 800×480, TTL, -30~85°C, 171×110mm)
ET070HD05-T (LCM, 720×1440, MIPI, -20~70°C, 80.21×162.34mm)
ET070WS01-YS (LCM, 1024×600, TTL, -30~85°C, 164.9×100mm)
ET070WS05-T (LCM, 1024×600, LVDS, -20~70°C, 164.9×100mm)
ET070WS06-T (LCM, 1024×600, LVDS, -30~80°C, 164.9×100mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
