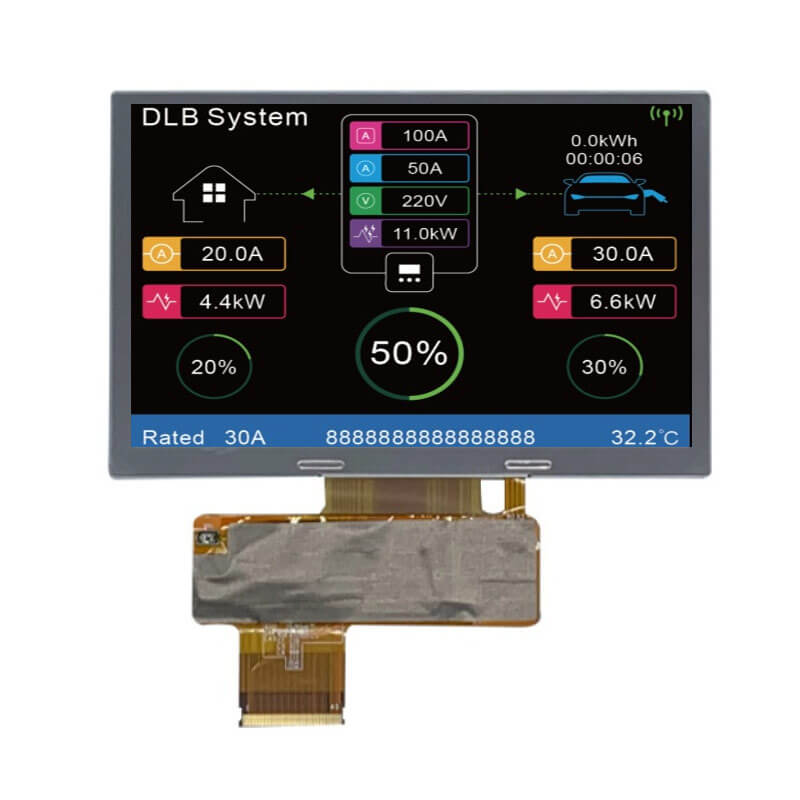

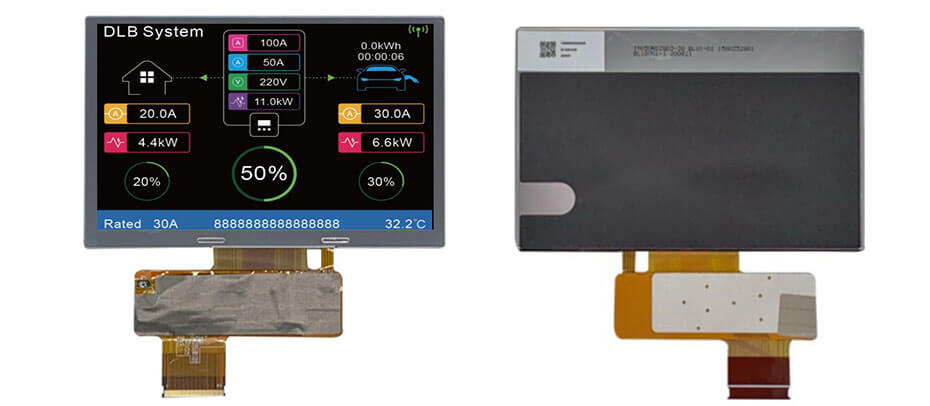

TM050RDZG03-30 5 Inch TFT LCD Display 800×480 Parallel RGB High Brightness 1000nits Wide Temperature LCD Display For EV Charger

TM050RDZG03-30 5 Inch TFT LCD Display 800×480 Parallel RGB High Brightness 1000nits Wide Temperature LCD Display For EV Charger Video

TM050RDZG03-30 5 Inch TFT LCD Display 800×480 Parallel RGB High Brightness 1000nits Wide Temperature LCD Display For EV Charger Overview

TM050RDZG03-30 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 120.7(W)×77.8(H)×5.9(D) mm, viewing area size of 111.1(W)×67.9(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM050RDZG03-30 can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/30 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. TM050RDZG03-30 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

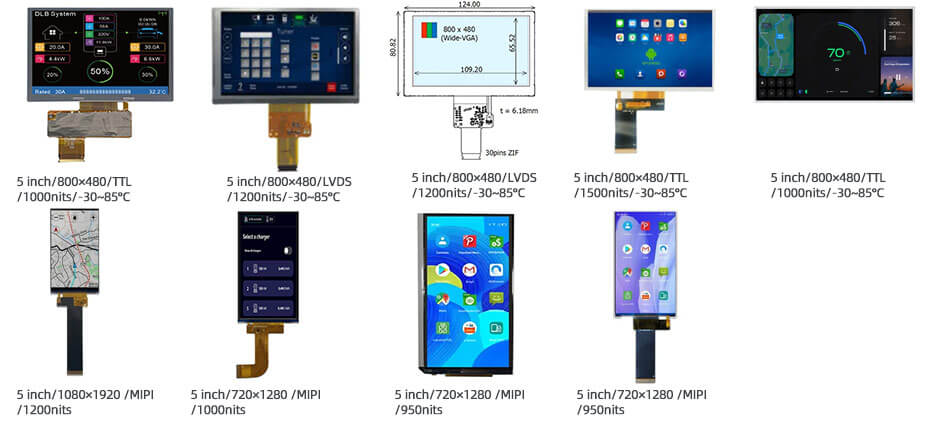

More 5 Inch EV Charger Display For Reference
TM050RDZG03-30 (800×480, TTL, 1000nits, -30~85°C, 120.7×77.8mm)
COM50H5N15ULC (800×480, LVDS, 1200nits, -30~85°C, 124×80.82mm)
COM50H5N25ULC (800×480, LVDS, 1200nits, -30~85°C, 124×80.82mm)
ET050WV06-T (800×480, TTL, 1500nits, -30~85°C, 120.7×75.8mm)
A0500WVF2MAAA (800×480, TTL, 1000nits, -30~85°C, 121.3×78.8mm)
ET050FH10-T (1080×1920, MIPI, 1200nits, -20~70°C, 64×118mm)
ET050FH01-X (720×1280, MIPI, 1000nits, -20~70°C, 66.4×120.05mm)
ET050HD01-A (720×1280, MIPI, 950nits, -20~70°C, 70.01×116.29mm)
ET050FW0-H (480×854, TTL, 1000nits, -20~70°C, 66.4×120.05mm)

Youritech EV Charger Display -Global Leading Touchscreen Design, Integration and Manufacturing

-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support

Engineered Hardware for EV Charger Displays

High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.

Applications For EV Charger Display

-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations

Youritech EV Charger Display Production and Manufacturing
