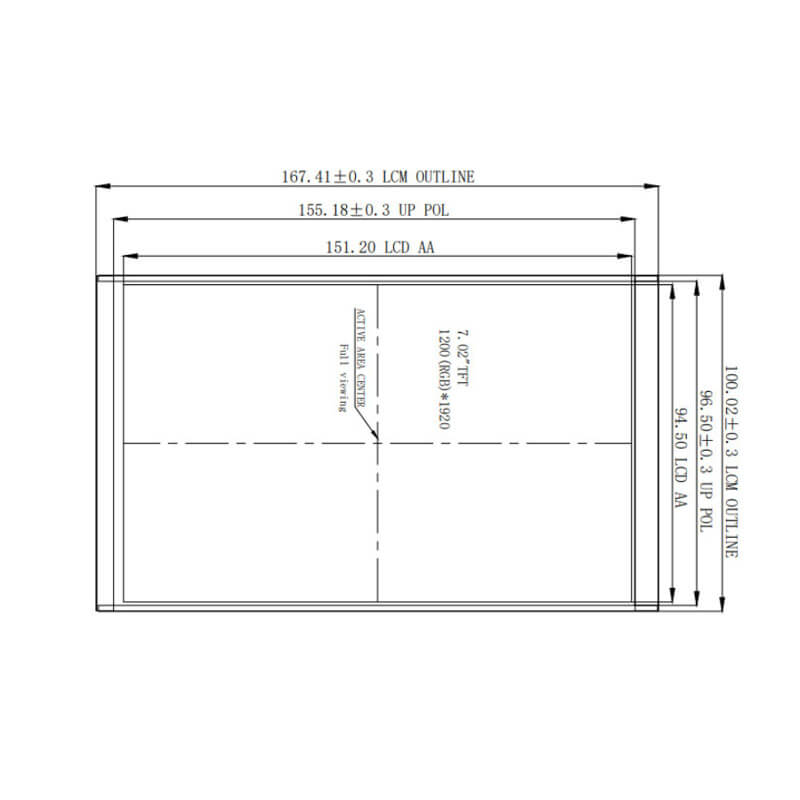

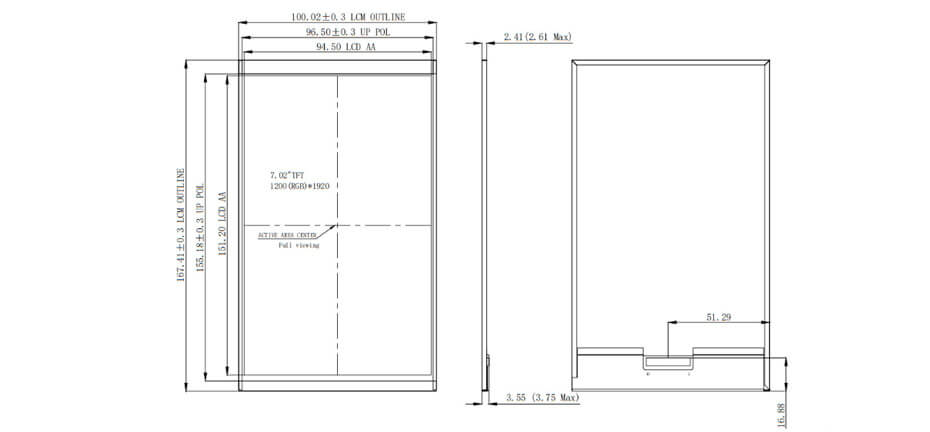

ET070WU01-R is a 7.0-inch TFT LCD display module featuring a 1920×1200 (WUXGA) resolution, MIPI interface, and transmissive display mode. It offers an active area of 94.5(W) × 151.2(H) mm and an outline dimension of 100.02(W) × 167.41(H) × 2.41(D) mm. With an ultra-high brightness of 1500 cd/m² and a wide viewing angle of 80/80/80/80 (L/R/U/D), the display delivers excellent sunlight readability and consistent image quality. Designed for demanding outdoor applications, it supports an operating temperature range of -20°C to 80°C, making it an ideal display solution for drone controllers, UAV ground stations, and other rugged industrial devices.

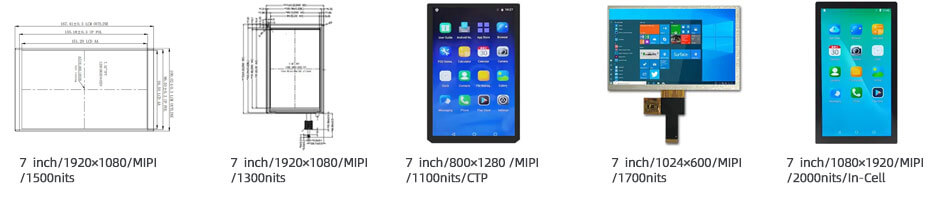

More 7 Inch EV Charger Display For Reference
ET070WU01-R (1920x1200, MIPI, 1500nits, -20~80°C, 100.02×167.41×2.41mm)
ET070WU01-TT (1920x1200, MIPI, 1300nits, -20~70°C, 105.18×163.34mm)
ET070WX10-TT (800×1280, MIPI, 1100nits, -20~70°C, 108.1×164.2mm, CTP)
ET070HD05-K (1024×600, MIPI, 1700nits, -20~70°C, 165×100mm)
ET070FH01-RT (1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm, In-Cell)
Sunlight Readability
-High brightness levels (typically 1000+ nits) ensure flight data, maps, and video feeds remain visible under direct sunlight.
Enhanced Contrast Ratio
-Delivers sharp image details and improved readability in varying lighting conditions.
Anti-Glare & Anti-Reflective Technology
-Reduces screen reflections and glare for a clearer viewing experience.
Wide Viewing Angles
-Maintains consistent image quality when viewed from different positions during field operations.
Fast Response Time
-Supports real-time video transmission and responsive control interfaces for FPV and UAV monitoring.
Accurate Color Reproduction
-Provides true-to-life images for aerial photography, surveillance, and inspection tasks.
Low Power Consumption
-Optimizes battery life for portable drone controllers and ground control stations.
Reliable Outdoor Performance
-Designed to operate consistently in challenging environments, including bright sunlight, temperature fluctuations, and demanding field conditions.
High Brightness
-Clear visibility under direct sunlight.
High Resolution
-Sharp and detailed image display.
Wide Viewing Angle
-Consistent image quality from any angle.
Fast Response Time
-Smooth real-time video and data monitoring.
Low Power Consumption
-Extended battery life for portable devices.
Rugged Reliability
-Resistant to vibration, shock, and harsh environments.
Wide Temperature Operation
-Stable performance in extreme conditions.
Touchscreen Integration
-Responsive and intuitive user interaction.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
