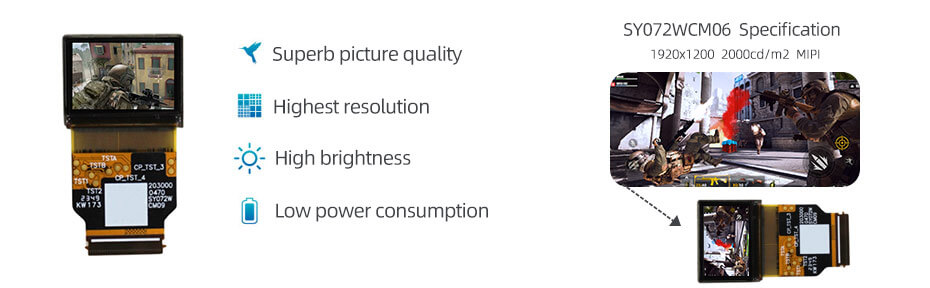

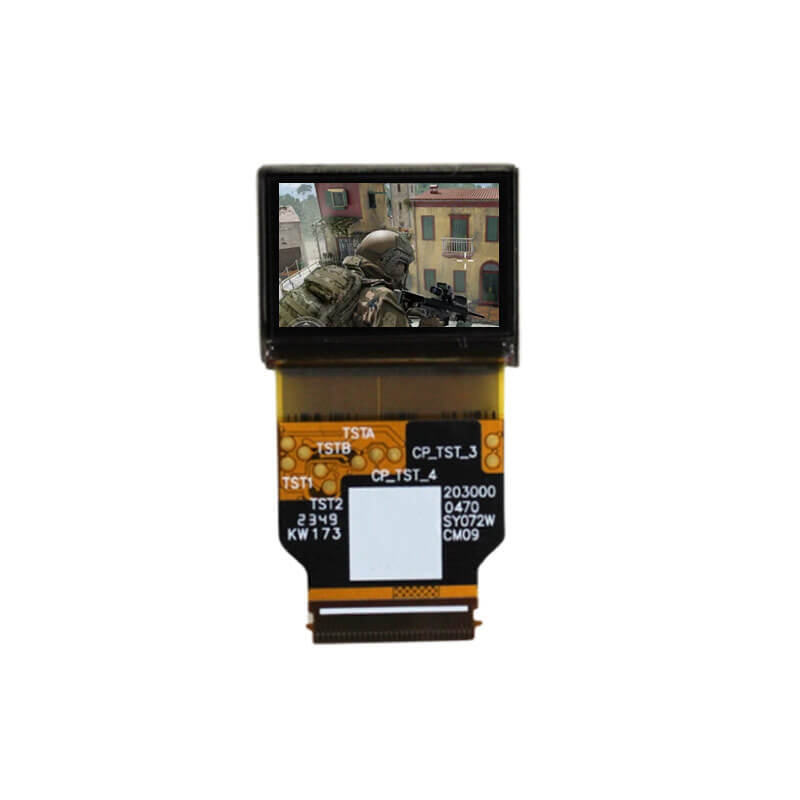

SY072WCM06 0.72 Inch Micro OLED Display 1920×1200 MIPI 2000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY072WCM06 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB π type, it's pixel density is 3135 PPI. As for mechanical detail, it features active area of 15.552(W)×9.72(H) mm, outline size of 19.97(W)×15.5(H)×1.88(D) mm. SY072WCM06 can provides 2000 cd/m² display brightness 100000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 89% (DCI-P3). This product emiting itself . SY072WCM06 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 61 pins FPC with power supply voltage of 1.98/6.5/-5.5V (Max.)(VDDI/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 70Hz.

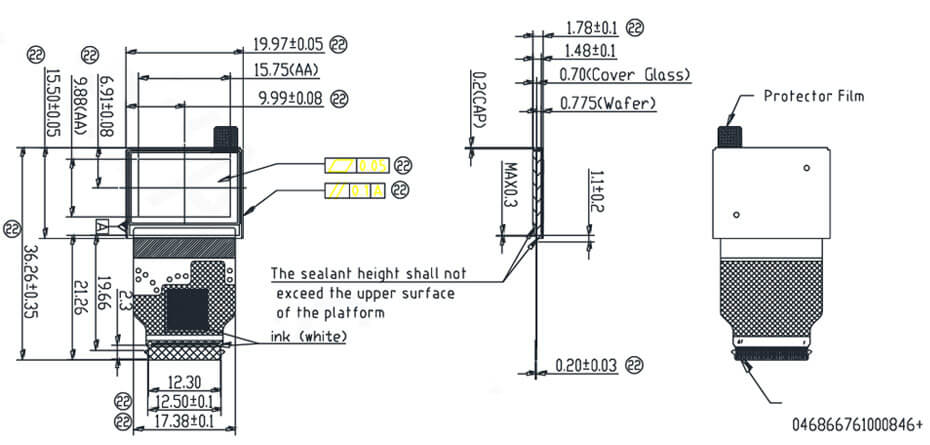

SY072WCM06 0.72 Inch Micro OLED Display 1920×1200 MIPI 2000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

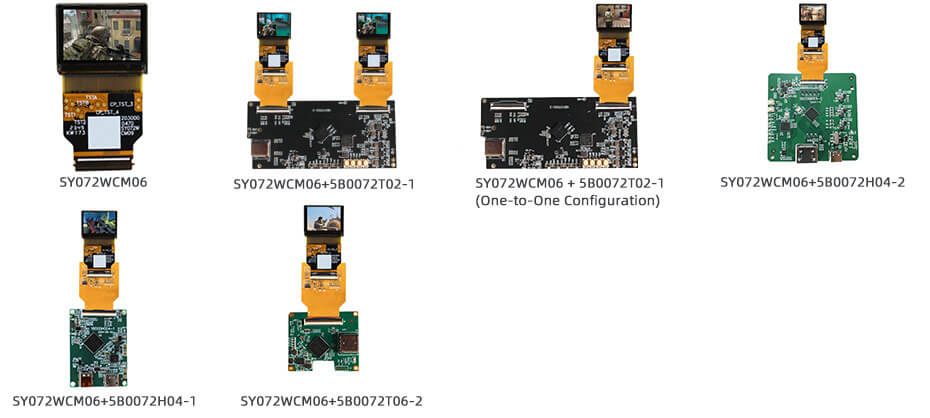

SY072WCM06 0.72 Inch Micro OLED Display Solution For Reference
SY072WCM06
SY072WCM06+5B0072T02-1
SY072WCM06 + 5B0072T02-1 (One-to-One Configuration)
SY072WCM06+5B0072H04-2
SY072WCM06+5B0072H04-1
SY072WCM06+5B0072T06-2

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
