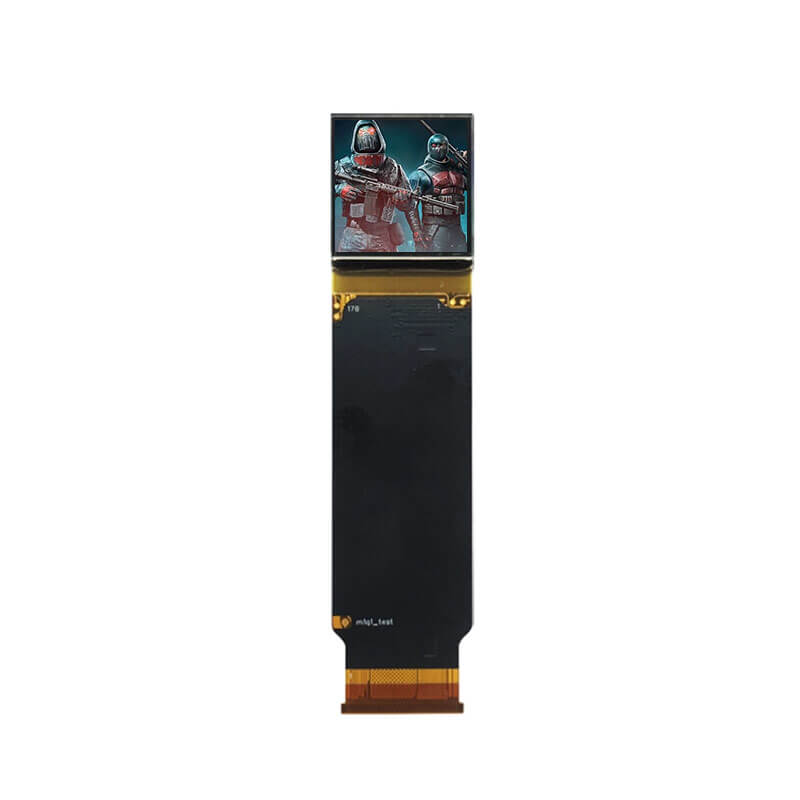

SY062WAM01 0.62 Inch Micro OLED Display 1728×1368 MIPI 1800nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Overview

SY062WAM01 supports display 1728(RGB)×1368 with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB π type, it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 12.442(W)×9.85(H) mm, outline size of 23.19(W)×23.85(H)×2.7(D) mm. SY062WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product emiting itself . SY062WAM01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 81 pins FPC with power supply voltage of 1.2/1.8/6.3/-4.5V (Typ.)(VDD/VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.

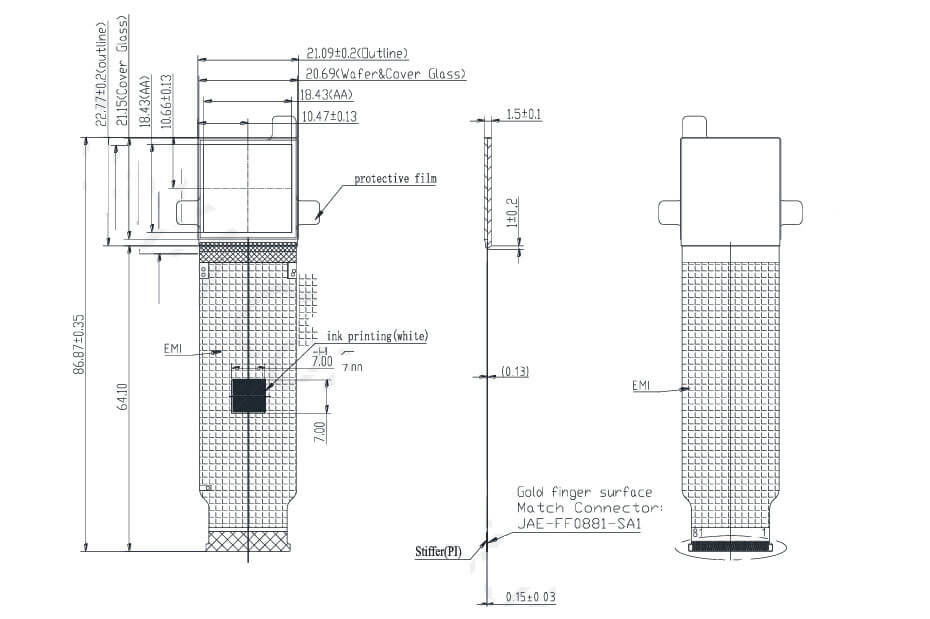

SY062WAM01 0.62 Inch Micro OLED Display 1728×1368 MIPI 1800nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
